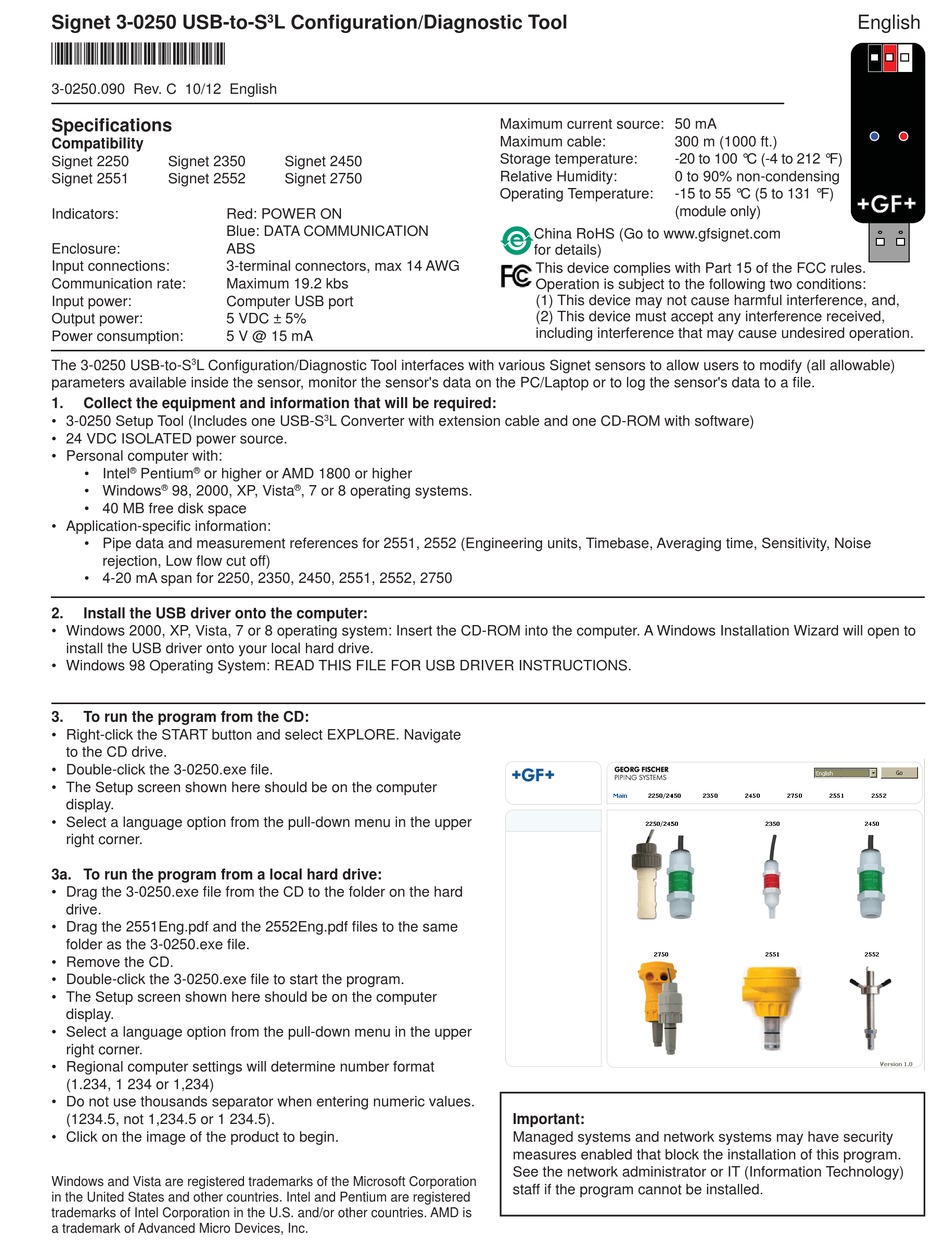

GF Signet 3-0250 Manual

Signet 3-0250 USB-to-S
*3-0250.090*
3-0250.090 Rev. C 10/12 English
Specifi cations
Compatibility
Signet 2250 Signet 2350
Signet 2551 Signet 2552
Indicators: Red: POWER ON
Blue: DATA COMMUNICATION
Enclosure: ABS
Input connections: 3-terminal connectors, max 14 AWG
Communication rate: Maximum 19.2 kbs
Input power: Computer USB port
Output power: 5 VDC ± 5%
Power consumption: 5 V @ 15 mA
3
The 3-0250 USB-to-S L Confi guration/Diagnostic Tool interfaces with various Signet sensors to allow users to modify (all allowable)
parameters available inside the sensor, monitor the sensor's data on the PC/Laptop or to log the sensor's data to a fi le.
1. Collect the equipment and information that will be required:
• 3-0250 Setup Tool (Includes one USB-S
• 24 VDC ISOLATED power source.
• Personal computer with:
• Intel ® Pentium ® or higher or AMD 1800 or higher
• Windows ® 98, 2000, XP, Vista
• 40 MB free disk space
• Application-specifi c information:
• Pipe data and measurement references for 2551, 2552 (Engineering units, Timebase, Averaging time, Sensitivity, Noise
rejection, Low fl ow cut off)
• 4-20 mA span for 2250, 2350, 2450, 2551, 2552, 2750
2. Install the USB driver onto the computer:
• Windows 2000, XP, Vista, 7 or 8 operating system: Insert the CD-ROM into the computer. A Windows Installation Wizard will open to
install the USB driver onto your local hard drive.
• Windows 98 Operating System: READ THIS FILE FOR USB DRIVER INSTRUCTIONS.
3. To run the program from the CD:
• Right-click the START button and select EXPLORE. Navigate
to the CD drive.
• Double-click the 3-0250.exe fi le.
• The Setup screen shown here should be on the computer
display.
• Select a language option from the pull-down menu in the upper
right corner.
3a. To run the program from a local hard drive:
• Drag the 3-0250.exe fi le from the CD to the folder on the hard
drive.
• Drag the 2551Eng.pdf and the 2552Eng.pdf fi les to the same
folder as the 3-0250.exe fi le.
• Remove the CD.
• Double-click the 3-0250.exe fi le to start the program.
• The Setup screen shown here should be on the computer
display.
• Select a language option from the pull-down menu in the upper
right corner.
• Regional computer settings will determine number format
(1.234, 1 234 or 1,234)
• Do not use thousands separator when entering numeric values.
(1234.5, not 1,234.5 or 1 234.5).
• Click on the image of the product to begin.
Windows and Vista are registered trademarks of the Microsoft Corporation
in the United States and other countries. Intel and Pentium are registered
trademarks of Intel Corporation in the U.S. and/or other countries. AMD is
a trademark of Advanced Micro Devices, Inc.
3
L Confi guration/Diagnostic Tool
Signet 2450
Signet 2750
3
L Converter with extension cable and one CD-ROM with software)
® , 7 or 8 operating systems.
Maximum current source: 50 mA
Maximum cable: 300 m (1000 ft.)
Storage temperature: -20 to 100 °C (-4 to 212 °F)
Relative Humidity: 0 to 90% non-condensing
Operating Temperature: -15 to 55 °C (5 to 131 °F)
(module only)
China RoHS (Go to www.gfsignet.com
for details)
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and,
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Important:
Managed systems and network systems may have security
measures enabled that block the installation of this program.
See the network administrator or IT (Information Technology)
staff if the program cannot be installed.
English
