- Page 1 ASHIL AheadX Simulator Hardware In the Loop Installation Manual V1.0...
- Page 2 Version Information Date Version Author Amendment Record 2018/01/18 V1.0 AheadX Creat the document ©2016 AheadX 保留所有权利。...
-
Page 3: Copyright Statement
If a quotation or publication is quoted, it should be noted that the provenance is AheadX. And this manual cannot be referenced, abridged or modified. -
Page 4: Disclaimers
18. In the use of the hardware or software products, personal injury, property damage, etc. (including direct or indirect injury) caused by the following reasons, AheadX does not assume liability for compensation: 1. The controller causes damage in case of poor health or mental condition such as alcohol, drug abuse, narcotic drugs, dizziness, fatigue, nausea, etc. -
Page 5: Reading Tips
The dimensions and weights listed in this manual are initial design sizes or repeated measurements. All the documents have been carefully checked. The relevant information of the products is subject to the latest release version. ©2016 AheadX 保留所有权利。... - Page 6 The company reserves the right to change the specifications of the products, and without further notice. Please pay attention to the official website of AheadX. is registered by AheadX Tech (Beijing) Co., Ltd. ©2016 AheadX 保留所有权利。...
-
Page 7: Table Of Contents
4.2 Software installation and configuration ................7 4.2.1 ASHIL Console software installation ................7 4.2.2 AheadX Space and AheadX Master installation and activation ....... 10 4.2.2.1 AheadX Space installation and activation ............10 4.2.2.2 AheadX Master installation and activation ............11 Firmware Update ......................... -
Page 8: Product Introduction

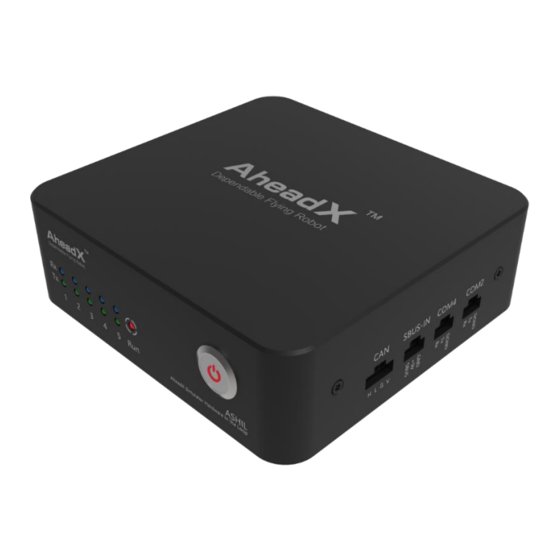

1 Product introduction ASHIL(AheadX Simulator Hardware In the Loop) is a complete set of system for flight simulation, enabling manual and autonomous flight simulations, it can be widely used in UAV training, teaching and other occasions The system is equipped with excellent flight simulation platform, Flight maps have airports around the world, with high picture quality, rich details, it can simulate a variety of weather conditions, suitable for testing various aircraft performance (such as wind resistance, etc). -
Page 9: Features And Applications
university application: unmanned aerial vehicle (uav) teaching, through simulation training to deepen the students’ understanding of the uav principle and improve their learning interests. training institutions: visual and beyond visual flight training can rapidly improve the students' flight ability. ©2016 AheadX 保留所有权利。... -
Page 10: Technical Parameters
3 Technical Parameters 3.1 Reference index Project Parameter REMARK Weight 430g Size 134*127.5*42mm DC 4.5-28V Working Temperature -10-65℃ Power Interface DC plug（5.5*2.1mm） Equipment Interface Serial Port DB9，3pin molex，4pin molex 3.2 Size View ©2016 AheadX 保留所有权利。... -
Page 11: Plug Defination
COM1 RS232 serial port, connected by RS232-to-USB wire COM2 RS232 serial port COM4 RS232 serial port COM5 RS232 serial port, connected by RS232-to-USB wire SBUSIN connected to the matching remote-controller or SBUS receiver, receive signals CAN Port ©2016 AheadX 保留所有权利。... -
Page 12: Indicator Light
3.4 Indicator Light 说明 PORT Blink blue when receiving Data Blink green when transmitting Data Equipment working condition indicator ©2016 AheadX 保留所有权利。... -
Page 13: Ashil System Installation
4.1 Access Device Equipment’s COM1 (right side of picture) is connected to the AheadX Space ground station, and COM5 to ASHIL Console software. It is recommended to use Z-TEC 232-to-USB serial cable which you need to install the matching drive. -
Page 14: Software Installation And Configuration
Please install the Xplane platform before installing the console software, otherwise installation will fail. Double click the ASHIL Console setup.exe to run the installation progra m, and complete the installation by the guidance. The location of exe is at the root index of XPlane, it’s not on the desktop where the shortcut is. - Page 15 After installation, run the console software. The main interface is shown as follows: Connect Xplane Connect Ashil Open Xplane Status settings instruction: Engine: Click to make Fixed-wing engine damaged (only for oil motor), reopen the model to escape from the damage(for fixed-wing and quad-plane).
- Page 16 At this time, the Xplane main interface will also display the AheadX flag. If in the use process, Xplane software’s installation location was changed, please open the ASHIL console software, and click the button in the red box, then choose the new installation location.
-
Page 17: Aheadx Space And Aheadx Master Installation And Activation
4.2.2 AheadX Space and AheadX Master installation and activation 4.2.2.1 AheadX Space installation and activation Double click to run ‘AheadX Space Setup exe’ installer, execute installation wizard, (recommend not to install at system disk). After installation, open the software and the main interface is as follow: Search and select the flight control communication serial port (correspond to equipment’s... -
Page 18: Aheadx Master Installation And Activation
(recommend not to install at system disk), after the installation is complete and running for the first time, file “AheadX.sn” will be generated at the root directory, please contact the AheadX Inc. customer service to obtain the key.to activate the software. -
Page 19: Firmware Update
“ASHIL Update Tool Setup .exe”, Install the upgrade software according to the wizard. The main interface is as follow Connect ASHIL COM1 to the computer, open the serial port in the red square as the picture above, read the information after the success of connection. Select the stable version or the developed version and click “Get... - Page 20 This upgrade tool is only used to repair after the failure of the upgrade. ©2016 AheadX 保留所有权利。...
-
Page 21: After-Sales Service Policy
Failure caused by the quality problem of the commodity, it can be repaired free, and it will cause impact, burnout, water immersion, freezing, mechanical damage and breakage caused by the human quality problems. The time limit for free software upgrading: life long free. ©2016 AheadX 保留所有权利。... - Page 22 The cost of mailing should be provided by users during the warranty period ( Our company will bear the cost of the return). ©2016 AheadX 保留所有权利。...
- Page 23 The above principle of exchange and warranty must provide effective warranty documents while enjoying the service, otherwise it will not be dealt with. The ultimate interpretation of this warranty is reserved by AheadX. ©2016 AheadX 保留所有权利。...
