GORE TE Connectivity CeeLok FAS-T Termination Instructions

GORE Aerospace
®
Ethernet Cables
TE Connectivity
The following procedures are based on Gore's best practices
for terminating GORE Aerospace Ethernet Cables with the TE
®
Connectivity CeeLok FAS-T Connector System for both plug and
® ®
receptacle versions. These procedures should be used as a guide
in conjunction with current connector manufacturing instructions.

Preparing the Cable and Parts

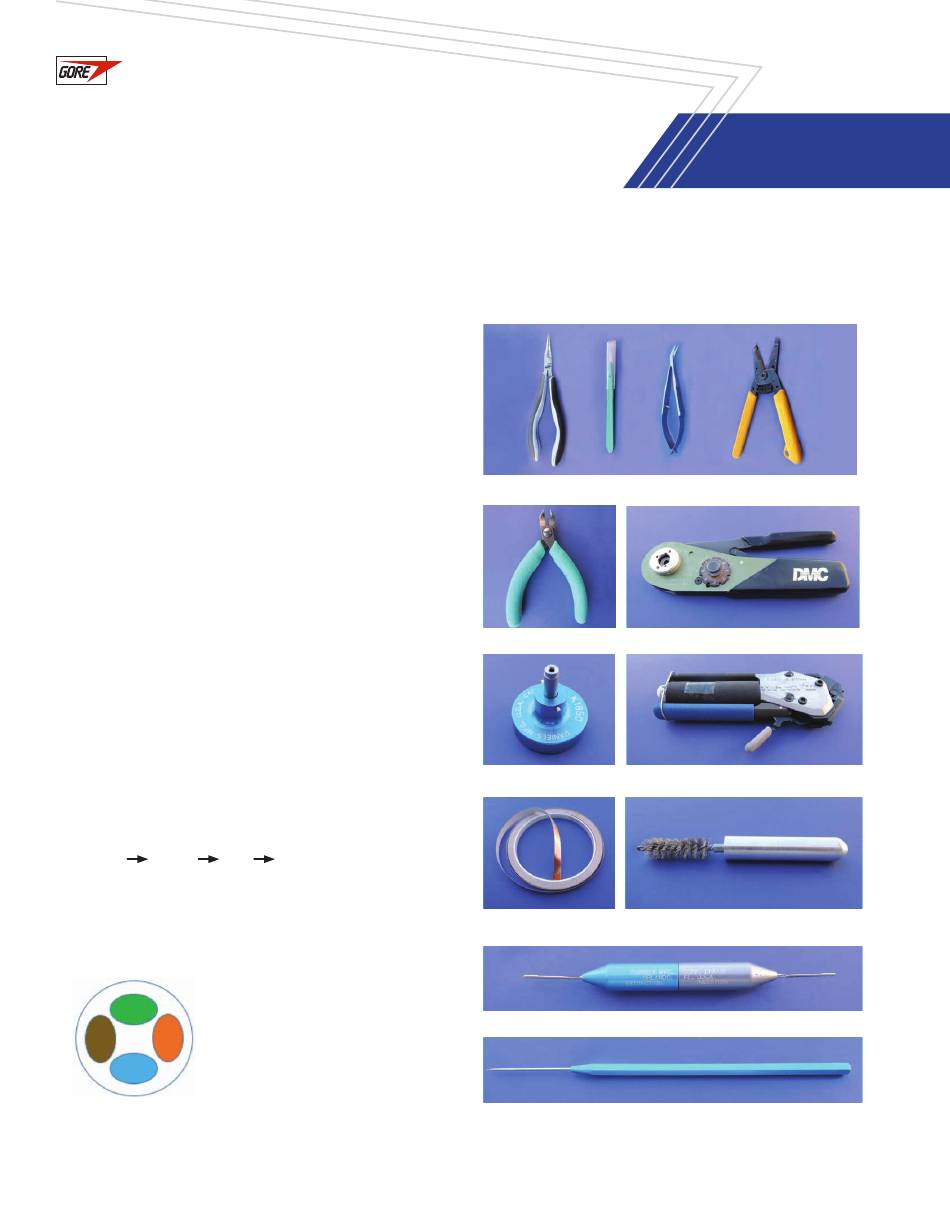

1. Gather the tools and materials required for assembly and
termination (Figures 1–9).
2. Verify that you have the correct parts for your assembly by
checking the part numbers for the connectors and the GORE
Aerospace Ethernet Cables listed on drawing DDA0238.
3. Cut two 1.0-inch pieces of 0.50-inch thin-walled adhesive-
lined tubing (TAT).
4. Cut the cable to the desired assembly length minus 1.9
centimeters (cm) to allow for length of the connectors (i.e.,
1.3 cm for the plug connector and 0.6 cm for the receptacle
connector).
5. Print any labels required by the end-user, and slide the center
label onto the cable.
6. To identify the end for the receptacle connector, place a piece
of tape on the end in which the pairs rotate clockwise in order
of green orange blue
Figure 10: Pairs configuration
at receptacle end
CeeLok FAS-T
®
®
brown (Figure 10).
Connector System
®
Figure 1: Needle nose pliers, scalpel, tweezer scissors, and hand strippers
Figure 2: Cutters Figure 3: Crimpers (M22520/2-01)
Figure 4: Positioner (K1850) Figure 5: Clamp tool (Tie-Dex
Figure 6: Copper foil tape Figure 7: Braid brush
1
(3M-3313)
Figure 8: Insertion/extraction tool (DHK 696)
Figure 9: Probe/pick
1 Gore recommends using copper foil tape instead of polyimide tape during termination
procedures because copper tape is easier to use and improves signal integrity.
