Summary of Contents for adeptus 88031

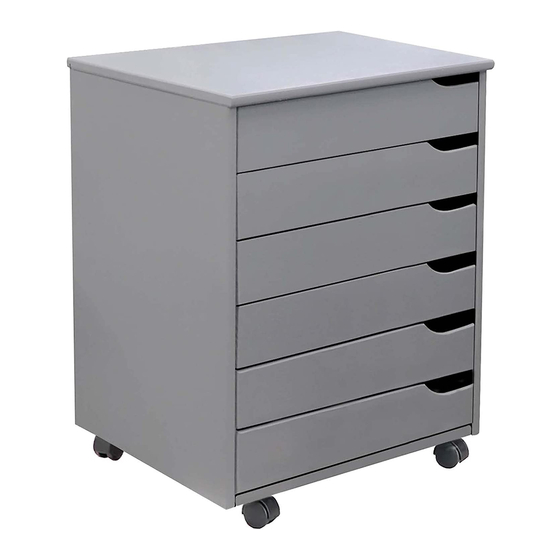

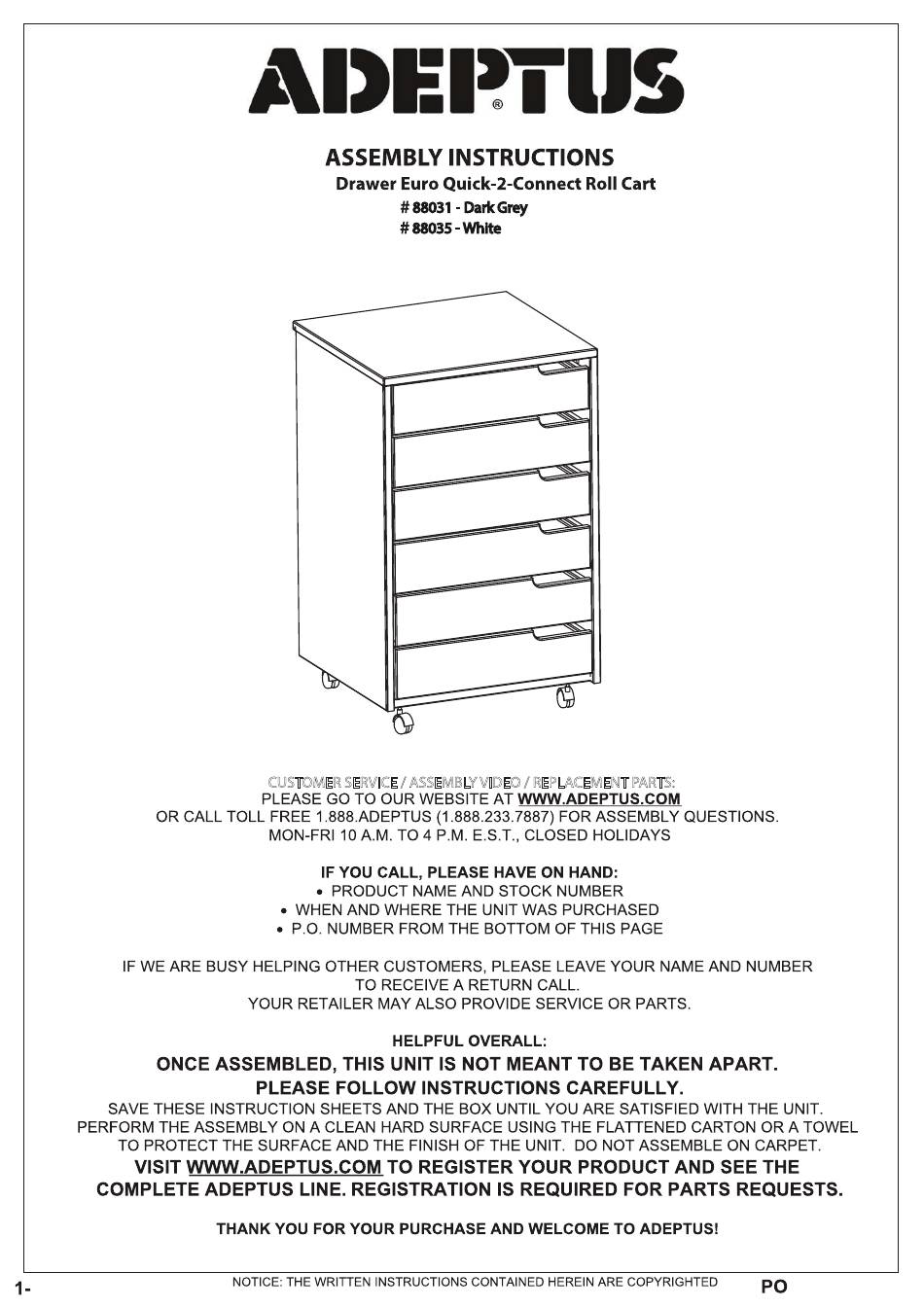

- Page 1 6 Wide 88031 - Dark Grey 88035 - White CUSTOMER SERVICE / ASSEMBLY VIDEO / REPLACEMENT PARTS: THIS PRODUCT IS PATENTENTED...
- Page 2 This is a PATENTED SOLID WOOD ADEPTUS product:...
- Page 4 Align the caster stem ( Part A ) with the hole in caster insert (B)
- Page 5 PLACE THE DRAWER RUNNERS DO NOT CONFIGURE HEAVY LOADS IN THE TOP DRAWERS ! C=12 ATTACH CASTER SUPPORTS ( PARTS 5 & 7 ) TO SIDE PANELS ( PARTS 2 & 3) UNFINISHED Required : FRONT EDGE Snug parts 5 and 7 tightly to part 2 . No gaps . Use screws to attach ! You must secure...
- Page 6 caster support Part # 7. Stand unit. STAND UNIT UPRIGHT PUSH TOP Turn unit upside down to complete assembly ! Turn REQUIRED STEP : The top must be secured to the side panels using 6 of the provided screws Required :...
- Page 8 AS REQUIRED FOR YOUR CONFIGURATION DO NOT PLACE HEAVY LOADS IN TOP DRAWERS.
