Summary of Contents for BKL Air Conditioner BKL line FX i10
- Page 1 AIR CONDITIONERS Flash FX i10/i11 Inverter Without Outdoor Unit INSTALLATION AND USE MANUAL COOLING...
- Page 3 Compliance Disposal rules for the new air conditioner This unit complies with European directives: • Low voltage 2014/35/EU packaging • Electro-magnetic compatibility 2014/30/EU • Use restrictions of hazardous substances in electrical All of the air conditioner packing materials can be disposed of and electronic equipment 2011/65/EC (RoHS2) without harming the environment.
-
Page 4: Table Of Contents
General General ..............Fundamental safety rules . -
Page 5: General
GENERAL After unpacking, check that the contents are intact Do not leave the room closed for long. Open the and that all parts are included. If they're not, please windows periodically to change the air. contact the Agent who sold you the appliance. General warning This instruction booklet is an integral part of the The appliance must be installed by an authorised... -
Page 6: Fundamental Safety Rules
GENERAL Exposure controls/personal protection Control parameters AEL (8-h TWA) = 1000 ml/m³ for each of the two components Respiratory protection For gas recovery and maintenance work in tanks, use an independent breathing apparatus The vapour is heavier than air and can cause suffocation by reducing the oxygen available for respiration Eye protection Safety glasses Hand protection... -
Page 7: Description

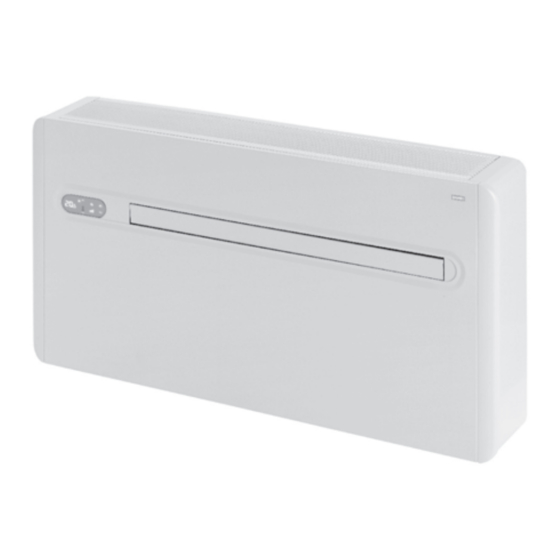

GENERAL Description FLASH is the new solution by BKL line, a significant step lowered to exceptional levels. towards reducing the aesthetic impact of air conditioners. Both ventilation motors are BLDC to reduce consumption Being only 16 centimetres deep, FLASH is the thinnest still further and make flow adjustment more precise. -
Page 8: Shipping Dimensions And Weight
GENERAL Shipping dimensions and weight Packaging U.M. FX-i10 FX-i11 Dimensions Gross Weight 1110 1110 Supplied components 1.8 Parts supplied and accessories provided separately The supply comprises of the parts listed in the following table. Before assembly, please check that they are all at hand. -
Page 9: Unit Parts
GENERAL Unit parts Air outlet flaps Terminal block power supply Touch-screen display Aesthetic side panel Front panel Anti-lifting bracket Outdoor air suction External air supply fan Outdoor air outlet Outdoor air heat exchanger Air suction grid Compressor Air filters Indoor air heat exchanger Condensate drain pipe Electronic board Sonda aria ambiente... -
Page 10: Installation
INSTALLATION INSTALLATION Installation mode Before installing the conditioner, it is essential to calculate Cover large windows exposed to sunlight with curtains the summer thermal loads (and winter ones for the models or with external maskings (blinds, porches, reflecting with a heat pump) of the room. The more calculations are films, etc.). -
Page 11: Assembling The Unit
INSTALLATION Assembling the unit For the unit to work, two holes Ø162 must be placed as The holes must be drilled slightly downwards to avoid indicated on the template; water from entering. The majority of the removed material is expelled outwards, The maximum length of the holes is of 1 m and there so please be careful that it doesn't hit people or objects. - Page 12 INSTALLATION Condensation drain predisposition For heat pump appliances, a condensation drain pipe (Ø10 The hole for the condensation pipe must always lean mm, internal, not supplied) must connect the unit to the pipe towards the outside. on the top part of the appliance. A solenoid valve will start the flow of the condensation from The exact position in which to place the pipe mouth is the internal collection tray when the maximum level has...
-
Page 14: Mounting The Appliance On The Bracket
INSTALLATION Once installation of the grilles is complete check their the external air flow is activated, to allow the cooling and opening (towards the inside of the duct for the air inlet heating functions to be operated. The conditioner must be grid "IN"... -
Page 15: Electrical Connection
INSTALLATION Electrical connection The appliance is equipped with a power cord and plug This operation must be performed only by the installer (Y-type connection, the cord can only be replaced by the or by authorised personnel in compliance with current manufacturer, the assistance centre or a qualified installer). -
Page 16: High/Low Installation Configuration
INSTALLATION High/low installation configuration The unit can be installed either in the lower part (near the in cooling mode, which increases the air flow in the room floor) or in the upper part (near the ceiling) of the wall. In (coanda effect). -
Page 17: Setting Cool Only Or Heat Only Modes
INSTALLATION Setting cool only or heat only modes It is possible to deactivate the heating or the cooling mode. modes following a simple procedure. Press the A key again for Ho (heating only) mode. Wait for 3 seconds without touching anything to memorise Keep the A key on the touch-screen display pressed for 5 seconds until HC (heating and cooling) appears on the the setting. -
Page 18: Heating Operation (Only For Flash Fx I11 Model)
2.12 Heating operation (only for FLASH FX i11 model) The FLAS FX i11 has an additional electric element If night-time operation is not selected, the element will which provides heat when the weather conditions outside switch on, together with the compressor, if: are bad. - Page 19 INSTALLATION Use of the appliance removes ice that may have formed on the external No structural obstacles or objects (furniture, curtains, battery. In this condition the machine is active but does plants, leafage, shutters, etc.) must ever obstruct the not send hot air to the room. This stage may last from 3 normal air flow both from the internal and from the to 10 minutes.
-
Page 20: Wiring Diagram
INSTALLATION 2.13 Wiring Diagram Only for model 1118 DC Solo per il modello 1118 DC Seulement pour le modèle 1118 DC Solo para modelo 1118 DC... - Page 21 INSTALLATION Digital inputs: Contact presence for terminals CP (contact presence) Basin water level float (NO) Safety float basin water (NC) Analog inputs: Outside temperature sensor (located upstream of the battery inf.). NTC 5.28k to 25., C. Condensation probe (located on tubaz.batteria inf.). NTC 5.28k to 25., C. Evaporation probe (located on tubaz.batterie sup.).
-
Page 22: Periodic Maintenance
MAINTENANCE MAINTENANCE Periodic Maintenance The air conditioner you have bought has been designed concern the following cleaning operations. to keep maintenance operations to a minimum, which only External cleaning Before any cleaning and maintenance operation, Do not use abrasive sponges or abrasive or corrosive disconnect the unit from the mains by switching off detergents as you might damage the painted surfaces. -
Page 23: Troubleshooting
MAINTENANCE Troubleshooting In case of malfunctioning, please refer to the following table. If, please contact the authorised technical assistance. after performing the suggested checks, the problem is not solved, Anomaly Possible cause Solution Check the voltage (by turning the light on, for example). Check that the exclusive magneto-thermic switch that protects The appliance No power supply... -
Page 24: Technical Specifications
MAINTENANCE Technical specifications Please read data plate to obtain the technical data listed below. Power supply voltage Maximum absorbed power Maximum absorbed current Amount of refrigerant gas Casing protection rating Model FX-i10 FX-i11 Size kBtu Cooling capacity * (min-max) 2,3 (0,92 - 3,10) 2,3 (0,92 - 3,10) rated Cooling power input... -
Page 25: User Manual
USER MANUAL USER MANUAL Warning The installation and all electrical connections must be In the event of water leaks, turn off the appliance and carried out by specialised personnel in compliance with disconnect the electric power supply. Call the nearest the law. -
Page 26: Managing The Appliance With The Remote Control
Managing the appliance with the remote control USER MANUAL 4.4 Managing the appliance with the remote control It is possible to select the various modes by pressing the placing obstacles between the remote and the buttons ( see Description of machine functioning paragraph). appliance while using it. - Page 27 USER MANUAL Key/Display Operation Switching the appliance on and off It is possible to switch the appliance on or off (stand-by) by pressing the specific button. The control system of the appliance is equipped with a memory, so settings won't be lost if the appliance is switched off or in the event of low voltage.
-
Page 28: Advice For Energy Saving
USER MANUAL Key/Display Operation Fan speed control By pressing this button, the speed changes according to the following sequence: Minimum, Medium, Maximum and Automatic. The higher the speed, the better the performance, though the appliance will be more noisy. By selecting the Automatic speed (which can be visualised by sliding the 3 speed bars on the display), the microprocessor regulates the speed automatically, increasing or decreasing it according to the difference between the room temperature and the set temperature. -
Page 29: Product Fiche
PRODUCT FICHE Model FX-i10 Inside sound power level 58 dB(A) Refrigerante R410A GWP Refrigerant 2088 KgCO Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to [2088]. - Page 30 PRODUCT FICHE Model FX-i11 Inside sound power level 58 dB(A) Refrigerant R410A 2088 KgCO GWP Refrigerant Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global war- ming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to [2088]. This means that if 1 kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be [2088] times higher than 1 kg of CO , over a period of 100 years.
-
Page 31: Guarantee Certificate
Guarantee certi cate Slip Model S/N indoor unit S/N indoor unit S/N indoor unit S/N outdoor unit Date installation/first running Seller Company Slip “A” for user To be kept Street (Please print in block letters). To make the guarantee valid we ask you to follow the below rules: •... - Page 32 La Casa costruttrice non assume responsabilità per eventuali errori o inesattezze presenti nel contenuto di questo manua-le e si riserva il diritto di apportare ai suoi prodotti, in qualunque momento esenza preavviso, tutte le modifiche ritenute opportune per qualsiasi esigenza di carattere tecnico o commerciale. The manufacturer denies all responsibility for any errors or inaccuracies in this manual andreserves the right, at any time and without notice, to make any modifications to its products if judged necessary,to meet any technical or commercial need.
