Summary of Contents for bluefin ACTIVE XC-43G

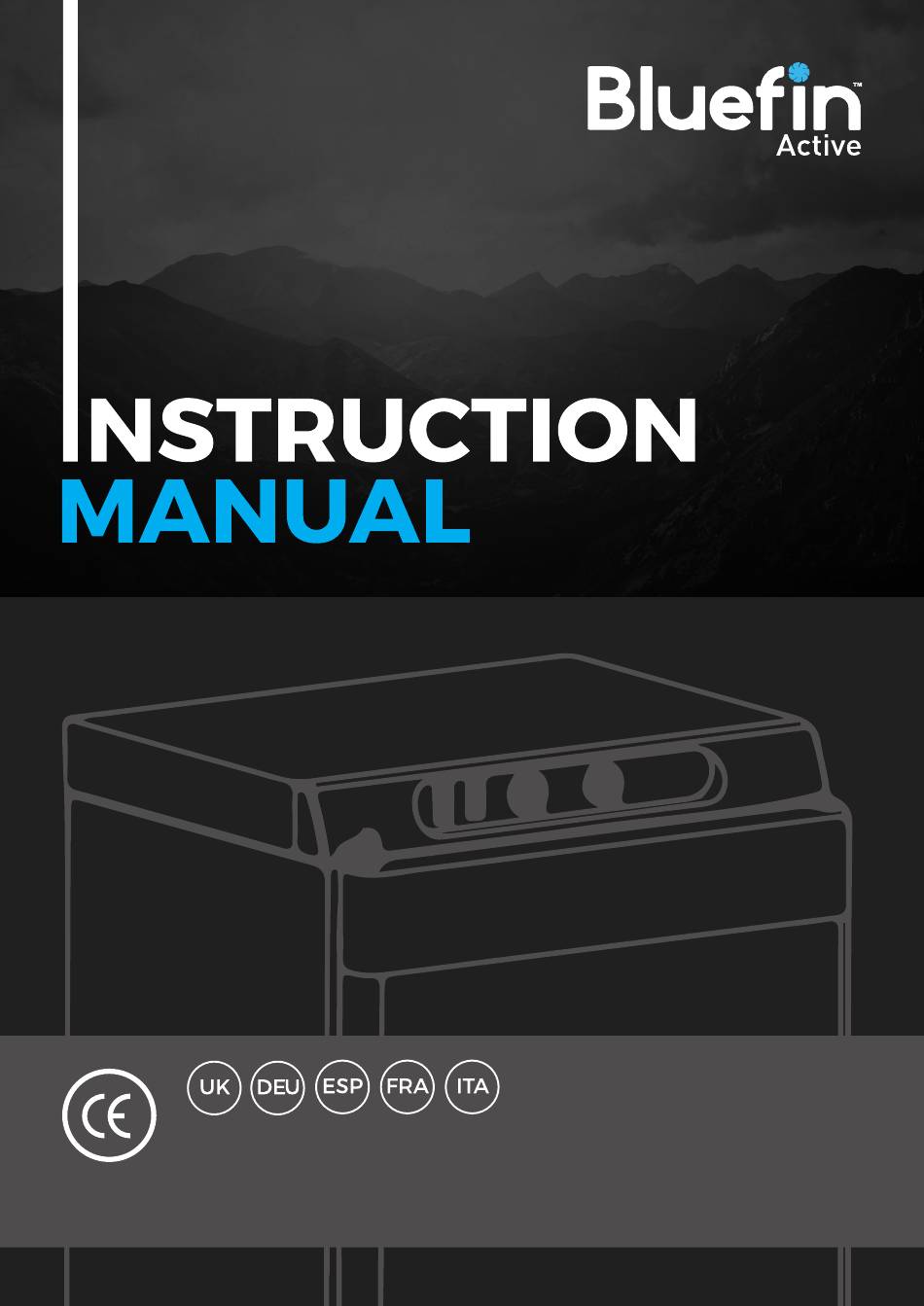

- Page 1 For use with BLUEFIN ACTIVE Absorption Refrigerator. 12V – 230V – Gas Model: XC-43G, FA50G, XC-62GAS, FA60G...
- Page 3 Dear customer, We are pleased that you have chosen a product from the BLUEFIN ACTIVE range. BLUEFIN ACTIVE offers you the highest quality and latest technology. In order to take full advantage of the device‘s performance, and to have many years of pleasure with your device, please read this manual carefully before operation.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS This general safety information must be observed when using this product. Read all instructions before using the product. Keep the user manual in a safe place to be able to access it at any time if necessary. Please keep this manual for future reference. Before obtaining access to terminals, all supply circuits must be disconnected. - Page 5 SAFETY PRECAUTIONS (cont.) Suitable for camping use. 10. The appliance may be connected to more than one source of energy. 11. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. 12. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments;...
-
Page 6: Installation
INSTALLATION This is a completely silent fridge. Therefore, do not expect to hear any sound when you connect the appliance to the power supply. For technical reasons, this fridge is not suitable for use in boats. Whether you operate the fridge on electrical power or gas, this fridge is not suitable for use in boats. - Page 7 OPERATION USING THE MAINS: 230V/50HZ Never use another source of energy at the same time (battery or gas). Verify that the mains voltage corresponds to the operating voltage specified on the technical data label at the back of the appliance. If the electrical specifications are correct, plug the safety electrical connector into an earthed wall socket, which should be wired according to the ruling regulations.
- Page 8 OPERATION USING A BATTERY (12V) Never use another source of energy at the same time (mains or gas). Prior to use of any battery; verify the voltage of the battery with the voltage indicated on the technical data label at the back of the appliance. When the appliance is powered by a car battery, only switch the fridge on while the car is travelling.
- Page 9 OPERATION USING BOTTLE GAS Never use another source of energy at the same time (mains or battery). Operation on gas is prohibited in small closed areas, in small vehicles and in boats. When using the appliance in caravans and mobile homes, a well and sound ventilation should be provided.
- Page 10 OPERATION USING BOTTLE GAS (cont.) Open the gas valve of the gas cylinder; press the gas valve knob in the panel, wait approximately 15 seconds, turn the pressed knob in the direction of the arrow, a click of the igniter can be heard and the gas flame is ignited. Hold the knob pressed in this position so that the flame remains burning.
-
Page 11: Maintenance And Storage
MAINTENANCE & STORAGE The fridge must be defrosted regularly in order to ensure a correct operation. To defrost the appliance, disconnect it, empty it and if necessary use a cloth with hot water. Dry and clean the inside without using abrasive products. Never use a knife or other sharp tool to remove ice. -
Page 12: Technical Data
TECHNICAL DATA Item No. XC-43G, FA50G Net capacity Refrigerant Ammonia- NH AC supply 230V/50Hz, 90W, 0.39A DC supply 12V, 90W, 7.5A Climate class N, SN Isolation Cyclopentane Gas category I3+(28~30/ 37) I3B/P(30) I3B/P(37) I3B/P(50) Gas type G30 (Butane), G31 G30 (Butane), G31 (Propane) and their (Propane) mixtures Gas pressure... - Page 13 TECHNICAL DATA (cont.) Item No. XC-62GAS, FA60G Net capacity Refrigerant Ammonia- NH 125g AC supply 230V/50Hz, 100W, 0.43A DC supply 12V, 100W, 8.33A Climate class N, SN Isolation Cyclopentane Gas category I3+(28~30/ 37) I3B/P(30) I3B/P(37) I3B/P(50) Gas type G30 (Butane), G31 G30 (Butane), G31 (Propane) and their (Propane) mixtures...
-
Page 14: Diagram Of Parts
DIAGRAM OF PARTS Door Cooling flange Gasket Lid 10. DC 12V switch Door Shelf 11. AC 230V switch Hinge, lower right 12. Rotary knob thermostat Shelf 13. Rotary knob gas Shelf 14. Indicator Hinge, lower left 15. Front decoration Removable drip tray 16. - Page 15 For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Bluefin Trading Ltd, Wadsworth, Hebden Bridge, W. Yorks, UK, HX7 8TG...
- Page 16 support@bluefintrading.co.uk www.bluefinactive.com...
