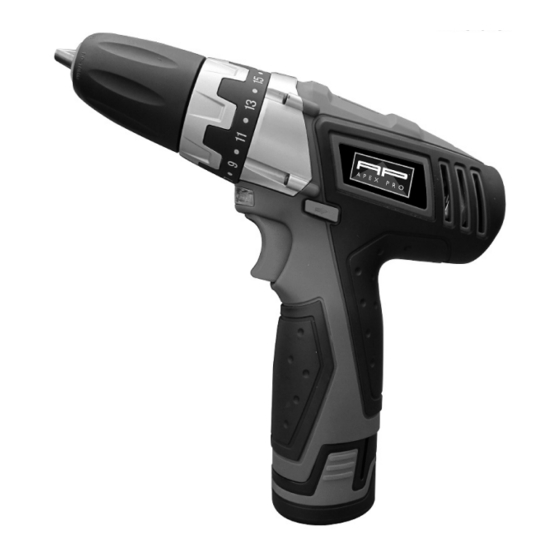

- Page 2 TABLE OF CONTENTS Specifications….................. Safety Instructions................Know Your Drill……………………………………………………. Operation..................... Maintenance..................Warranty ..................... SPECIFICATIONS 12 V Cordless Drill Item: 49112 Motor: 12Volt DC Switch: VSR (Variable Speed Reversible) Speed (no load): 0-400RPM/0-1050RPM Number of clutch positions: 17+1 Chuck capacity: 3/8" keyless Max torque: 248 in.lbs...
- Page 3 SAFETY INSTRUCTIONS GENRAL SAFETY RULES WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury. Save all warnings and instructions for future reference. WORK AREA SAFETY 1.
- Page 4 POWER TOOL USE AND CARE 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. 2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 5 7. For best results, your battery tool should be charged in a location where the temperature is more that 41 °F (5 °C) but less that 104 ° F (40 °C). Do not store outside or in vehicles. SAFETY RULES FOR CHARGER WARNING! Read and understand all instructions.
- Page 6 13. Disconnect charger from the power supply when not in use. This will reduce the risk of electric shock or damage to the charger if metal items should fall into the opening. It will also help prevent damage to the charger during a power surge.
- Page 7 ADJUSTABLE TORQUE The drill has a 17+1position clutch. TWO-SPEED GEAR BOX The two-speed gear box is designed for drilling or driving at LOW or HIGH speeds. A slide switch is located on top of your drill for selecting the appropriate speed. VARIABLE SPEED The variable-speed trigger switch delivers higher speed with increased pressure and lower speed with decreased trigger pressure.
- Page 8 The battery has an internal thermister cut off censor which will cease the charging cycle if the battery becomes hot during the charging process. This thermister censor will also stop the battery from operating should the battery become too hot during the operation of the tool. This can happen when the tool is overloaded or being used for extended periods of time.
- Page 9 When using drill in the LOW speed range, the speed will decrease and the drill will have more power and torque. When using drill in the HIGH speed range, the speed will increase and the drill will have less power and torque. Use LOW speed for high power and torque applications and HIGH speed for fast drilling or driving applications.
- Page 10 DRILLING IN WOOD For maximum performance, use high speed steel or brad point bits for wood drilling. 1. Begin drilling at a very low speed to prevent the bit from slipping off the starting point. 2. Increase speed as the drill bit bites into the material. 3.
- Page 11 LIMITED ONE YEAR WARRANTY APEX PRO Products is committed to build tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF APEX PRO CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC ("Seller") warrants to the original purchaser only, that all APEX PRO...
