Cree SmartCast KR Series Safety And Installation Manual

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before installation or
servicing.
2. This luminaire must be installed in accordance with the NEC or your local electrical
code. If you are not familiar with these codes and requirements, consult a qualified
electrician.
3. This luminaire must be supported by main runners or other building structure that
is capable of supporting fixture weight.
4. To reduce the risk of electric shock, disconnect both standard and emergency
power supplies and converter connector of the emergency driver before servicing.
5. This luminaire is thermally protected. Do not install insulation within
3 inches (76 mm) of luminaire sides or junction box nor above luminaire in such a
manner as to entrap heat.
6. Blinking LED may indicate fixture is too close to insulation.
7. DO NOT mount near gas or electric heaters.
8. Any changes or modifications to these devices not explicitly approved by
manufacture could void your authority to operate this equipment.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE

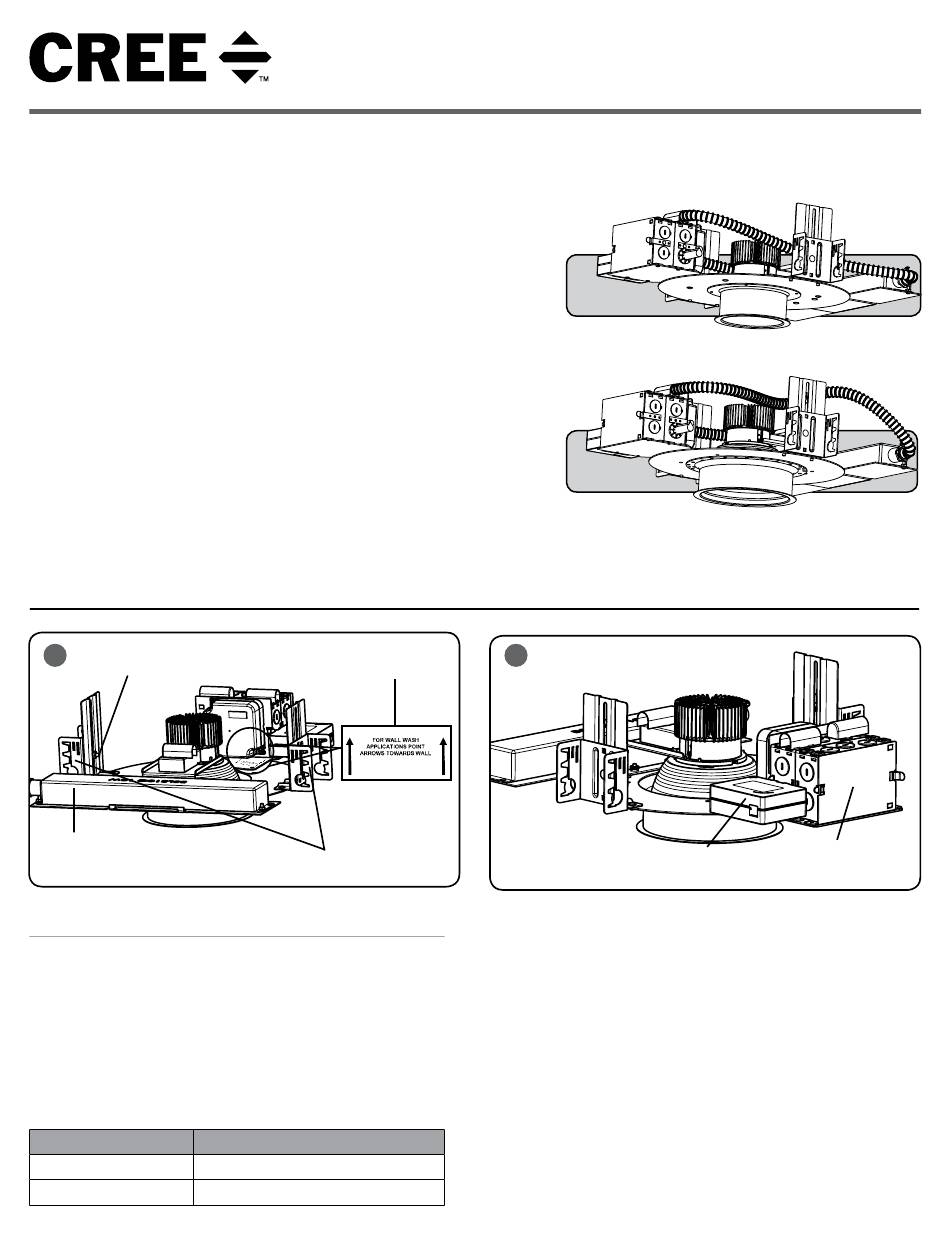

TO INSTALL:
1
Adjustment
Nut
Emergency
Driver
LUMINAIRE INSTALLATION
NOTE: An Illuminated Test Switch (ITS) with a testplate is shipped
in a separate packaging within the same box as the luminaire to be
installed by customer, see Electrical Connections section for wiring.
This hardware is intended to be mounted seperately from the luminaire
in accordance with the NEC or your local electrical code. Wire and
other necessary hardware must be supplied by customer.
STEP 1:
Mark the intended location of the luminaire and cut appropriate
opening in the ceiling using the chart below:
KR SERIES
KR4
KR6
1 of 3
KR Series With Cree SmartCast
Wall Label
Quick Mount
Brackets
CUTOUT DIMENSIONS
4.75 in (12 cm)
6.5 in (16.5 cm)
led architectural downlight With emergency driver
KR4™
KR6™
2
STEP 2:
Thread rigid conduit, bar stock, wire or C-channel (supplied by others)
through quick-mount brackets at the sides of the fixture. See Figure 1.
NOTE:
For Wall Wash application orientate luminaire as indicated on
Wall Label. See Figure 1.
STEP 3:
Attach mounting means to structure capable of supporting the
luminaires weight.
STEP 4:
Adjust mounting height by loosening adjustment nut, see
Figure 1, and then position bracket so that the bottom of the plaster
ring is flush with the bottom of the opening of the finished ceiling.
STEP 5:
Tighten adjustment nut.
STEP 6:
Remove one of the junction box covers and bring in appropriate power
supply to the junction box using one of the knock-outs. See Figure 2.
Technology
®
Includes: KR4™ -eB and KR6™ -eB
InstallatIon InstRuctIons
Junction Box
RF Module Cover
KI086X06R1
