Summary of Contents for Andrew James AJ000641

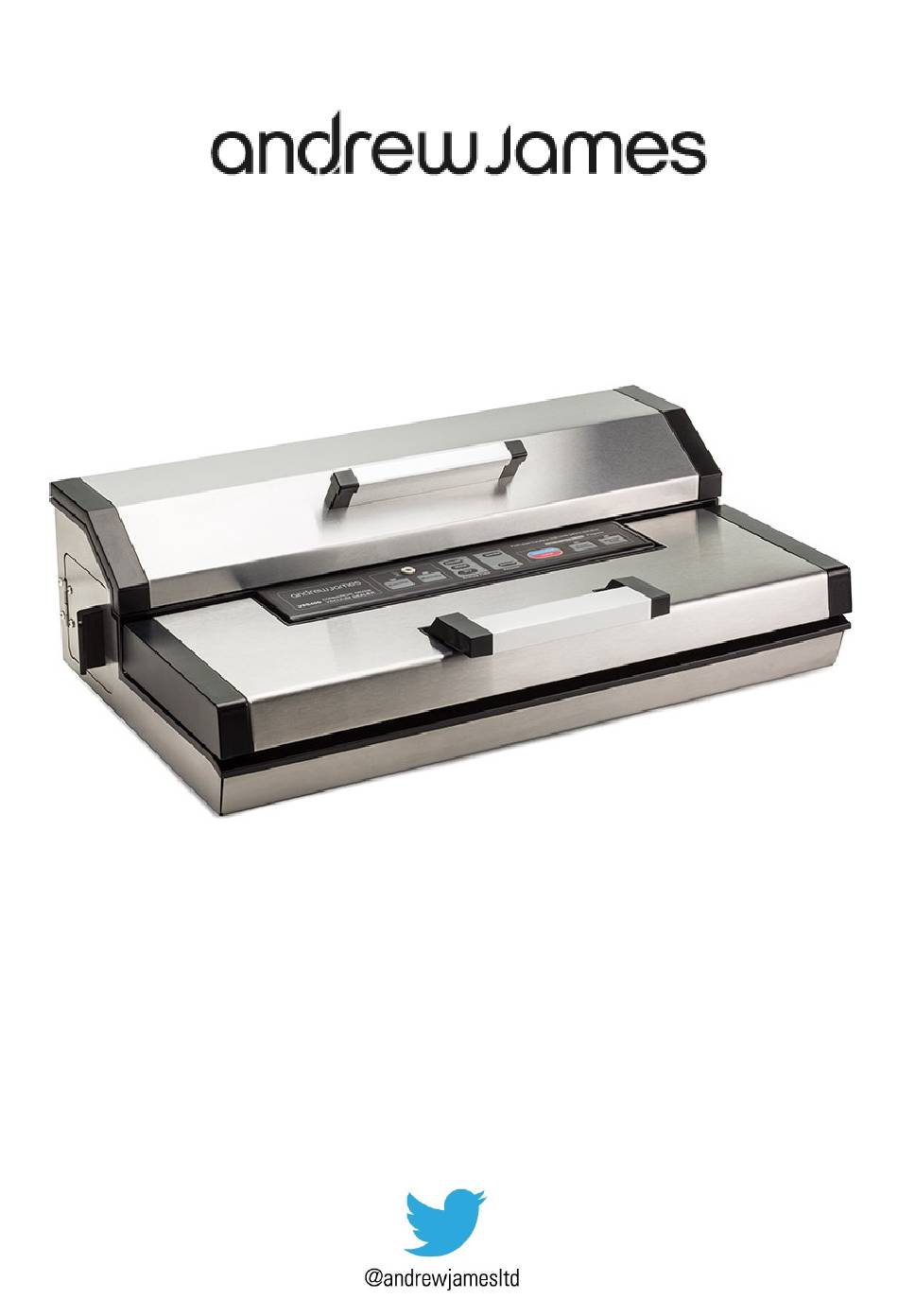

- Page 1 Commercial Sealer Pour la version française veuillez consulter notre site de web www.andrewjamesworldwide.com Die deutsche Version finden Sie auf unsere Webseite www.andrewjamesworldwide.com Please read the manual fully before using the appliance and keep the manual safe for future reference.
- Page 2 Important Safeguards Always ensure the voltage on the rating label corresponds When using electrical to the voltage in your home. appliance, basic safety precautions should always be Check the power cord and followed, including: plug regularly damage. If the cord or the ...
- Page 3 reason. remove the appliance plug from the electrical socket. supply cord damaged, must Use of an extension cord replaced with this appliance is not manufacturer or by someone recommended. However if it who is suitably qualified to is necessary to use an avoid a potential hazard.
- Page 4 remove the appliance plug from the electrical socket. Never handle or operate the appliance with wet hands or with bare feet. Do not immerse any part of the appliance in water or liquid. Appliance specific safeguards Do not use any bags or attachments recommended this...
- Page 5 Appliance Functions 1. Vacuum and seal/cancel This button has two functions depending on the machines status: Cancel: Stops the operation of the machine. Vacuum and seal: At working condition, vacuuming or sealing 2. Vacuum There are two button options to select the vacuum pressure: Normal: For regular item storage in normal vacuum pressure.
- Page 6 Canister: To vacuum canisters fore marinating or canister operations. through a hose. 11. Front Handle 5. Marinade: To marinate food in a mar- Press down to lock the cover. Pull to inating bowl or canister. lift the cover. 6. Manual Seal 12.
- Page 7 Sealing Strip Teflon-coated heating element which is hot and seals the bag. Place the vacuum bag over the strip to be vacuum sealed. The strip needs to be Upper Gasket cleaned and dried, and replaced if This keeps air away by forming a vacuum broken.
- Page 8 Making a bag with a bag roll Fig. 1 Plug the appliance into a power source. Turn the switch located at the back of the appliance to “I”. Open the top cover. Fig. 2 Make sure the bag cutter is at one end of the cutter rack.
- Page 9 Fig.1 Vacuum packaging with a bag Place food items inside a clean vacuum bag. Clean and straighten the open end of the bag ensuring there is no food debris, wrinkles or ripples. Fig.2 Place the open end of the bag in the vacuum chamber area.
- Page 10 The appliance will only work with the vacuum sealer bags/rolls provided. Can be purchased separately at www.andrewjamesworldwide.com Vacuuming in a canister (Can be bought at www.andrewjamesworldwide.com) Clean the canister cover and base ensuring they are clean and dry. Place the items into the canister. Do not over fill. Ensure the cover Fig.1 has a good contact with the canister bowl rim.
- Page 11 Check the LED status of “Vacuum” to confirm the desired vacuum pressure (Normal/Gentle) according to the food in the canister. The default mode is “Normal”. Fig.2 Press Marinate. The vacuum will work for 5 cycles, vacuuming then releasing the air. The whole marinate process will take approximately 6 minutes.
- Page 12 Troubleshooting Nothing happens Check the power cord to ensure it is firmly plugged into the when I try to power supply. vacuum package. Check switch is set to “0”. Check to see if the handle has been fully pushed down. Examine power cord for any damages.
- Page 13 The vacuum bag may have a leak. To test, seal the bag with some air in it, submerge in water and apply pressure. Any bubbles indicate there is a leak. If the food contains a high amount of liquid, it is recommend- ed to freeze it.
- Page 14 UK and EU Guarantee deduct the cost of shipping from the value of the refund. Your new Andrew James product comes with a 24 month guarantee and a 2 year Customers are responsible for any fixed warranty, effective from receipt taxes applied to our products when confirmation.
- Page 15 doubt consult a qualified electrician or Disposal of the appliance appliance repair agent. Waste Electrical & Electronic Safely dispose of the old plug. Equipment (WEEE) Waste & Recycling Connect the brown lead to the live terminal “L” in the new plug. ...
- Page 16 Contact details Andrew James UK LTD Unit 1 P C Henderson Premises Bowburn North Industrial Estate Bowburn Co Durham DH6 5NG Customer Service / Technical Support Telephone: 0844 335 8464 Email: customerservices@andrewjamesworldwide.com Web: www.andrewjamesworldwide.com Twitter: @andrewjamesltd Facebook: Andrew James Copyright Andrew James...
