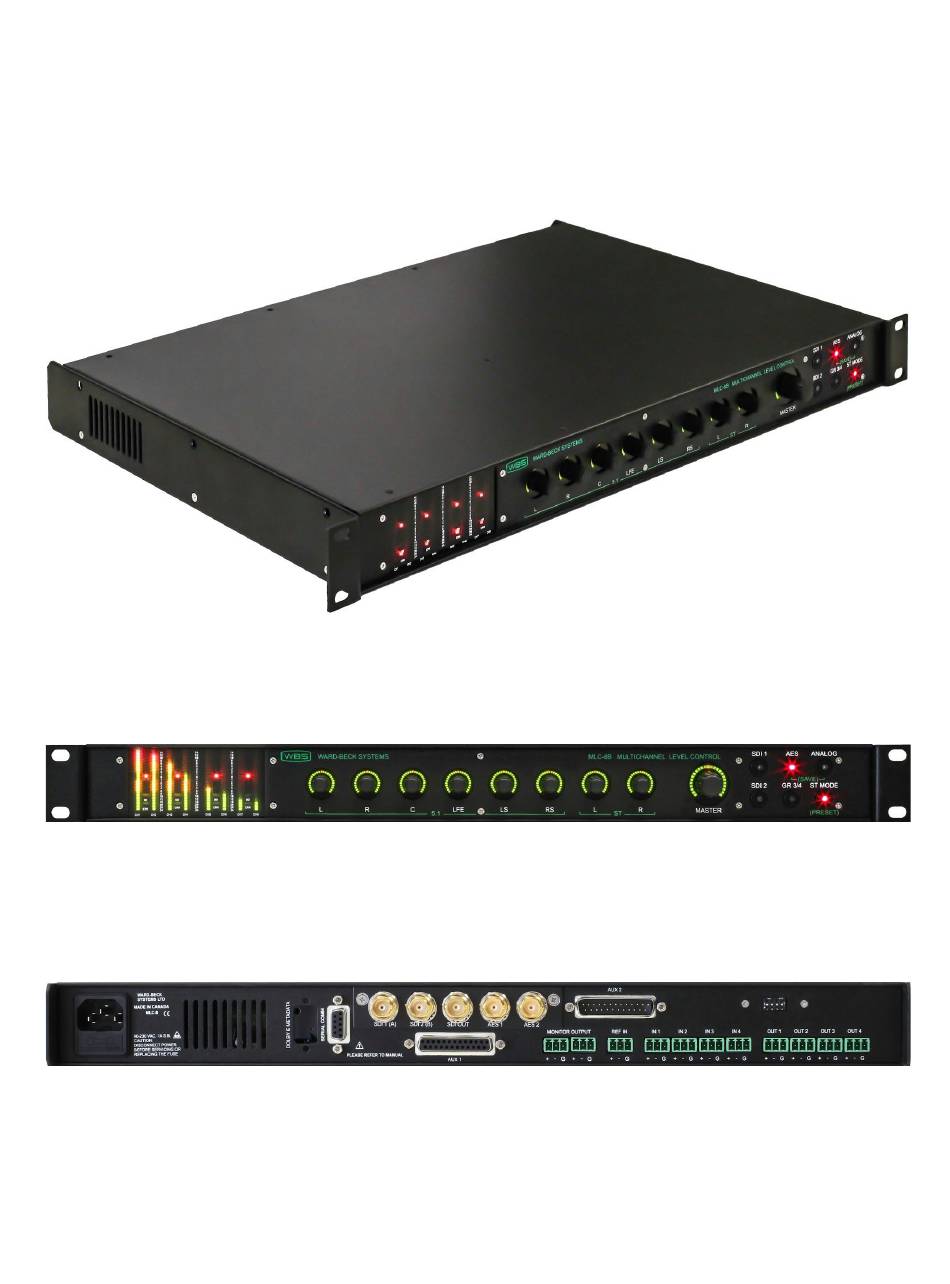

- Page 1 MLC8B MULTICHANNEL LEVEL CONTROL by WardBeck Systems Rev:Oct.01 2014...
-
Page 2: Installation
connectors A UX1, AUX2 and SERIAL COMM . The MLC8B is factory calibrated to operate at the nominal level of 20dBFS = 0. The ... - Page 3 to adjust the level of the individual signals being fed to the output of the MLC8B. These ...
- Page 4 this switch mutes all eight channels. It is possible to store one preset proportionate mix in the MLC8B. Once the correct mix ...
- Page 5 MLC8B CONNECTOR LAYOUTS AES CONNECTOR ASSIGNMENT MLC8B INTERCONNECT CABLE ...
- Page 6 ...
- Page 7 ...
- Page 8 MLC8B FUNCTIONAL DIAGRAM ...
-
Page 9: Specifications
SPECIFICATIONS ANALOG OUTPUT Frequency Response 1.5 dBu from 20Hz to 20kHz Impedance 60Ω Balanced Max Output 23.5 dBu Noise Less than 70 dBu THD Less than 0.05% Connector Type DB 25 male AES/EBU INPUTS Impedance 110Ω transformer balanced Level 0.2 to 7V pp Max Input 0 dbfs Standard AES31D1995 Type 3 Pin Terminal Block AES/EBU OUTPUTS Impedance 110Ω transformer balanced Level 2.5V pp terminated Output 0 dbfs Noise Less than 100 dbfs Standard AES31D1995 THD ... -
Page 10: Warranty
WARRANTY All WardBeck Systems Ltd. products are warranted against defective materials and workmanship for a period of one year from the date of shipment. WardBeck Systems Ltd. will repair or replace, at its option and without charge, all said products ...
