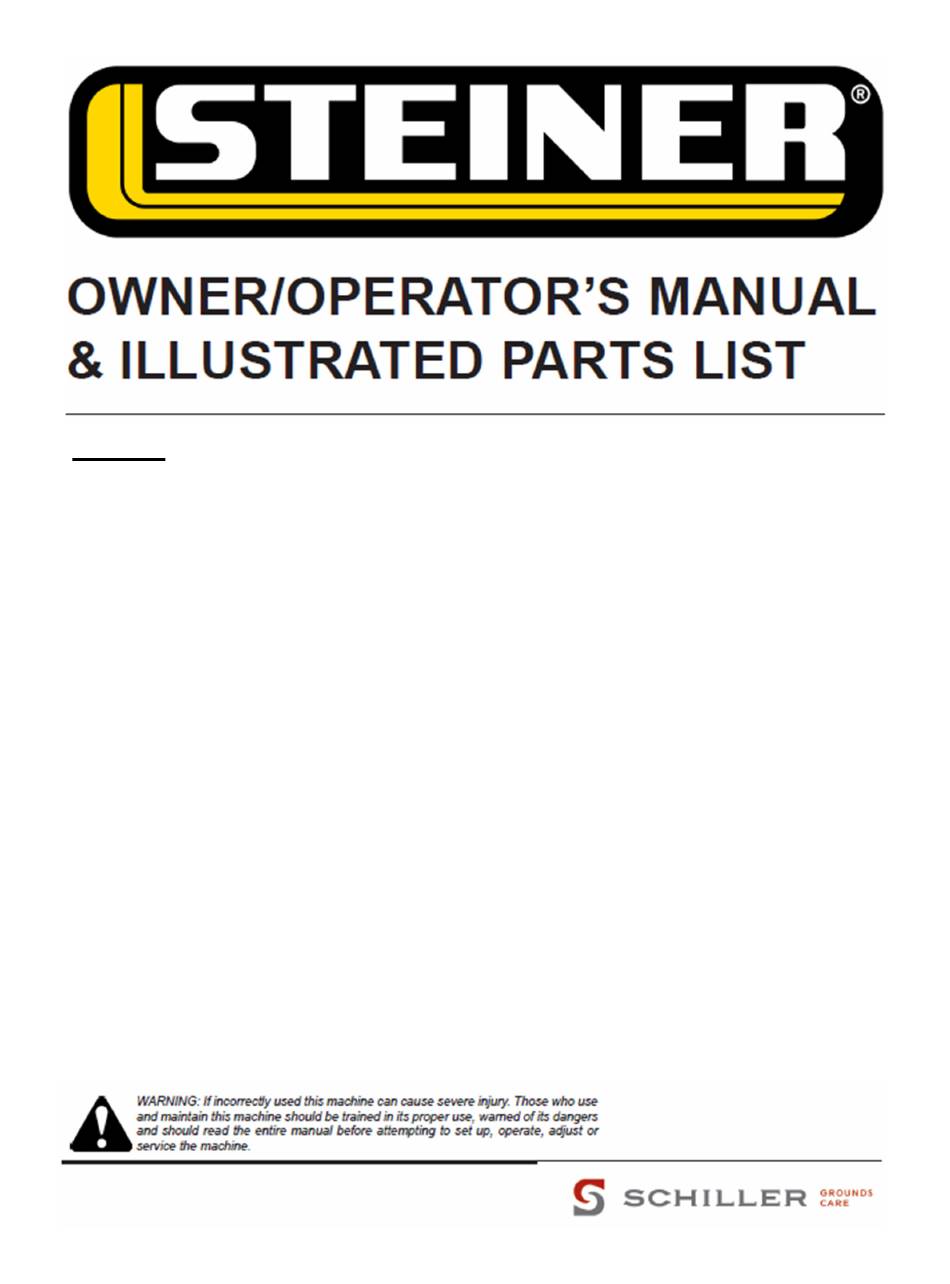

- Page 1 MODEL : 75-70666 SNOWBLOWER-48’’ SB448 75-70667 SNOWBLOWER-54’’ SB454 Manual 4165 788 Rev. A 9-2010 4165788_en K-09...
-
Page 3: Table Of Contents
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc, service en- sures that you continue to receive the best results possible from Schiller Grounds Care, Inc. products. You can trust Schiller Grounds Care, Inc. -
Page 4: Description / Specifications
DESCRIPTION / SPECIFICATIONS DESCRIPTION This Snowblower is designed to facilitate clearing of large volumes of snow from sidewalks, driveways, and small parking lots. This is a 2-stage blower. The auger feeds the snow into the blower housing. The Snowblower is belt-driven with a gearbox to the 15’’... -
Page 5: Safety
Schiller Grounds tions that are not designed, developed, tested Care, Inc. machines. For your safety and the safety of and approved by Schiller Grounds Care, Inc others, read and follow the information given with these Engineering Department. Any Schiller Grounds Care, Inc product that is altered, modified or signal words and/or the symbols shown above. - Page 6 SAFETY Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the vehicle and accessory before operating.
- Page 7 SAFETY OPERATION: 1. Do not put hands or feet near, under or inside MAINTENANCE AND STORAGE rotating parts. 1. When cleaning, repairing or inspecting the vehicle 2. Exercise extreme caution when operating on or and accessory, make certain that all moving parts have crossing gravel drives, walks or roads.
-
Page 8: Safety Decals
SAFETY DECALS REPLACE IF DECALS ARE DAMAGED SEE PARTS BREAKDOWN FOR DECAL LOCATION DECAL #105130 DECAL #105126 To avoid serious injury: Before installing or using: Keep hands, feet & clothing away from rotat- Locate, read and make sure to understand ing auger while engine is running. -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Tools Required: Wrench: 9/16, 7/16’’, 1/2’’ Ratchet Socket 9/16’’, 7/16’’ Pliers Axle stands Allen key Refer to parts breakdown section for parts identification Step 1 Snowblower Preparation: 1. Remove the snowblower from the shipping crate. 2. Remove the support plates from skid shoes. Chute Installation: 1. - Page 10 ASSEMBLY INSTRUCTIONS Chain installation: 1. Loosen the two hydraulic motor support bolts (item 21) and the tensioning bolt (item 22). 2. Install the chain (item 20) as shown. 3. Tighten the tensioning bolt of the hydraulic motor and lock into place with a nylon lock nut 1/4’’. 4.
-
Page 11: Installation
INSTALLATION STEP 2 SNOWBLOWER INSTALLATION INSTRUCTIONS: For model 430 in order to prevent the snowblower from starting without the P.T.O. being engaged in the low position. Install hydraulic cylinder stopper (item 50) in the engaged position as shown. To do so, remove the pin between the hydraulic cylinder (item 51) and the front lift (item 52). -
Page 12: Adjustments & Removal
ADJUSTMENTS & REMOVAL STEP 3 ADJUSTMENTS Drive pulley adjustment: NOTE: Place the tractor horizontally on a flat surface. 1. For model 235: The tractor pulley (item 60) and the snowblower pul- ley (item 61) must be well aligned (this is to ensure a longer life span of the belt). -
Page 13: Operation
OPERATION STEP 5 OPERATIONING INSTRUCTIONS: 1. For the 430 model, put the stopper in the engaged position. (See Installation step 2). 2. Make sure the snowblower is clear of snow before engaging the snowblower. 3. Make sure that the auger and impeller operate freely. 4. -
Page 14: Service
SERVICE SERVICE SCHEDULE TO PREVENT INJURIES: STOP THE MOTOR. APPLY PARKING BRAKE. REMOVE THE IGNITION KEY. DISCONNECT THE WIRE FROM THE SPARK PLUG(S) AND KEEP AWAY FROM SPARK PLUG(S) TO PREVENT ACCIDENTAL STARTING. Daily: -Check for any damage on the hydraulic hose. The hydraulic hose must be replaced if there is any small damage. - Page 15 SERVICE AUGERS AND FAN SHEAR BOLT REPLACEMENT Shear bolts are to be considered a preventive measure and not an assured protection. Operator vigi- lance is required. Thoroughly inspect the areas where the snowblower is to be used and remove all foreign objects.
-
Page 16: Troubleshooting
TROUBLESHOOTING Please refer to parts breakdown section for parts identification. TROUBLESHOOTING PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION One section or both sections of the Shear bolts are probably broken. Replace shear bolt (for identification, auger stops turning. see parts list “Snowblower”). Fan stops turning. - Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Snowblower digs into ground. Ground is not frozen or too soft. Adjust skid shoes lower so they may better support the snowblower. Snowblower vibrates or is abnor- Damaged pulley. Replace pulley. mally noisy. Damaged bearing. Replace bearing.
-
Page 18: Torque Specification Table
TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads. -
Page 19: Parts Section
PARTS SECTION PARTS SECTION... -
Page 20: Sb448 Snowblower & Chute
PARTS BREAKDOWN SB448 SNOWBLOWER... - Page 21 PARTS LIST SB448 SNOWBLOWER Ref. Qty. Part # English description Réf. Qté. Pièce # Frame 48” 4165817.2 Gear box support 4165818.7 Engine support 4165819.7 4165820.7 Hitch 4165821.7 Belt guard 4165822.2 Bender 4165823.7 Auger 48” left 4165824.7 Auger 48” right 4165825.7 10 Left skid shoe 4165826.7 Right skid shoe...
- Page 22 PARTS LIST SB448 SNOWBLOWER Ref. Qty. Part # English description Réf. Qté. Pièce # 33 V pulley with set screw 4165810 34 Roller chain #40 x 64 /w connecting link 4165798 35 Bearing with set screw 4165796 36 Flat pulley 4165797 37 Shear bolt / N.I.L.N.
- Page 23 PARTS LIST SB448 SNOWBLOWER Ref. Qty. Part # English description Réf. Qté. Pièce # 65 Hex. bolt 5/16” n.c. x 2 1/4” GR8 66 Hex. bolt 3/8” n.c. x 3/4” 67 Hex. bolt 3/8” n.c. x 1 1/4” 68 Hex. bolt 3/8” n.c. x 1 3/4” 69 Hex.
-
Page 24: Sb454 Snowblower & Chute
PARTS BREAKDOWN SB454 SNOWBLOWER... - Page 25 PARTS LIST SB454 SNOWBLOWER Ref. Qty. Part # English description Réf. Qté. Pièce # Frame 54” 4165842.2 Gear box support 4165818.7 Engine support 4165819.7 4165820.7 Hitch 4165821.7 Belt guard 4165822.2 Bender 4165823.7 Auger 54” left 4165843.7 Auger 54” right 4165844.7 10 Left skid shoe 4165826.7 Right skid shoe...
- Page 26 PARTS LIST SB454 SNOWBLOWER Ref. Qty. Part # English description Réf. Qté. Pièce # 34 V pulley with set screw 4165810 35 Roller chain #40 x 64 /w connecting link 4165798 36 Bearing with set screw 4165796 37 Flat pulley 4165797 38 Shear bolt / N.I.L.N.
- Page 27 PARTS LIST SB454 SNOWBLOWER Ref. Qty. Part # English description Réf. Qté. Pièce # 67 Hex. bolt 5/16” n.c. x 1 1/4” 68 Hex. bolt 5/16” n.c. x 2 1/4” GR8 69 Hex. bolt 3/8” n.c. x 3/4” 70 Hex. bolt 3/8” n.c. x 1 1/4” 71 Hex.
-
Page 28: Options
OPTIONS & ATTACHMENTS SNOW DRIFT CUTTER #970400 for Northeast snowblower. #970403 Facilitates and increases snow Pair of extended wings with snow ELECTRIC DEFLECTOR KIT #970401 intake. drift cutters. Allows to adjust the deflector Pkg. of 2 Pkg. of 2 electrically from driver’s seat.
