Prysmian Channell Aerial Openable Joint Closure Instruction Manual

50 to 100 pair

Advertisement

1:

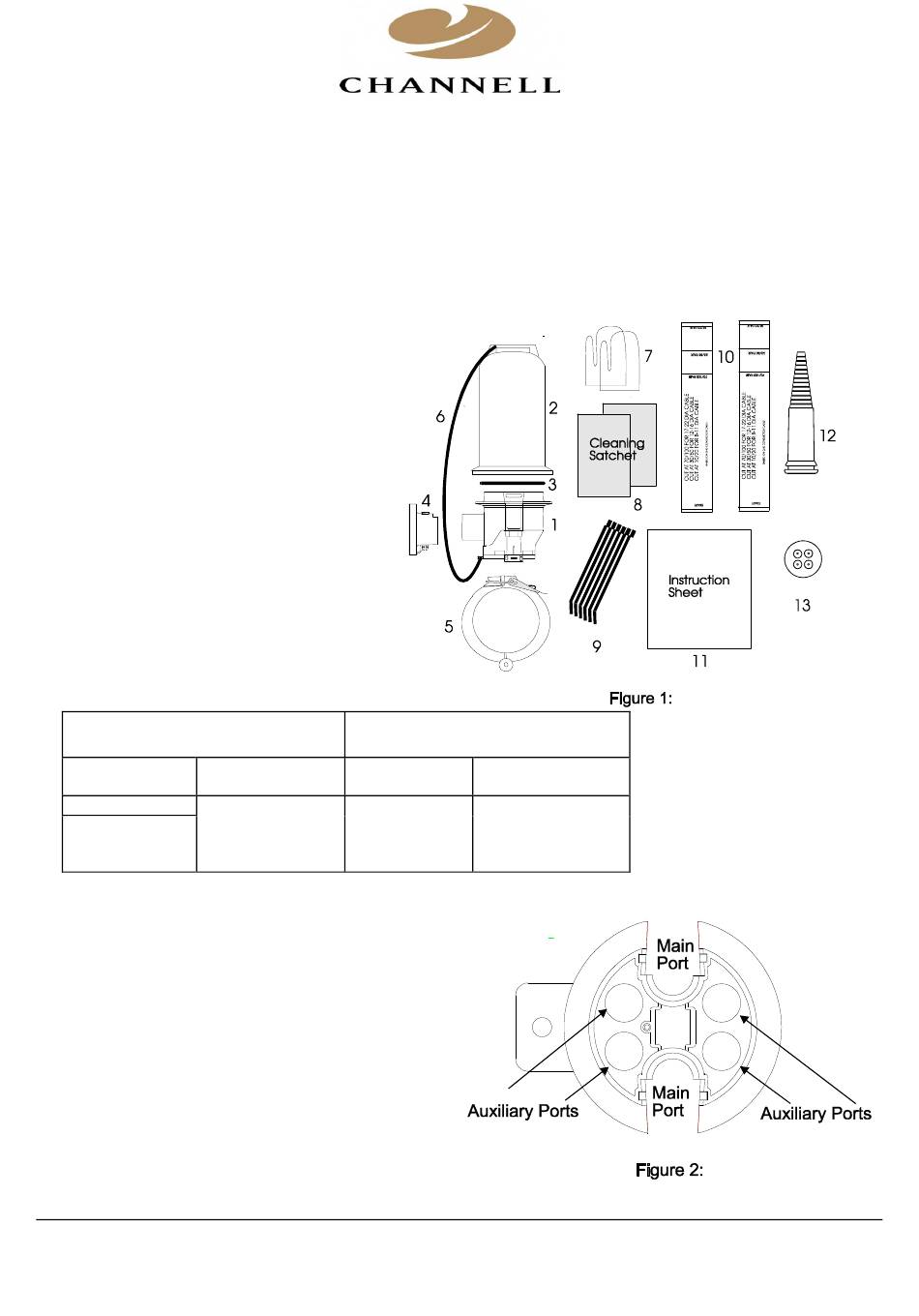

Kit Contents:

1. Base and Cable Support Bracket (1)
2. Dome (1)
3. Sealing 'O' Ring (1)
4. Mounting Block with Securing Pin (1)
5. Sealing Clamp (1)
6. Dome Securing Cord (1)
7. Protective Mittens (1)
8. Cleaning Sachets (2)
9. Cable Ties (6)
10. Main Port Sealing Tape (2)
11. Instruction Guide (1)
12. Single Cable Grommet (2)
13. 2 Pair Cable Grommet (2)
Main Ports Cable
Diameters
Maximum Cable
Configuration
1 x 22 mm
See section 2.3
For mutliple
entry
Configurations:
1.
For cable configurations see table 1.
2.
For Port locations see Figure 2.
3.
For Multiple Cables used for Maintenance work
only. Assess if the combined cables (excluding the
lead-in cables) will fit in the main port. Position
combined cables into main port, fit retention insert
(do not force), check cable group is free to move.
Channell Pty Ltd. PO Box 789, Blacktown NSW 2148 Australia
Phone : + 61 2 8884 4111 Fax: + 61 2 8814 8841
INSTRUCTION GUIDE
Aerial Openable Joint Closure 50 to 100 pair
Minimum Cable
Single Cable
Configuration
Grommet
1 x 8 mm
1 x 5 mm to
1 x 15 mm
Table 1:
1
Auxiliary Ports Cable
Diameters
2 Pair Cable
Grommet
1 x 4 mm to
4 x 6 mm
2:
Cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Channell Aerial Openable Joint Closure and is the answer not in the manual?

Questions and answers

Summary of Contents for Prysmian Channell Aerial Openable Joint Closure

  • Page 1 INSTRUCTION GUIDE Aerial Openable Joint Closure 50 to 100 pair Kit Contents: 1. Base and Cable Support Bracket (1) 2. Dome (1) 3. Sealing ‘O’ Ring (1) 4. Mounting Block with Securing Pin (1) 5. Sealing Clamp (1) 6. Dome Securing Cord (1) 7.
  • Page 2 Closure Base Installation: See Figure 3: 1. Secure closure mounting bracket to a secure surface (pole) as per your normal practices. 2. Insert cable ties into slots where required (below where cables are to be installed). 3. Fit the correct type cable grommet into the ports as required.
  • Page 3 4. Wearing the mittens supplied, clean the cable for 500 mm either side of the centre point using the cleaning sachet pad. 5. Mark the cables as per drawing in figure 6: 6. Using a sheath removal tool, score cable sheath between the sheath removal marks but do not remove the sheath.
  • Page 4 Cable Installation Auxiliary Ports: Single Entry Grommet: Figure 10: 1. Using scissors cut the Grommet to suit the cable diameter 2. Mark cable as shown 3. using a sheath removal tool, score cable to sheath removal mark, but do not remove the sheath 4.
