Summary of Contents for DEUTSCHMANN AUTOMATION SPEEDY Series
- Page 1 Instruction manual Dynamic switching accelerator SPEEDY Deutschmann Automation GmbH & Co. KG www.deutschmann.com | wiki.deutschmann.de...
- Page 2 Handbuch Art.-Nr: V3140E...
- Page 3 AUTOMATION reserves the right to carry out alterations to the described products in order to improve the reliability, function or design thereof. DEUTSCHMANN AUTOMATION only accepts liability to the extent as described in the terms and conditions of sale and delivery.
- Page 4 Deutschmann Automation GmbH & Co. KG Instruction manual dynamical switching accelerator SPEEDY V. 3.1 30.1.20...
-
Page 5: Table Of Contents
Suggestions ........7 EMC Directives for products of Deutschmann Automation . . . 8 Fields of application . - Page 6 Deutschmann Automation GmbH & Co. KG Instruction manual dynamical switching accelerator SPEEDY V. 3.1 30.1.20...
-
Page 7: Introduction
Deutschmann Automation GmbH & Co. KG Introduction Introduction On this manual This manual documents installation, functions and operation of the Deutschmann unit specified on the cover sheet and in the header. 1.1.1 Symbols Particularly important text sections can be seen from the adjacent picto- gram. -
Page 8: Emc Directives For Products Of Deutschmann Automation
EMC Directives for products of Deutschmann Automation Deutschmann Automation GmbH & Co. KG EMC Directives for products of Deutschmann Automation The installation of our products has to be carried out considering the relevant EMC directives as well as our internal instructions. -
Page 9: Fields Of Application
Deutschmann Automation GmbH & Co. KG Fields of application Fields of application When switching on and also switching off magnetic controlled connecting devices delays appear that consist of two components: • delay period for building up or reducing the magnetic field •... -
Page 10: Installation, Connection And Display

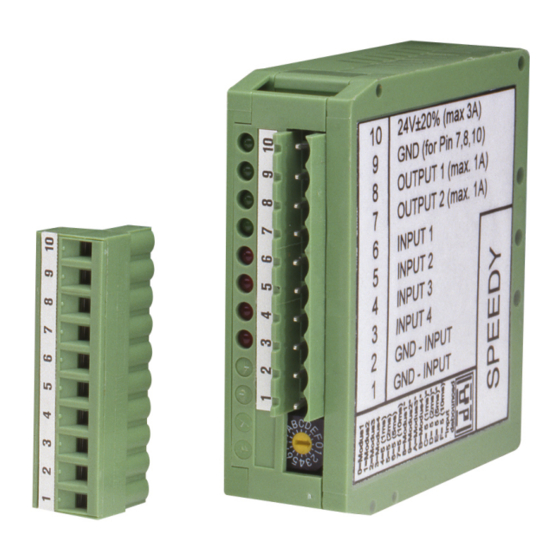

Installation, connection and display Deutschmann Automation GmbH & Co. KG Installation, connection and display Dimensions and mounting SPEEDY is supplied in a plastic housing for snap-mounting onto a commercially available EN mounting rail. The dimensions are shown in the drawing below:... -
Page 11: Leds
Deutschmann Automation GmbH & Co. KG Installation, connection and display The following assignment applies: Terminal Function Input holding level 42V (max. 50V) GND (reference for terminal 3-6) Input 4 (24V/max. 10mA) Input 3 (24V/max. 10mA) Input 2 (24V/max. 10mA) Input 1 (24V/max. 10mA) Output 2 (max. -
Page 12: Speedy Switching Modes
SPEEDY switching modes Deutschmann Automation GmbH & Co. KG SPEEDY switching modes Setting the switching modes The switching modes described below are selected via a rotary coding switch. The following assignment applies: Rotary-switch indication Switching mode Input interference suppression Switched off... -
Page 13: Switching Mode 1
Deutschmann Automation GmbH & Co. KG SPEEDY switching modes Switching mode 1 In switching mode 1, input 1 is switched to output 1 and input 2 is switched to output 2. The dura- tion of the overexcitation pulse is set at the inputs 3 and 4. -
Page 14: Switching Mode 2
SPEEDY switching modes Deutschmann Automation GmbH & Co. KG Switching mode 2 In switching mode 2, input 1 is switched to output 1 and input 2 is switched to output 2. Input 3 is an Enable input. If there is no signal at input 3, input 1 and input 2 are inoperable. The duration of the overexcitation pulses is set at input 4. -
Page 15: Switching Mode 3
Deutschmann Automation GmbH & Co. KG SPEEDY switching modes Switching mode 3 Switching mode 3 was developed specifically for twin solenoids (actuating elements). If input 1 has no signal, output 2 is switched. If input 1 receives a signal, output 2 is deactivated first. After deactivation, there is a pause **. -
Page 16: Switching Mode 4
SPEEDY switching modes Deutschmann Automation GmbH & Co. KG Switching mode 4 Switching mode 4 includes an RS flip-flop logic (RESET/SET logic). If 24 V is applied to input 2 (RESET) after power-up, output 2 is switched. If 24 V is also applied to input 1 (SET), output 1 is switched and output 2 is deactivated. -
Page 17: Switching Mode 5
Deutschmann Automation GmbH & Co. KG SPEEDY switching modes Switching mode 5 Switching mode 5 also includes an RS flip-flop which is set via inputs 1 and 2 and reset via inputs 3 and 4 (cf. description in switching mode 4). The pulse length is set via the rotary coding switch,... -
Page 18: Commissioning And Optimisation Of The Switching Time
Commissioning and optimisation of the switching time Deutschmann Automation GmbH & Co. KG Commissioning and optimisation of the switching time First, the inputs, outputs and the supply voltage for SPEEDY must be wired. When doing this, please note that the inputs feature optocouplers and a separate GND input. -
Page 19: Technical Data
Deutschmann Automation GmbH & Co. KG Technical data Technical data SPEEDY-100V SPEEDY-100V-1A SPEEDY-100V-4A Operating voltage 10... 30V, max 1 W (unloaded) 10... 30V, max 1 W (unloaded) Current consumption Max. 40mA (idle state) Max. 40mA (idle state) max. 3A (at switching instant) max. -
Page 20: Servicing
Servicing Deutschmann Automation GmbH & Co. KG Servicing Should questions arise that are not covered in this manual you can find further information in our • FAQ/Wiki area on our homepage www.deutschmann.com or directly in our Wiki on www.wiki.deutschmann.de •... -
Page 21: Internet
Deutschmann Automation GmbH & Co. KG Servicing Devices, that are sent in without an error description undergo a standard test. You have to bear the costs for that test even though no defect was found. Internet The current software WINLOC32 is available for download from our Internet-homepage www.deutschmann.com.
