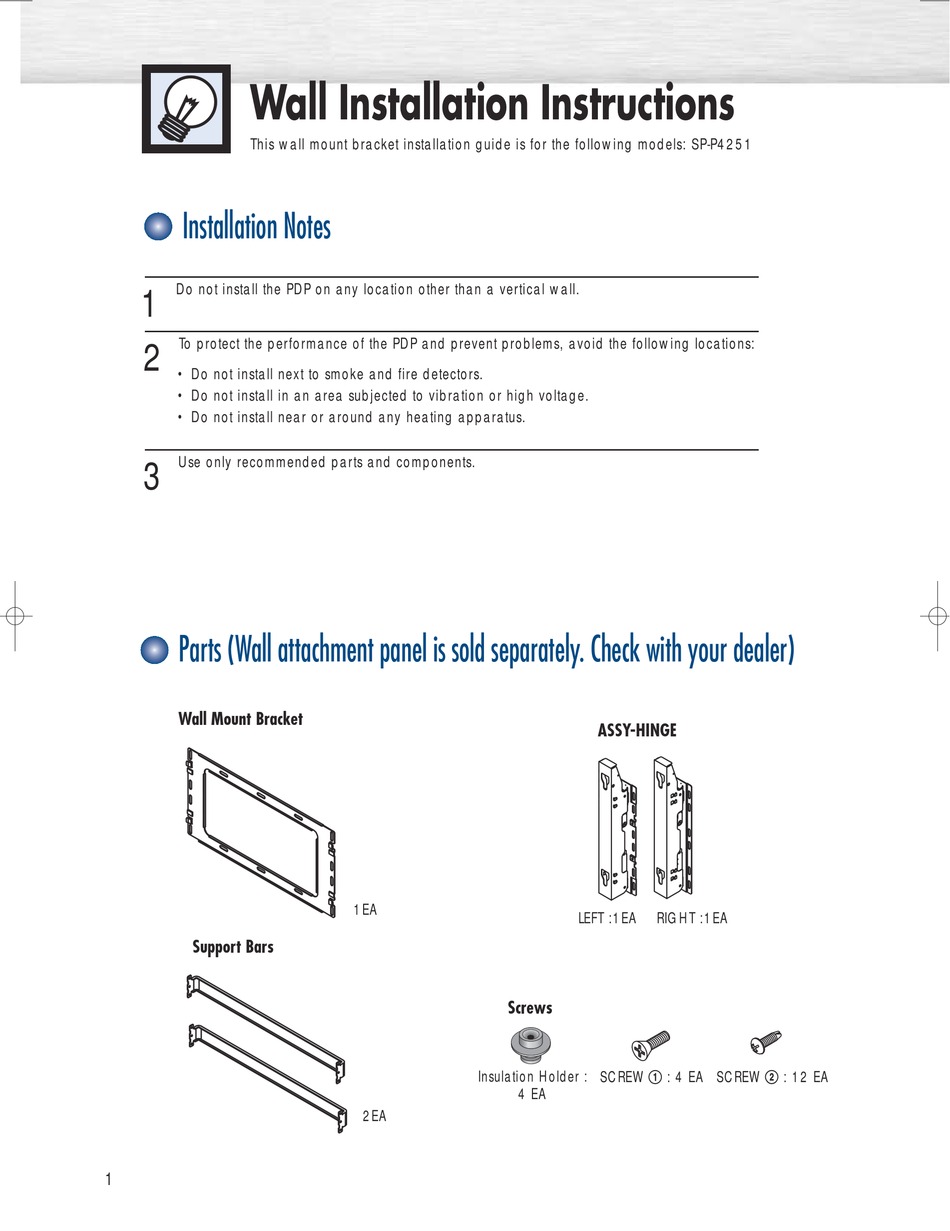

Wall Installation Instructions

This wall mount bracket installation guide is for the following models: SP-P4251

Installation Notes

Do not install the PDP on any location other than a vertical wall.
1
To protect the performance of the PDP and prevent problems, avoid the following locations:
2
• Do not install next to smoke and fire detectors.
• Do not install in an area subjected to vibration or high voltage.
• Do not install near or around any heating apparatus.
Use only recommended parts and components.
3
Parts (Wall attachment panel is sold separately. Check with your dealer)
Wall Mount Bracket
Support Bars
1
1EA
Screws
Insulation Holder :
2EA
ASSY-HINGE
LEFT :1EA
RIGHT :1EA
SCREW! : 4 EA SCREW@ : 12 EA
4 EA

Advertisement

Table of Contents
loading

Related Manuals for Samsung HP-P4261

Summary of Contents for Samsung HP-P4261

  • Page 1: Wall Installation Instructions

    Wall Installation Instructions This wall mount bracket installation guide is for the following models: SP-P4251 Installation Notes Do not install the PDP on any location other than a vertical wall. To protect the performance of the PDP and prevent problems, avoid the following locations: •...

  • Page 2: How To Assemble The Wall Mount Bracket

    How to assemble the Wall Mount Bracket The wall mount comes packaged in 3 parts. These parts must be assembled together. Please tighten the captive screw in the direction of the arrow after assembling the bracket. Install the Wall Mount Bracket after the screws are securely inserted into the wall.
  • Page 3 Wall Installation Instructions Fixing the PDP panel to the wall attachment panel bracket Remove the screws from the back of the PDP. Connect insulation holders to screws (see the illustration below). • If you are uncertain about installation, hire a specialist to install the wall mount bracket. •...

  • Page 4: How To Adjust Mounting Angle

    How to Adjust Mounting Angle Notice : Please secure the mounting bracket on the wall surface after setting its angle at 0°. Notice Factory default Please tighten the captive screw in the direction of the arrow after assembling the bracket. Change Angle Connecting External Devices to the PDP Note...

  • Page 5: How To Assemble The Stand-Base

    How to assemble the Stand-Base Assemble two support pins with the stand base and firmly secure both sides of the support pins using 8 screws provided. Assemble the PDP with the stand and firmly secure the PDP using 4 screws provided. ➤...

  • Page 6: Connecting Vhf And Uhf Antennas

    Connecting VHF and UHF Antennas Antennas with 75-ohm Round Leads If your antenna looks like this: Plug the antenna lead into the VHF/UHF terminal on the PDP. Use the Antenna Cable, an accessory included in the product package. it has 75-ohm round leads.

  • Page 7: Connecting Cable Tv

    Connecting Cable TV You can connect different cable systems to your PDP, including cable without a cable box, and cable with a cable box that descrambles some or all channels. Cable without a Cable Box Plug the incoming cable into the VHF/UHF terminal on the PDP.

  • Page 8: Cable With A Cable Box That Descrambles Some (But Not All) Channels

    Cable with a Cable Box that Descrambles Some (But Not All) Channels To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial cables (which you can buy from your Samsung dealer or any electronics store). Find and disconnect the cable that is con- nected to the ANTENNA IN terminal of your cable box.

  • Page 9: Connecting A Vcr To The Video Or S-Video/Audio Jack

    Connecting a VCR Connecting a VCR to the Video or S-Video/Audio jack Power Plug Audio Cable S-Video Cable Video Cable How to Connect Connect the Video/Audio cables between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP and VIDEO or S-VIDEO / L - AUDIO - R output jacks on the VCR.

  • Page 10: Connecting A Camcorder

    Connecting a Camcorder Viewing camcorder tapes PDP(SIDE AV3) REAR PANEL Power Plug How to Connect Connect a Video/Audio cable between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP and the VIDEO or S-VIDEO /AUDIO output jacks on the camcorder. (Note: For better video, you can use an S-VIDEO cable) Viewing Tapes 1.

  • Page 11: Connecting A Dvd Player

    Connecting a DVD Player This PDP displays the optimum picture in 720p mode. Playing DVD How to Connect Connect a Video Cable between the Y, P and Y/P output jacks on the DVD player. Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDP and the AUDIO output jacks on the DVD player.

  • Page 12: Connecting A Dtv Receiver

    Connecting a DTV Receiver (480p, 720p, 1080i) This PDP displays the optimum picture in 720p mode. Watching DTV Use a DVI-D connection cable. (sold separately) How to Connect Connect the cable or antenna to the antenna input jack on the DTV. Connect a Video cable between the Y, P and the Y, P (COMPONENT) or DVI output jacks on the DTV receiver.
