Summary of Contents for IPRO BV-A10R

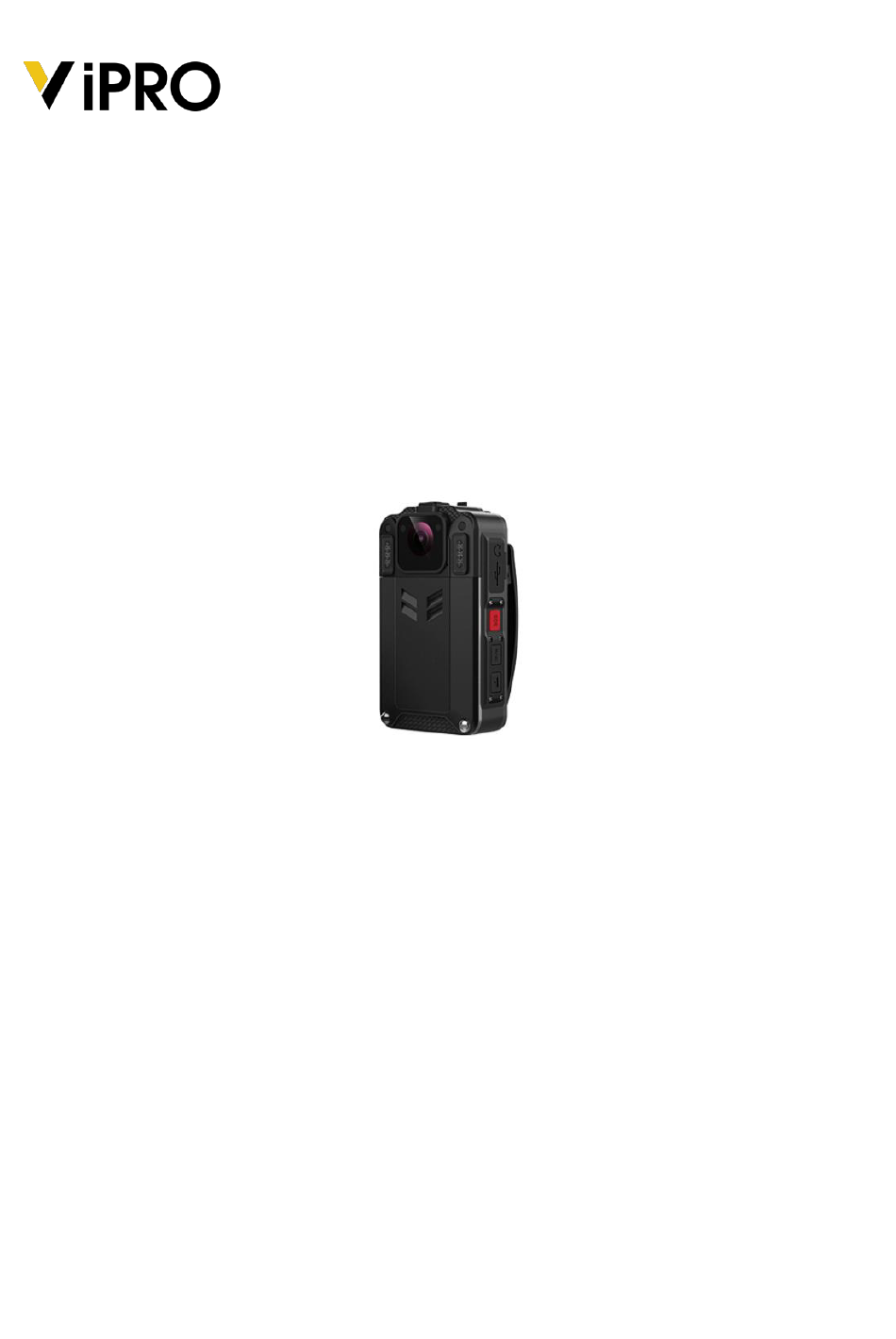

- Page 1 BODY WORN CAMERA BV-A10 USER MANUAL ML-BV-A10 -V1.2-EN Please read this manual carefully and thoroughly before any attempt to install and operate this product and retain it for your future reference.
- Page 2 User Manual l BV-A10 l V1.2...
- Page 3 User Manual l BV-A10 l V1.2 Preface Thank you for purchasing the BV-A10 4G LTE Full HD Body Worn Camera. The user-friendly design of this product, together with the multi-purpose back clip, ensures full angle video recording / control which is important to fulfill the purpose of evidence collection and law enforcement.
-
Page 4: Table Of Contents
User Manual l BV-A10 l V1.2 Content 1. Product Profile ....................................5 2. Product Description ..................................6 3.Technical Parameters ..................................8 4. Accessories ......................................9 5.Local Operation Instructions ................................ 10 5.1 Main interface ....................................10 5.2 Basic configuration..................................11 5.3 Video recording and inquire ..............................12 5.4 Recording and inquiry ................................ -
Page 5: Product Profile

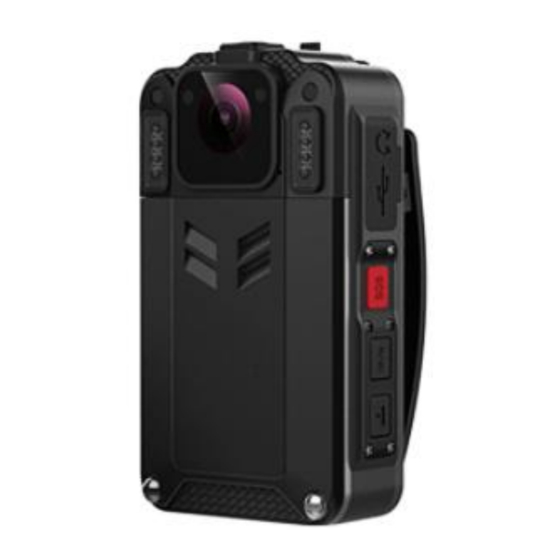

User Manual l BV-A10 l V1.2 1. Product Profile BV-A10 is a high-end 4G Full HD Body Worn Camera tailor-made for law enforcement application. With IP66 waterproof, dust-proof, shock and vibration-resistant design, the outstanding performance delivers clear and sharp images even under extremely low light conditions. BV-A10 features 120º... -
Page 6: Product Description
User Manual l BV-A10 l V1.2 2. Product Description LED White light Rear camera Infrared light Laser light Charging / Data port SOS Alarm Alternate function key Snapshot... - Page 7 User Manual l BV-A10 l V1.2 Power On/Off Lens PPT (talkback) 2.8” Touch screen Video record Video Mark Video Record Name Icon Function Description Power On/Off Long press the device switch, short press to get the screen dark/ wake Video Record Short press to take video recording Audio Record Short press to take audio recording...
-
Page 8: Technical Parameters
User Manual l BV-A10 l V1.2 3.Technical Parameters Product Series BV-A10 Operating System Android 5.1 System Processor Quad-core ARM @ Cortex-A53 MPCore Storage 1GB of RAM, 8GB of Storage Support dual card, 4G full Netcom and special network SIM CARD 1 module 4G full Netcom, micro SIM card (middle-size card), 1 module 1.4G/1.8G private network band;... -
Page 9: Accessories
User Manual l BV-A10 l V1.2 Background request, and then upload audio and video data, or video, picture WIFI network / Bluetooth 802.11b/g protocol, 2.4GHZ; Bluetooth: BT4.0 WCDMA(B1,B2,B5,B8) TD-SCDMA (B34,B39) Network format FDD-LTE(B1,B3,B7) TDD-LTE(B38,B39,B40,B41) Wireless Network GSM(B2,B3,B5,B8) Support 1.4G, 1.8G Frequency Private network (optional) Band LET private network Positioning... -
Page 10: Local Operation Instructions
User Manual l BV-A10 l V1.2 5.Local Operation Instructions Boot: Long press "Power button" to boot Shutdown: Long press "Power button", pop-up shutdown menu, click to shut down the device After powering on, click [Unlock] on the login screen to enter the user interface. The default password is empty. -
Page 11: Basic Configuration
User Manual l BV-A10 l V1.2 Local recording: to achieve local recording Document management: consulting, editing, uploading, etc. of pictures, videos, recordings, etc. System Status: View the related device application status information (maintain the same as the current Android intelligent video terminal function) ... -
Page 12: Video Recording And Inquire
User Manual l BV-A10 l V1.2 5.3 Video Recording and Inquire The device supports the camera for video preview, photographing, and video recording. Open the home interface "Local Preview" and click the corresponding function icon or button to complete the function operation. ... -
Page 13: Recording And Inquiry
User Manual l BV-A10 l V1.2 5.4 Recording and Inquiry The device supports local recording, open the main interface "local voice", click the corresponding function icon or button to complete the function operation. Recording: click the device "recording button" or tap the screen "recording" to record locally, the status bar shows the recording icon ... - Page 14 User Manual l BV-A10 l V1.2 General application configuration The device is used as an ordinary wireless video server to implement basic functions such as video surveillance, intercom, location, and storage, and access to platform. Platform address: Platform server IP address Platform port: access port number, default 8866 Pass through GAP: choose for complex network environment Connect/Disconnect: Click Connect/Disconnect Platform...
-
Page 15: File Management
User Manual l BV-A10 l V1.2 5.6 File Management Click the [File Management] button on the desktop to view the related files stored on the device. Tips: Body camera device can not delete any file. If you need to copy or delete, you need to use USB to connect the computer operation. -
Page 16: System Status
User Manual l BV-A10 l V1.2 5.7 System Status Click the [System Status] button to view the system-related status of the device. 5.8 Resource Allocation Click [Settings]-[Resource Configuration] to view or set the device attributes. - Page 17 User Manual l BV-A10 l V1.2 Click the [built-in camera] button to change the camera's specific parameters. Real-time resolution: 640*480; 1280*720; 1920*1080 optional, default: 1280*720 Photo resolution: 1600*1200; 2560*1920; 6528*4896 optional, default: 2560*1920 Real-time bit rate: VGA default is 1500; 720P default is 3500; 1080P default is 6500; the above bit rate supports self-definition modifications Click the [Video] button to set the automatic recording of the boot.
-
Page 18: Other Settings
User Manual l BV-A10 l V1.2 5.9 Other Settings Click the [Other Settings] button to adjust the device volume or display brightness. Note: The system version of this device will be updated from time to time, using automatic upgrade. Find the [Other settings] option to fill in the corresponding upgrade server information. - Page 19 User Manual l BV-A10 l V1.2 For more information, please visit www.vipro.com.tw. © 2018 ViPRO Corporation...
- Page 20 User Manual l BV-A10 l V1.2...
