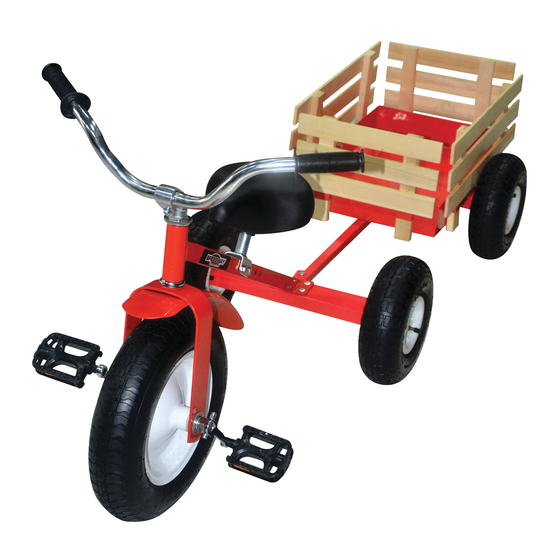

Tricycle and wagon combination

Advertisement

Quick Links

TRICYCLE AND WAGON COMBINATION
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this
product. Observe all safety information to protect yourself and others. Failure to observe the instructions may
result in property damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, please call 1-800-348-5004 or
email feedback@natitools.com
Model: 53498
*Actual product may vary slightly
53498
07/16
1

IMPORTANT SAFETY INSTRUCTIONS

PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the product safely and effectively.
Please read and follow these instructions and precautions carefully.
CALIFORNIA PROPOSITION 65
WARNING:
You can create dust when you cut, sand, drill or grind materials such as wood,
paint, metal, concrete, cement, or other masonry. This dust often contains
chemicals known to cause cancer, birth defects, or other reproductive harm.
Wear protective gear.
WARNING:
This product or its power cord may contain chemicals, including lead, known
to the State of California to cause cancer and birth defects or other reproductive
harm. Wash hands after handling.
IMPORTANT!
When using equipment, a few safety precautions must be observed to avoid
injuries and damage. Please read the complete operating manual with due
care. Keep this manual in a safe place, so that the information is available
at all times. If you give the equipment to any other person, give them
these operating instructions as well. We accept no liability for damage
or accidents which arise due to non-observance of these instructions
and the safety information herein.
WARNING!
TO AVOID SERIOUS INJURY
● Continuous adult supervision required.
● Never use near motor required.
● Never use near street, swimming pools, hills, steps, or sloped driveways.
● Never rids this tricycle on the public roads.
● Always wear shoes when using the tricycle.
● Riders should always wear a properly fitted helmet that complies with U.S.
consumer product safety commission (CPSC) standard 16 CFR. 1203.
● Inspect before each use.
● Do not use broken, bent, cracked or damaged parts.
● Age 3 and up only.
● Max loading capacity--tricycle: 130 lbs; wagon: 100 lbs.
● Allow only one rider.
feedback@natitools.com
1-800-348-5004
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 53498 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speedway 53498

  • Page 1 Please read and follow these instructions and precautions carefully. TRICYCLE AND WAGON COMBINATION CALIFORNIA PROPOSITION 65 Model: 53498 WARNING: You can create dust when you cut, sand, drill or grind materials such as wood, paint, metal, concrete, cement, or other masonry. This dust often contains chemicals known to cause cancer, birth defects, or other reproductive harm.
  • Page 2 ASSEMBLY INSTRUCTIONS TRICYCLE ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY SETUP 1. Place the back wheel (E) onto the back axle (A), put a flat You will need a slot screwdriver, hex screwdriver long nose pliers and an adjustable wrench washer (4) on the axle, use pin (5) and wheel cover (7) for assembly.
  • Page 3 TRICYCLE ASSEMBLY INSTRUCTIONS WAGON ASSEMBLY INSTRUCTIONS WAGON HARDWARE LIST SETUP 6. Description Qty’s To adjust the seat position, unscrew screws, place Bolt M8 x 45mm seat connector to match holes to the desired position, Washer Ø8mm tighten screws to lock seat in place. Nut M8 Washer Ø16mm NOTE: While seat installation/adjustment, reverse...
  • Page 4 PART LIST Part Description Limited Manufacturer Warranty Front Wheel Front Fork & Fender Bearing Head Set North American Tool Industries (NATI) makes every effort to ensure that this product Front Wheel Axle Shaft M8 Bolt of Axle Shaft meets high quality and durability standards. NATI warrants to the original retail consumer Pedal(Left side,normal threads) Crank(Left side,normal threads) a 1-year limited warranty from the date the product was purchased at retail and each...
