Active marine sensor box with:
Depth Sounder
Speed / Log
Temperature
NMEA 0183 Interface
User Manual
Issue 1.06
Connects to depth sounder transducer, and produces
NMEA 0183 depth codes DBT, DPT
Connects to a log hall-effect sensor, and produces
NMEA 0183 VHW, VLW Speed/ Log data
Connects to a 10k @ 25 degrees C temperature sensor
to produce NMEA 0183 MTW data
Full-differential RS485 interface allows connection to
any NMEA receiving device with minimum noise
Reprogrammable using a bi-directional RS485 interface
on a PC to allow upgrading of the software at any time
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Actisense DST Series
- Page 1 Active marine sensor box with: Depth Sounder Speed / Log Temperature NMEA 0183 Interface User Manual Issue 1.06 Connects to depth sounder transducer, and produces NMEA 0183 depth codes DBT, DPT Connects to a log hall-effect sensor, and produces NMEA 0183 VHW, VLW Speed/ Log data Connects to a 10k @ 25 degrees C temperature sensor to produce NMEA 0183 MTW data Full-differential RS485 interface allows connection to...
-
Page 2: Table Of Contents
Actisense Contents Important Notices....................... 3 Notices......................... 3 Foreword ........................3 Introduction ........................ 4 Technical features...................... 4 Connections........................ 5 Connecting a speed/log transducer to the DST box ..............6 Connecting a temperature transducer to the DST box..............6 Connecting a depth sounder transducer to the DST box ............6 Connecting to the battery supply .................... -
Page 3: Important Notices
Warning: Depth sounders are not designed to perform as navigational instruments or as devices to avoid grounding a vessel. Any such use of the Actisense depth output is at the vessel owner’s own risk and no responsibility will be accepted for any resulting boat damage or personal injury. -
Page 4: Introduction
The Actisense NMEA Depth sounder / Speed log / Temperature sensor (DST) product was developed to allow the connection of a standard passive (no electronics) depth sounder transducer to an instrument with a NMEA 0183 digital data input. The Actisense DST interfaces between these two otherwise incompatible elements. -
Page 5: Connections

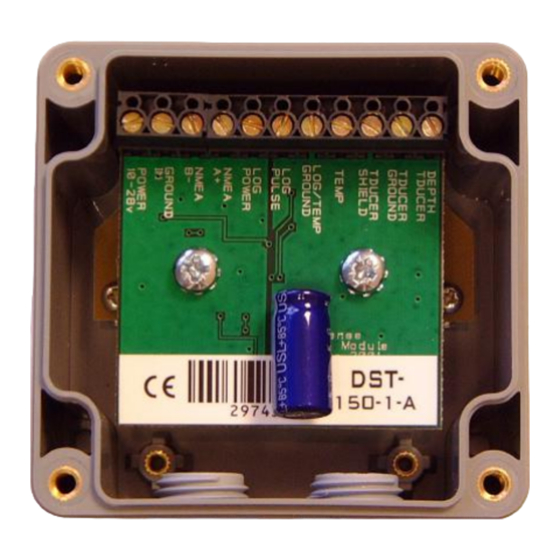

Pictures show the 150kHz model. The 200kHz & 235kHz models are identical, but use the label “Actisense DST 200” and “Actisense DST 235” respectively. Referring to figure 1 & figure 2, from left to right, the Actisense DST has connections for: - 1. Battery supply input. -
Page 6: Connecting A Speed/Log Transducer To The Dst Box
On Airmar “Triducer” type sensors, the log and temperature sensors share a ground pin as a return for the signal, and as the negative supply. The Actisense DST also designed to share this same ground return. If the required... -
Page 7: Connecting To The Battery Supply
Cable exits The Actisense DST box is provided with rubber sealing grommets around the edge of the box. It is recommended that the box is positioned with the double grommet at the bottom of the unit, so that two wires may exit downwards from the case. -
Page 8: Connecting The Nmea 0183 Output To Other Nmea Devices
Actisense Connecting the NMEA 0183 Output to other NMEA devices Refer to the datasheet “NMEA information sheet” available on the Actisense website for a more detailed description of NMEA interfacing. "NMEA +/A" NMEA circuitry Device "1" "NMEA -/B" "NMEA +/A"... -
Page 9: Using The "Flash" Upgrade Facility
Using the “Flash” upgrade facility Availability The current Actisense DST software program is a mature product that has evolved over the past 5 years, and as such, we believe it has been tested more rigorously than any other depth sounder device currently available. -
Page 10: Block Diagram
Temperature Temperature supply Transducer interface Figure 5 – Actisense DST Block Diagram Troubleshooting guide This guide will concentrates on all relevant troubleshooting issues. Problem / Error condition Possible cause / suggested correction Ensure that power is applied to the DST box. - Page 11 NMEA Depth / Speed / Temperature module Table 2 – DST Specifications Symbol Parameter Conditions Min. Max. Unit Supply Supply voltage Supply current, RMS Supply voltage = 12V Reverse Supply current Reverse Reverse voltage <= 400V µA (protection level) NMEA Logical ‘1’/stop bit -15.0 Input voltage between +/-...
-
Page 12: Compatible Transducer List
This is list is by no means exhaustive. Airmar have brought out many new transducers to the market, and any of the 200kHz and 235kHz models will work with the Actisense DST (Depth / Speed / Temp) module. The 150kHz model has been tested with the following manufacturers transducers. Seafarer transducers are essentially the same as the NASA model, so should be identical in performance, although we have not tested one as yet. -
Page 13: Ordering Information
BH12 3PF Telephone: 01202 746682 (International : +44 1202 746682) Fax: 01202 746683 (International : +44 1202 746683) Actisense on the Web : For advice and product details E-mail: support@actisense.com Website: www.actisense.com Active Research on the Web : For specialist consultancy and customisation E-mail: support@activer.com...
