Light Symphony LS30505SCC Instructions

PUMP CONTROL
It may be desirable to exclude circuits from the global 'Garden On/Off' buttons on
the remote, so they stay on when the lighting is switched off. This unit can be
programmed to ignore whole "GARDEN ON/OFF" commands by selecting 'Set-
up', pressing Garden Off (to switch off the circuit), then pressing the Dim Up &
Down keys together, and then moving the slide switch back to Switch or Dim. As
before, the unit can be programmed into its own 'Area(s)' but will now ignore global
'Garden On/Off'' commands.
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its
packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product
should be disposed of separately from regular household waste streams. It is your responsibility to dispose
of this and other electric and electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
NOTE;
Rights reserved to change the specification of this product without prior notice.
SPECIFICATIONS
Voltage 220-240V AC / 50Hz
Output Rating 250W
Minimum non-Inductive Load 0W (nil)
Minimum Inductive Load 10W each channel
Output Type Switched or Dimming (Leading-edge)
Protection Internal Thermal fuse
Weather Resistance IP68
Physical 50 x 50 x 25mm / 0.1Kg
Ambient Temp. -10°C to +40°C
INTRODUCTION
The 'Lighting Control Module' is for switching and/or dimming a lighting
circuit. It may be used with all lighting types including mains-halogen,
magnetic low-voltage transformers, most electronic transformers, (compact)
Fluorescent, Metal-Halide, Sodium and LED. Its output is selectable as
dimmable or switching and is suitable for all load types. Before use, ensure the
unit is set correctly, if unsure select 'Switching'. The unit is designed for
outdoor installation but take note of the safety instructions below.
SAFETY INSTRUCTIONS
REMEMBER ELECTRICITY CAN KILL
IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN
1. Mount the unit in a safe position to avoid possible damage by mowers or
other garden tools. This unit must not be buried without proper protection.
2. The unit is a double-insulated and therefore requires no earth.
3. The electrical supply must be protected at source by an 'Earth Leakage'
circuit breaker and suitably low rated fuse (0.5A per 100W's of load).
4. Where 230V power is routed outside, national wiring regulations must be
adhered to. For UK installations rugged 'Concentric' type cable is
recommended above ground.
5. Where 230V power cable is buried, 'Steel Wire Armoured' cable must be
used. Buried cables must be at least 450mm (18") below the surface.
6. BURN HAZARD: Take care not to touch hot lamps and keep children
away.
7. Fully loaded, this lighting module will generate up to 4½Watts of heat.
Ensure adequate space or ventilation to avoid over-heating

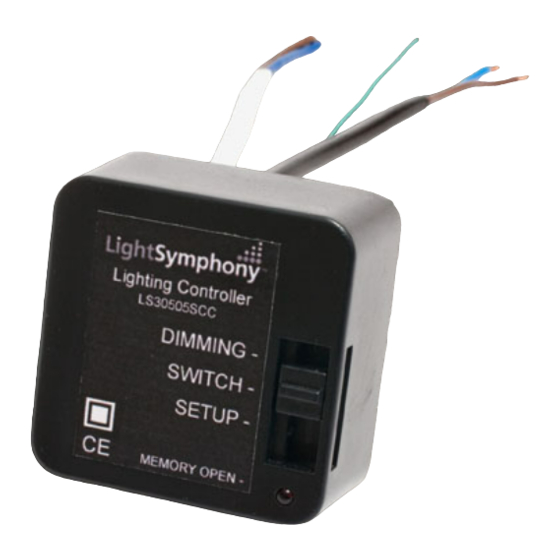

Single Channel 'Lighting Control Module'
ISSUE 1.0
COPYRIGHT © PM INTERNATIONAL LTD 2010
