Summary of Contents for Kingdy SA Series

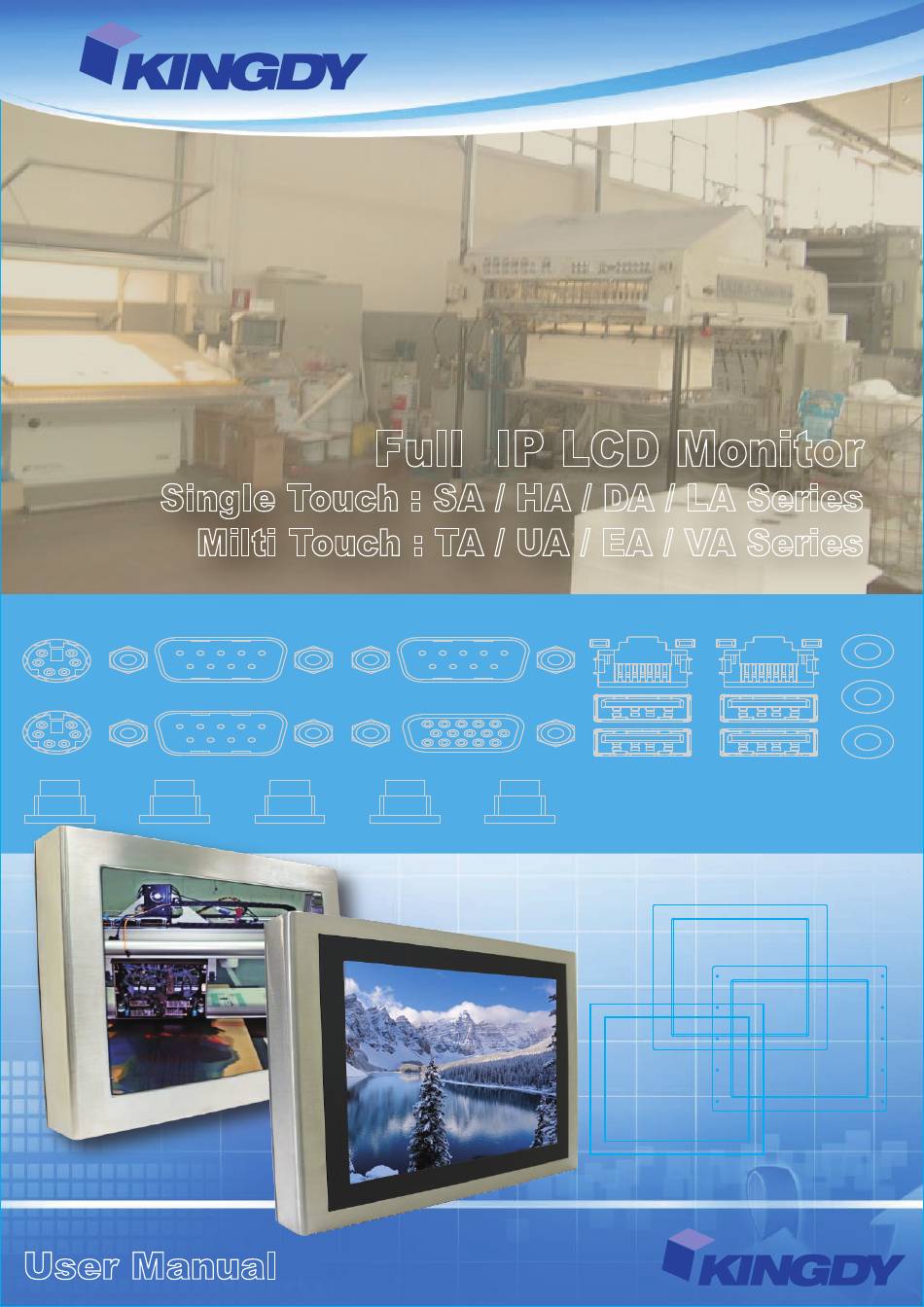

- Page 1 Full IP LCD Monitor Single Touch : SA / HA / DA / LA Series Milti Touch : TA / UA / EA / VA Series User Manual User Manual...
-
Page 2: Table Of Contents
Contents Chapter 1 General Information Package ................1-01 Safety Instructions ..............1-02 FCC & CE Statement ............1-03 Product Introduction ............1-04 Specification ..............1-05 OSD Controller ..............1-06 Collections ................1-06 Chapter 2 Mounting Installation Vesa Mount .................2-01 0-01... -
Page 3: General Information
General Information Package Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. ● 1 x Industrial Touch Monitor ● 1 x DC in Power Adapter ●... -
Page 4: Safety Instructions
General Information Safety Instructions Read Instructions: All the safety and operating instructions should be read before the equipment is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Cleaning: Unplug this equipment from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. -
Page 5: Fcc & Ce Statement
General Information FCC & CE Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received including interference that may cause undesired operation. The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. -
Page 6: Product Introduction
General Information Product Introduction Single Touch Monitor SM Series: Standard Condition HM Series: Sunlight Readable DM Series: Wide Temperature LM Series: Wide Temperature & Sunlight Readable Multi Touch Monitor TM Series: Standard Condition UM Series: Sunlight Readable EM Series: Wide Temperature VM Series: Wide Temperature &... -
Page 7: Specification
General Information Specification HA Series Touch Function IP65 chassis, IP65 connectors, Waterproof Design IP65 power adapter (alternative) Housing Design Stainless steel OSD Controller Rear side Sunlight Readable Up to 1600 nit Power Supply Standard / IP65-rated DC in 12V (default) or DC in 19V ~ 36V (optional) external power adapter I/O Ports (Default) 1 x VGA, 1 x USB or RS232 for resistive touch screen Operation Temperature... -
Page 8: Osd Controller
General Information OSD Controller ( I/O Port’s position - Bottom : for 15” Single Touch LCD Monitor only ) Auto Tuning Menu ( I/O Port’s position - Rear ) Power Down LED Indicator Touch Condition Panel Size Wide 16:9 Category Series Sunlight Wide... -
Page 9: Vesa Mount
VESA Mounting Installation Screws VESA Mounting Plate VESA Mounting Bracket Screw Holes for VESA Mounting Installation Step 1: screw the VESA mounting plate to the Panel PC Step 2: screw the VESA mounting bracket to the front of a wall or the front / back of an object dependingly Step 3: slide the VESA mounting plate onto the VESA mounting bracket 2-01... - Page 10 Inspiring a reliable solution User Manual Tel: 886-2-6621-8811 Fax: 886-2-8226-1518 Sales Email: sales@kingdy.com.tw Technical Support Email: tech@kingdy.com.tw http://www.kingdy.biz 10F, No. 2, Jian 8th Rd., Zhonghe Dist., New Taipei City 23511 Taiwan...
