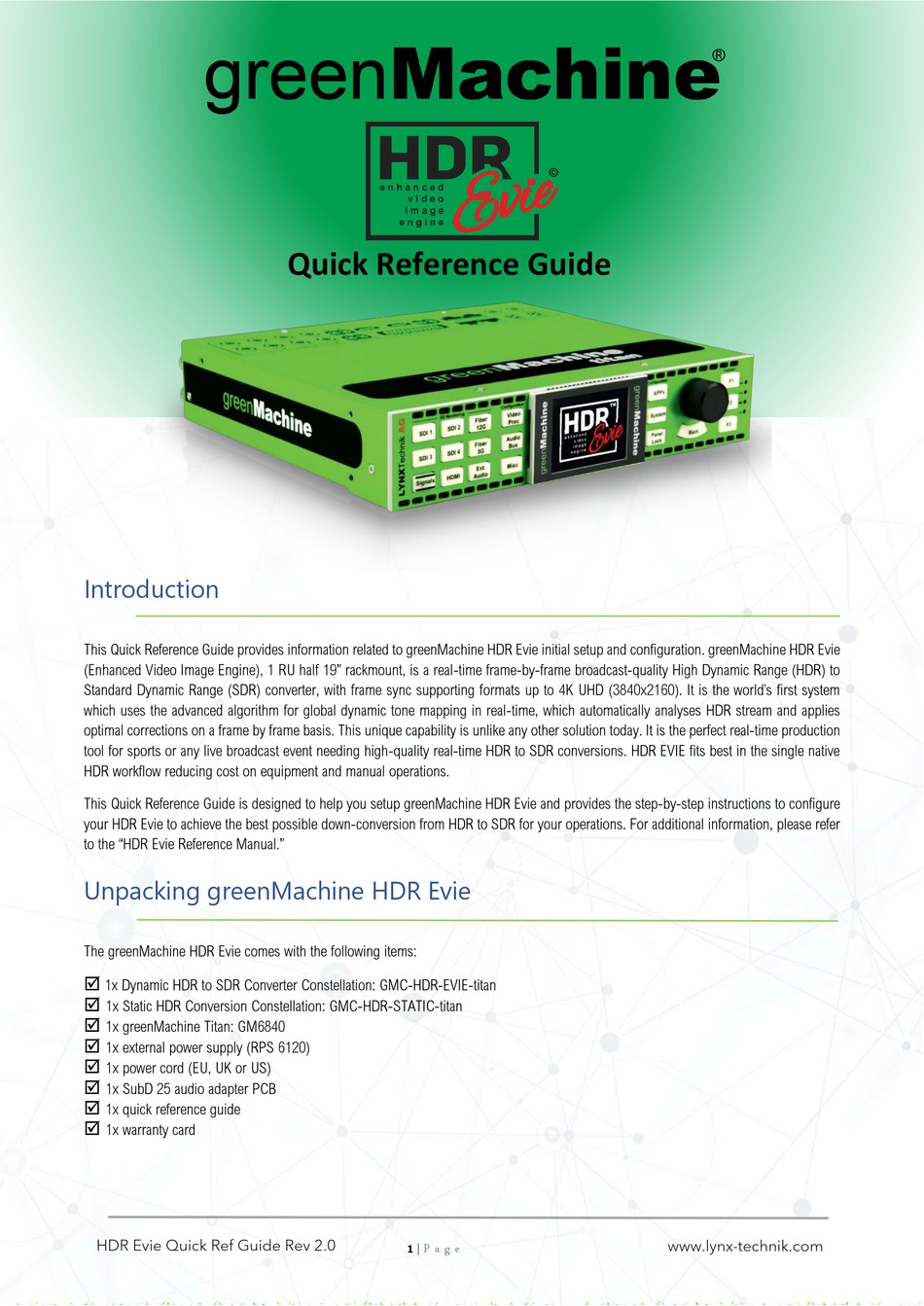

Introduction
This Quick Reference Guide provides information related to greenMachine HDR Evie initial setup and configuration. greenMachine HDR Evie
(Enhanced Video Image Engine), 1 RU half 19" rackmount, is a real-time frame-by-frame broadcast-quality High Dynamic Range (HDR) to
Standard Dynamic Range (SDR) converter, with frame sync supporting formats up to 4K UHD (3840x2160). It is the world's first system
which uses the advanced algorithm for global dynamic tone mapping in real-time, which automatically analyses HDR stream and applies
optimal corrections on a frame by frame basis. This unique capability is unlike any other solution today. It is the perfect real-time production
tool for sports or any live broadcast event needing high-quality real-time HDR to SDR conversions. HDR EVIE fits best in the single native
HDR workflow reducing cost on equipment and manual operations.
This Quick Reference Guide is designed to help you setup greenMachine HDR Evie and provides the step-by-step instructions to configure
your HDR Evie to achieve the best possible down-conversion from HDR to SDR for your operations. For additional information, please refer
to the "HDR Evie Reference Manual."
Unpacking greenMachine HDR Evie
The greenMachine HDR Evie comes with the following items:
1x Dynamic HDR to SDR Converter Constellation: GMC-HDR-EVIE-titan
1x Static HDR Conversion Constellation: GMC-HDR-STATIC-titan
1x greenMachine Titan: GM6840
1x external power supply (RPS 6120)
1x power cord (EU, UK or US)
1x SubD 25 audio adapter PCB
1x quick reference guide
1x warranty card
HDR Evie Quick Ref Guide Rev 2.0
Quick Reference Guide
1 |
P a g e
www.lynx-technik.com
Advertisement
Summary of Contents for Lynx greenMachine HDR Evie
- Page 1 HDR workflow reducing cost on equipment and manual operations. This Quick Reference Guide is designed to help you setup greenMachine HDR Evie and provides the step-by-step instructions to configure your HDR Evie to achieve the best possible down-conversion from HDR to SDR for your operations. For additional information, please refer to the “HDR Evie Reference Manual.”...
-
Page 2: Section 1: This Section Will Demonstrate The Initial Preparation Of Hardware And Software Setup
1. greenGUI Installation If you do not already have the greenGUI software installed on your PC or MAC, then download and install the greenGUI software from Lynx Technik AG website from the link below: https://www.lynx-technik.com/downloads/greengui/ Install and start the greenGUI software on your PC or MAC. -
Page 3: Ip Network Settings
The values given in the pictures above are for demonstration purposes only. Once IP settings are completed, exit the IP setting menu. The greenMachine will now be visible on the greenGUI running on your PC or MAC. HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e... -
Page 4: Video/Audio Connection
Evie in 4K mode Config. greenMachine Evie in Quad 3G mode Config. HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e... - Page 5 Note: To enable zoom in or zoom out, users can use the mouse scroller or can double click. * A new greenMachine HDR Evie comes with the pre-deployed HDR Evie constellation. In case the constellation type needs to be changed, follow the below steps:...
-
Page 6: Section 2: Hdr Evie Configuration
Section 2: HDR Evie Configuration This section will guide you in setting up a new greenMachine HDR Evie constellation. Note: The settings shown in this Quick Reference Guide is for demonstration purpose only. The user should set the values and parameters depending on the actual operational requirements and preferences. - Page 7 For more information on the Operation mode, refer to the HDR Evie Reference manual “Operations Mode.” There are a number of useful presets provided for quick operations. The following Presets presets are available to the user for selection: HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e...
- Page 8 Narrow: Narrow Range is the limited range of bits used for representing black and whites. For example, in a 10-bit signal, 64 bit represents the Black, and 940 bit represents the White. HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e...
- Page 9 The duration of this interpolation can be selected by this parameter. The default value is 0.05 and is the recommended value. 1.00: No smoothing at all (Caution!) HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com P a g e...
- Page 10 0.6: 60% global dynamic tone mapping, 40% static tone mapping 0.5: 50% global dynamic tone mapping, 50% static tone mapping 0.0: Static tone mapping only Default Value: 0.60 HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com 10 | P a g e...
- Page 11 The user can also select a group of parameters from the drop-down menu located at the left corner of the window called App, as shown below: HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com 11 | P a g e...
- Page 12 AES input source is connected to the external audio interface female Sub-D 25 connector of greenMachine titan. The following picture shows the crossbar: HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com 12 | P a g e...
- Page 13 AES input is connected, to display the input settings. Adjust the audio parameters as required. Select Outputs and adjust the audio parameters as required. HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com 13 | P a g e...
- Page 14 HDR Evie Quick Ref Guide Rev 2.0 www.lynx-technik.com 14 | P a g e...
