INSTALLATION AND MAINTENANCE INSTRUCTIONS

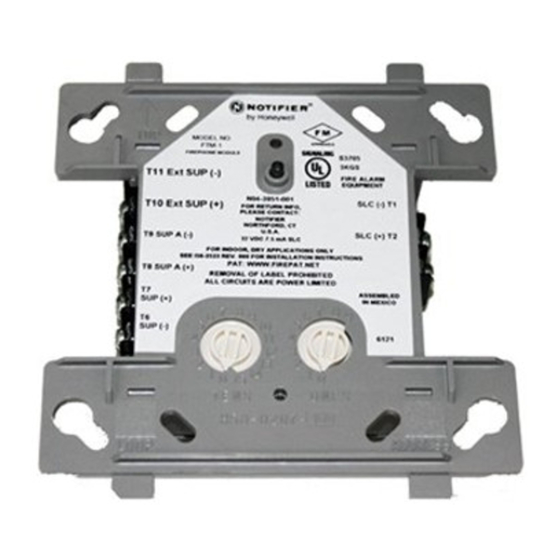

FTM-1 Firephone Control Module

Specifications

Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
Handset Offhook Resistance:
External Supply Voltage (between Terminals T3 and T4)
Maximum:
Temperature Range:
Humidity:
Dimensions:
Accessories:

Before Installing

This information is included as a quick reference installation
guide. Refer to the control panel installation manual for detailed
system information. If the modules will be installed in an existing
operational system, inform the operator and local authority that
the system will be temporarily out of service. Disconnect power to
the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this
equipment.

General Description

Firephone Control Modules are intended for use in intelligent,
two-wire systems, where the individual address of each module is
selected using the built-in rotary switches. This module is used to
connect a remote firefighter telephone to a centralized telephone
console. A ringing sound is provided at each off-hook handset
until it is connected to the console. Wiring to individual telephone
jacks and handsets is supervised, and status is reported to the
panel as NORMAL, TROUBLE, or TELEPHONE. This module has
two pairs of output termination points available for fault-tolerant
wiring, and includes a panel-controlled LED indicator.

Compatibility Requirements

To ensure proper operation, this module shall be connected to
compatible Notifier system control panels only (list available from
Notifier).

Mounting

This module mounts directly to 4" square electrical boxes (see
Figure 2A). The box must have a minimum depth of 2
mounted electrical boxes (SMB500) are available.

Wiring

NOTE:
All wiring must conform to applicable local codes, ordi-
nances and regulations. When using control modules in
nonpower limited applications, the CB500 Module Barrier
must be used to meet UL requirements for the separation
of power-limited and nonpower-limited terminals and
wiring. The barrier must be inserted into a 4"x4"x2
junction box, and the control module must be placed into
the barrier and attached to the junction box (Figure 2A).
The power-limited wiring must be placed into the isolated
quadrant of the module barrier (Figure 2B).
N500-69-00
www.PDF-Zoo.com
15 to 32 VDC
7.5 mA (LED on).
2.4mA (LED flashing).
400, 1500 Ohms
28 Volts DC
32˚F to 120˚F (0˚C to 49˚C)
10% to 93% Noncondensing
" H x 4" W x 1 " D (Mounts to a 4" square by 2
4 / /
1 1
2 4
SMB500 Electrical Box; CB500 Barrier
". Flush
/
1
8
"
/
1
8
1
1
1. Install module wiring in accordance with the job drawings and
appropriate wiring diagrams (Figures 3-4).
2. Set the address on the module per job drawings.
Note: Some panels support extended addressing. In order to
set the module above address 99 on compatible systems, care-
fully remove the stop on the upper rotary switch with thumb in
the direction shown in Figure 1.
3. Secure module to electrical box (supplied by installer), as
shown in Figure 2A.
Figure 1. Removing
rotary switch stop:
Figure 2A. Module mounting with barrier:
C0217-00
12 Clintonville Rd
Northford, CT 06472-1653
(203) 484-7161
" deep box.)
/
8
0
9
7 8
6 9
5 10
8 4 11 1
3 12
13
2
7
2
1 14
0
15
TENS
6 7 8 9
6 5 3
4
3
5 4
2
1
0
ONES
ADDRESS
LOOP
Figure 2B:
I56-1391-02
C0218-00
ISOLATED
QUADRANT
C0219-00
