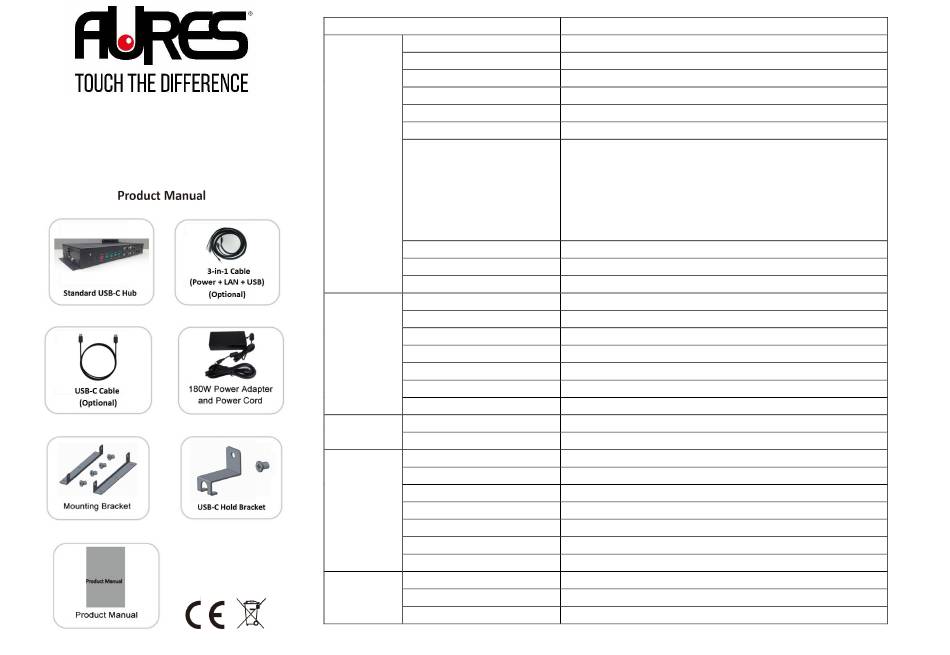

AURES Standard USB-C Hub Product Manual

Standard USB-C Hub with extended I/O
for AURES YUNO, JAZZ, TWIST and Wincor
iPOS
HUB-RETAIL-KL20
Model
Front Side LED
24V DC Input
24V DC Output
24V PoweredUSB port
12V PoweredUSB port
DB9 port
LAN port
USB port
Cash Drawer port
Cable Clamp
Left Side 24V DC Output
19V DC Output
Cable Clamp
USB IN port
LAN-A IN port
USB-C Hold Bracket
USB-C port
Rear Side Cash Drawer Voltage Setting
COM Voltage Setting
Others Power Supply
1.8m 3-in-1 Cable (Optional)
1.5m USB-C Cable (Optional)
Color / Material
Certification
Dimension
Weight
Environmental Operating Temperature
Storage Temperature
Relative Humidity
*All trademarks and copyrights are the property of their respective owners.
**Content is subject to change without prior notice.
Specifications
Standard USB-C Hub
Green when 180W power supply is connected
4-pin 24V DC input with lock connector x 1
3-pin with lock connector for thermal printer x 1
Max. 2A / port x 1
Max. 1.25A / port x 4
RS232 COM A / COM B / COM C / COM D
10/100/1000 Base-T x 1
(1) Under YUNO POS / Wincor iPOS configuration, only USB 2.0 x 4
and LAN-A can be used.
(2) Under JAZZ / TWIST POS configuration, USB 2.0 x 4, USB 3.0 x 2
and LAN-B can be used. *LAN-A can't be used!
USB 2.0 x 4 & USB 3.0 x 2
24 / 12 V Cash Drawer x 1
Cable management for USB cable
2-pin 24V DC Jack with screw connector for Wincor iPOS x 1
4-pin 19V DC output with lock connector for YUNO POS x 1
Cable management for USB cable
USB port connect to YUNO POS / Wincor iPOS system via 3-in-1 cable
LAN port connect to YUNO POS / Wincor iPOS system via 3-in-1 cable
Cable management for USB-C cable
USB-C port connect to JAZZ / TWIST POS system via USB-C cable
3-pin pin-header x 2
4-pin pin-header x 4
100 ~ 240 V AC-in, 180 Watt 24V 7.5A DC-out adapter x 1
Power cable (2-pin to 4-pin) x 1, LAN cable x 1 and USB cable x 1
USB-C cable x 1
Black Matte / SPCC
CE, LVD, FCC and RCM
300 x 125 x 43 mm (11.81 x 4.92 x 1.69 inches)
0.7 kg (1.54 lb.)
-20 ~ 40°C (-4 ~ 104°F)
-40 ~ 85°C (-40 ~ 185°F)
95% at 40°C (104°F), non-condensing
