Eyevis EYE-LCD Series Quick Start Installation Manual

Hide thumbs
1
2

Advertisement

Table of Contents

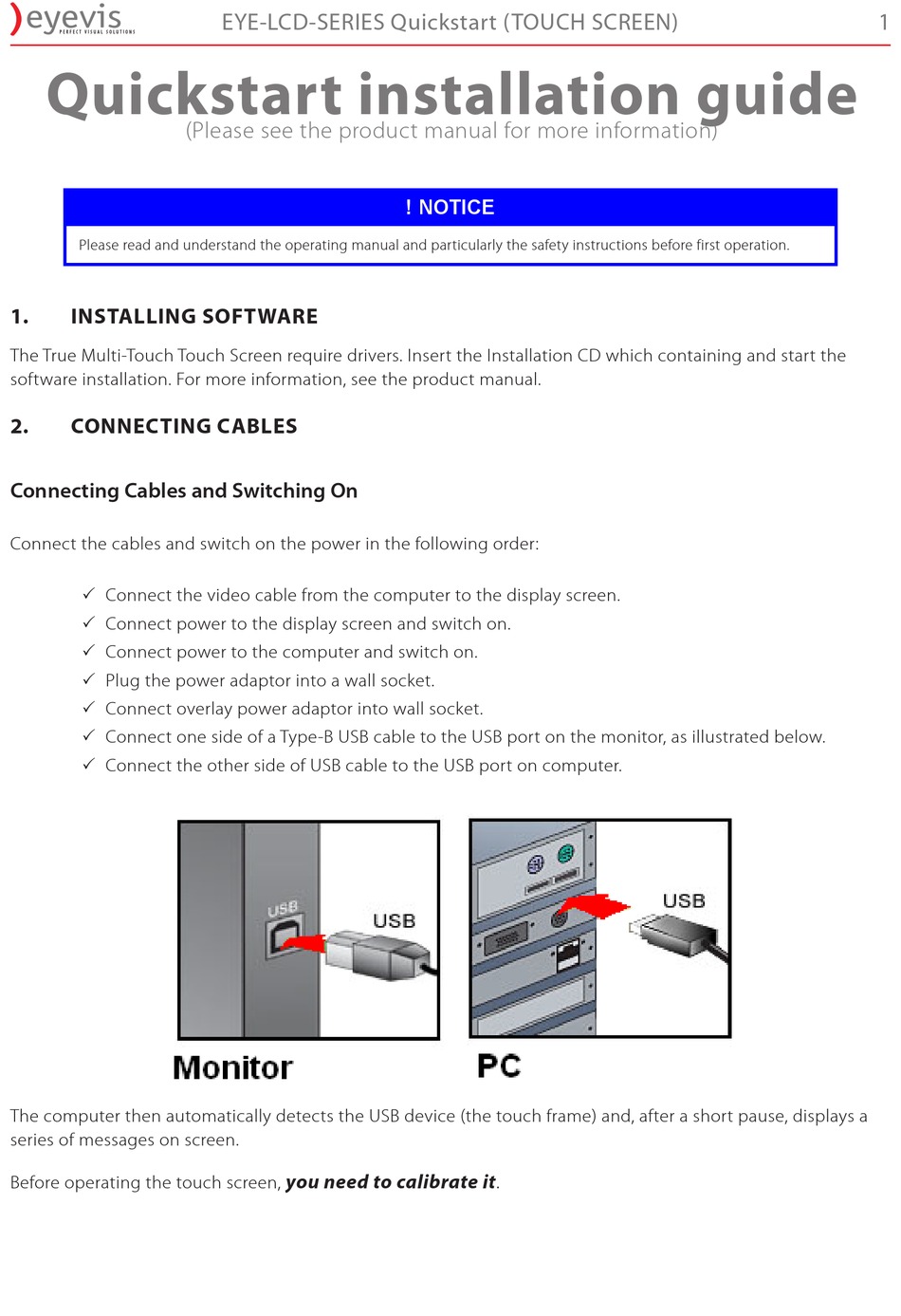

Quickstart installation guide
Please read and understand the operating manual and particularly the safety instructions before first operation.
1.

INSTALLING SOFTWARE

The True Multi-Touch Touch Screen require drivers. Insert the Installation CD which containing and start the
software installation. For more information, see the product manual.
2.

CONNECTING CABLES

Connecting Cables and Switching On
Connect the cables and switch on the power in the following order:
3 Connect the video cable from the computer to the display screen.
3 Connect power to the display screen and switch on.
3 Connect power to the computer and switch on.
3 Plug the power adaptor into a wall socket.
3 Connect overlay power adaptor into wall socket.
3 Connect one side of a Type-B USB cable to the USB port on the monitor, as illustrated below.
3 Connect the other side of USB cable to the USB port on computer.
The computer then automatically detects the USB device (the touch frame) and, after a short pause, displays a
series of messages on screen.
Before operating the touch screen,
EYE-LCD-SERIES Quickstart (TOUCH SCREEN)
(Please see the product manual for more information)
you need to calibrate it.
! NOTICE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EYE-LCD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Eyevis EYE-LCD Series

  • Page 1 EYE-LCD-SERIES Quickstart (TOUCH SCREEN) Quickstart installation guide (Please see the product manual for more information) ! NOTICE Please read and understand the operating manual and particularly the safety instructions before first operation. INSTALLING SOFTWARE The True Multi-Touch Touch Screen require drivers. Insert the Installation CD which containing and start the software installation.
  • Page 2 EYE-LCD-SERIES Quickstart (TOUCH SCREEN) CALIBRATING THE TOUCH SCREEN First close any applications so that you have a clear desktop with the normal mouse pointer showing. To enter calibration mode: 3 Double click icon then click Calibration Button Touch small cross on the screen until it becomes green then remove your finger. If cross is still black, remove your finger and approach it again.
