Leviton GreenMax DRC Series Quick Manual

GreenMax
®

WARNINGS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE
AND TEST THAT POWER IS OFF BEFORE WIRING!
• Do not mount near gas or electric heaters.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition.
• Test all LumaCAN cables for compliance to TIA-568B prior to interconnecting devices and
systems.
• Equipment should be mounted in locations and at heights where it will not be subjected to
tampering by unauthorized personnel.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Product Description

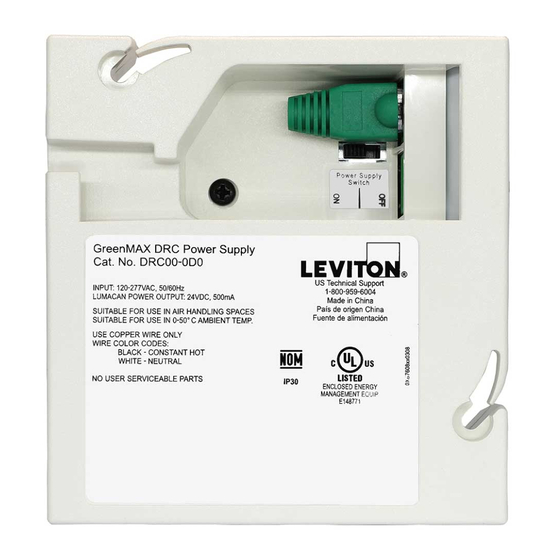

The GreenMAX DRC Power Supply provides power to the LumaCAN
network. Can be used to add power to a network when power is needed.

Installation

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
at circuit breaker or fuse and test that power is off before wiring!
NOTE: This is an ESD Sensitive Device. Use safe ESD handling
procedures when installing.

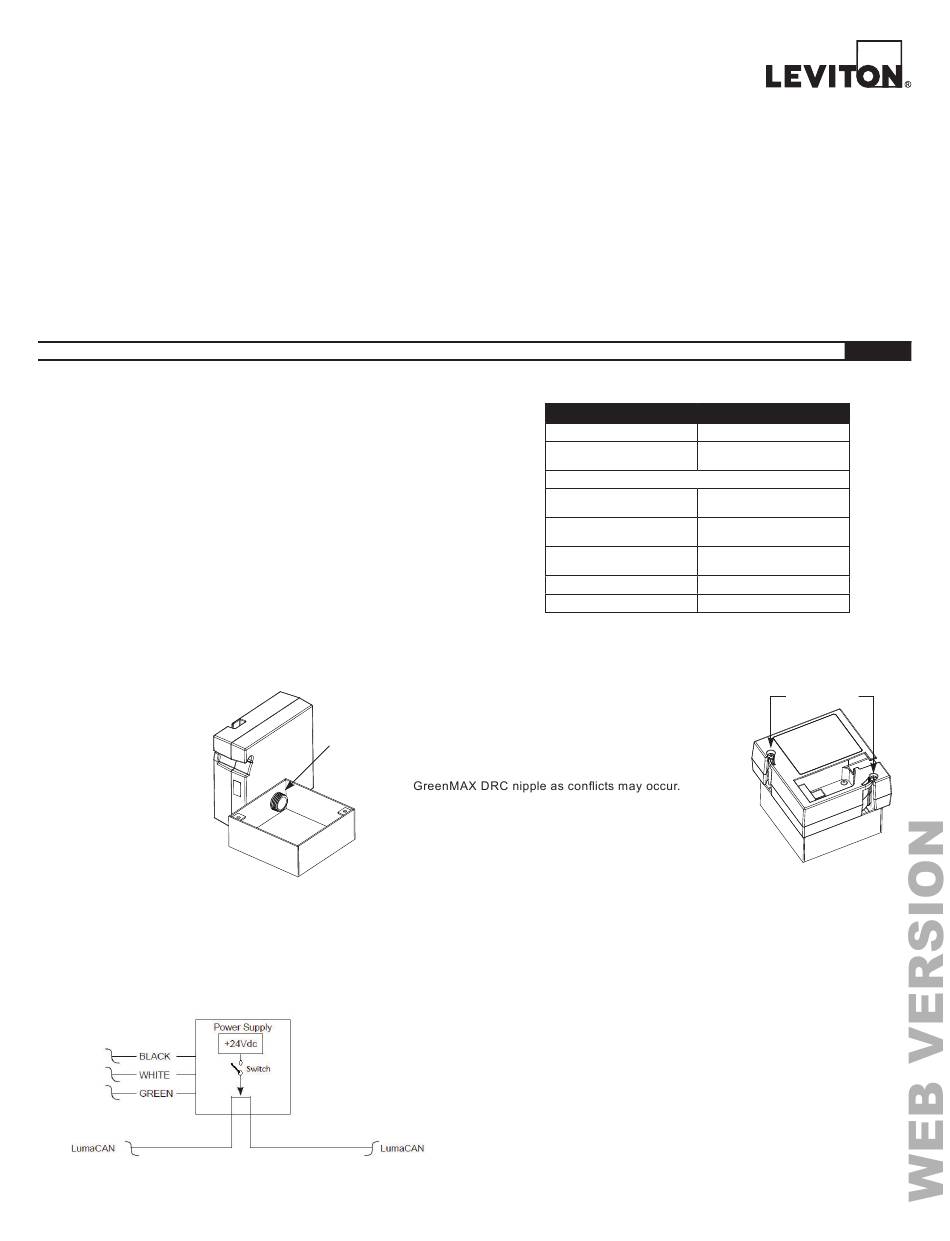

1.
Mounting Options.
a.
Mount to junction
box using nipple
and mounting nut
provided.
2.
Line Voltage Wiring: Connect per wiring diagram.
DRC Power Supply
TM
Cat. No. DRC00-0D0
INSTALLATION AND QUICK START SHEET
b.
Mount to top of 4 in. sq. junction box with minimum
volume 30.3 cu. in. or greater (4 in. x 4 in. x 2.125 in.)
using the provided screws.
Nipple
NOTE: Ensure that conduit/cable entry clamp is
located in a corner of junction box opposite the
NOTE: Dress wires to provide enough clearance
when device is installed.

CAUTIONS

• Do not use this equipment for other than intended use.
• For indoor applications only.
SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Cat. No.
Input Voltage/Frequency
Input Power
Max
Standby
LumaCAN Data
LumaCAN Power
IP Rating
DI-000-DRC00-02A
ENGLISH
DRC00-0D0
120-277VAC, 50/60Hz
17.5W @ 120V
16.5W @ 277V
0.3W @ 120V
0.45W @ 277V
Pass-through
RJ-45 connectors
500mA, 24Vdc
IP30
Mounting Screws
