Akribis ITF-21-BISS-MIT User Manual

Biss c to mitsubishi serial adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Akribis Systems Pte Ltd
Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5
Singapore 569876
Tel: +65 6484 3357 Fax: +65 6484 3361
http://www.akribis-sys.com
RCB Reg No: 200410879N
GST Reg No: 20-0410879-N

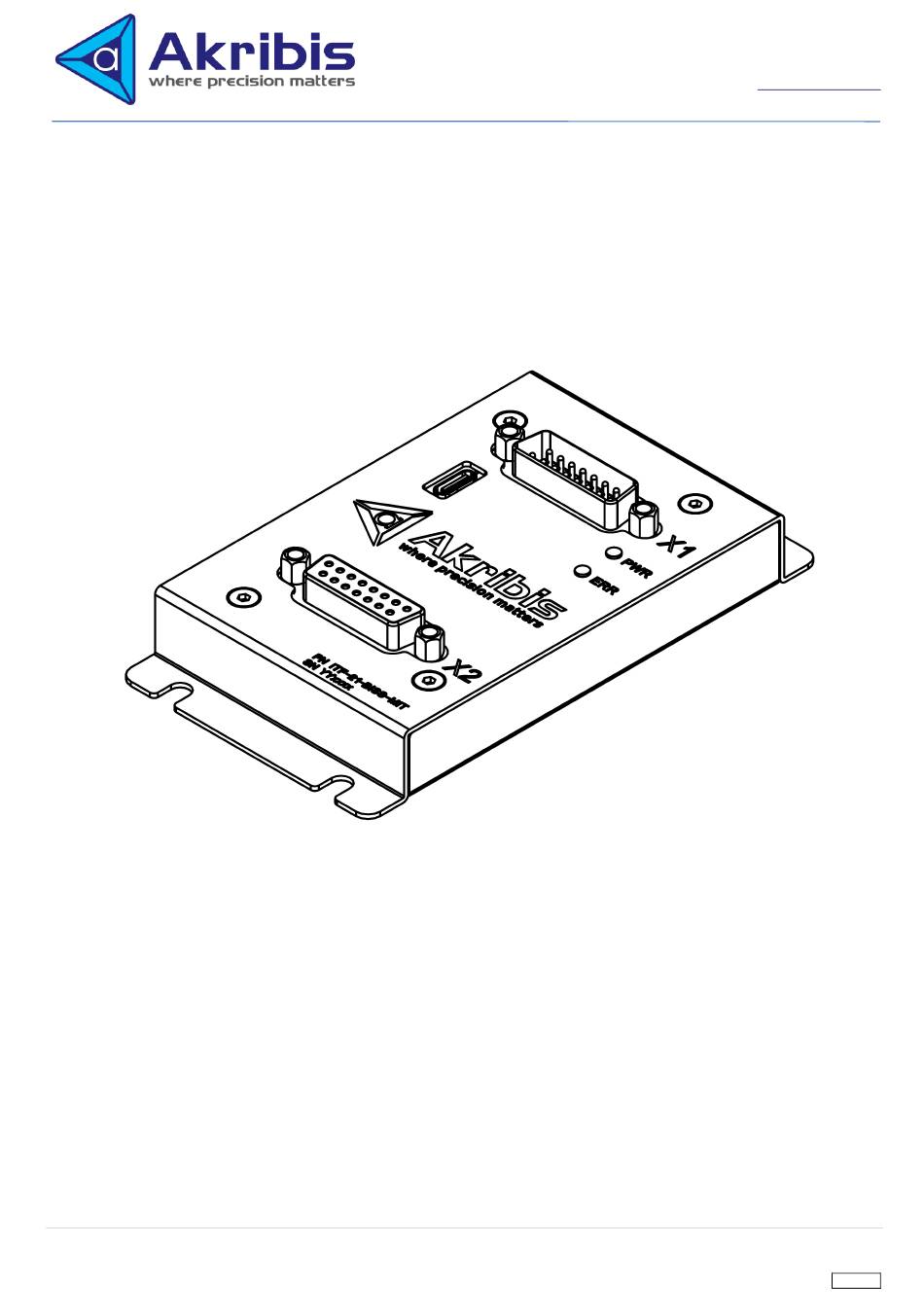

User Manual of ITF-21-BISS-MIT
(BiSS C to Mitsubishi Serial Adapter)
1 |
P a g e
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. SHOULD YOU HAVE ANY QUESTION, PLEASE FEEL FREE TO CONTACT OUR SALES
REV 1.0.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITF-21-BISS-MIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Akribis ITF-21-BISS-MIT

  • Page 1 RCB Reg No: 200410879N GST Reg No: 20-0410879-N User Manual of ITF-21-BISS-MIT (BiSS C to Mitsubishi Serial Adapter) P a g e THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. SHOULD YOU HAVE ANY QUESTION, PLEASE FEEL FREE TO CONTACT OUR SALES...

  • Page 2: Table Of Contents

    5. Architecture of Adapter..............................9 BiSS C Interface ................................9 Request Cycle Rate ..............................10 Max Allowable BiSS C Cycle of Adapter ........................10 Default BiSS C Interface Setting of ITF-21-BISS-MIT ....................11 Mitsubishi Serial Interface ..............................11 Adapter Alarm ................................13 6. Setting Configuration ..............................13 Setting Supported ................................14 7.

  • Page 3: Dimension

    Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N 1. Dimension 2. Signal and Wiring LED Indicator Definition...

  • Page 4: Pinout

    Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N Pinout Connector X1 - DSUB 15 Male, to be connected to MR-J4 Servo Amplifier (4 wire – full duplex)

  • Page 5: Connector X2 - Dsub 15 Female, To Be Connected To Biss C Encoder

    : Reserved Shielding Minimise noise by ensuring the interface cable shield is connected to connector Suggested Extension Cable MR-J4 servo amplifier to ITF-21-BISS-MIT Cable : Up to 1m is recommended ITF-21-BISS-MIT to Encoder Cable : Up to 20m only Strain Relief...

  • Page 6: High Level Schematic Of Typical Application

    GST Reg No: 20-0410879-N 3. High Level Schematic of Typical Application Refer to chapter 4. Quick-start Guide for part number of MR-J4 to ITF-21-BISS-MIT Interface Cable NOTE: ITF-21-BISS-MIT is only supported by two series of MR-J4 servo amplifier: MR-J4-_B-RJJ001 and...

  • Page 7: Quick-Start Guide

    Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N 4. Quick-Start Guide MR-J4 Servo Amplifier BiSS C to Mitsubishi Serial Adapter...
  • Page 8 BISS-MIT in default supports 22-bit rotary BiSS C encoder and Mitsubishi 2 wire (half duplex) communication. To use ITF-21-BISS-MIT with other number of bits of position data of rotary BiSS C encoder or Mitsubishi 4 wire (full duplex) communication, user need to configure the setting of ITF-21-BISS-MIT with PC software accordingly via USB-C.

  • Page 9: Architecture Of Adapter

    BiSS C Interface The BiSS C Master module of ITF-21-BISS-MIT use BiSS C (unidirectional) serial protocol. It is designed to work in a point-to-point configuration and must be installed in a “single Master, single Slave” network. Besides, it does not support line delay compensation.

  • Page 10: Request Cycle Rate

    Max Allowable BiSS C Cycle of Adapter [ IMPORTANT! ] To ensure ITF-21-BISS-MIT function properly, the BiSS C cycle period should not exceed 102μs. Basically, ITF-21-BISS-MIT can support any situation as long as the requirement of Max Allowable of BiSS C Cycle of ITF-21-BISS-MIT of 102μs is adhered.

  • Page 11: Default Biss C Interface Setting Of Itf-21-Biss-Mit

    When alarm 2A.N is triggered (where N = Alarm No. shown below) at MR-J4 driver, it means MR-J4 driver received at least one error from ITF-21-BISS-MIT. Refer to the corresponding alarm no. shown below for the root cause. Alarm No.
  • Page 12 The root causes of Mitsubishi Alarm no. 3 and 4 can be further diagnosed using PC software. Refer to diagnostic part of software. Troubleshooting for Mitsubishi Alarm 1. What will happen if driver is turned on without connected to ITF-21-BISS-MIT? Or 5V and Gnd of driver interface cable is not connected correctly. Answer: Mitsubishi Alarm 16.3 will be triggered.

  • Page 13: Adapter Alarm

    6. Setting Configuration The setting of ITF-21-BISS-MIT below is configurable by writing setting desired into the flash of ITF-21-BISS-MIT thru PC software via USB-C. Note: power cycle (power off and on of adapter) is required to take effect after configuration.

  • Page 14: Setting Supported

    The default BiSS C setting above in general can support most of the situations as long as the total encoder cable length requirement is ≤ 20m. For special situations which violates the requirement above and thus customised firmware is required, please enquire Akribis System sales. 14 | P a g e THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
  • Page 15 Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N Example 1 BiSS C Encoder Used : 22-bit, rotary...
  • Page 16 Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N Example 2 BiSS C Encoder Used : 26-bit, rotary...
  • Page 17 Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N Example 3 BiSS C Encoder Used : 27-bit, rotary...
  • Page 18 Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N Example 4 BiSS C Encoder Used : 32-bit, rotary...

  • Page 19: Itf-21-Biss-Mit Firmware Version

    This section shows the usage of the InterfaceAdapterConfigurator.exe Installation 1. Launch the setup to install the software. To get the setup of PC software, please contact Akribis System sales Connection 1. Connect ITF-21-BISS-MIT to PC software through USB-A to USB-C cable 2.
  • Page 20 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N Click on “connect” button to connect to ITF-21-BISS-MIT. 7. If “device not found” error message appears, flipped the orientation of USB-C connector and repeat the previous step. 20 | P a g e THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

  • Page 21: Setting Configuration

    8. If the connection is successful, the “connect” button will turn green and show “connected”. The configuration setting of ITF-21-BISS-MIT will be read and shown in “Information” page as shown below. User can verify the configuration setting of the adapter to ensure compatibility with the encoder and driver. User can also check whether the firmware version is up-to-date.
  • Page 22 Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N 3. Configure the setting accordingly: Setting Value Allowed...

  • Page 23: Firmware Download

    GST Reg No: 20-0410879-N Firmware Download Firmware of the ITF-21-BISS-MIT will be revised from time to time for reason like patch and new feature. Follow the step below to do firmware update. 1. Click on […] button to browse for the firmware file which is in “.rpd” format. After that, the checksum of the firmware file will be displayed.
  • Page 24 GST Reg No: 20-0410879-N 6. Sometimes, user want to verify whether the firmware download into ITF-21-BISS-MIT is successful or same as the firmware file browsed. To do so, click on verify icon button. It takes sometimes for the firmware to be read out from ITF-21-BISS-MIT flash memory.

  • Page 25: Diagnostic

    RCB Reg No: 200410879N GST Reg No: 20-0410879-N Diagnostic 1. ITF-21-BISS-MIT will turn on red LED if error is detected. The root causes can be diagnosed with Diagnostic page of PC software. Refer to Adapter Alarm section for detail explanation of the adapter alarm info.

  • Page 26: Document Revision History

    Akribis Systems Pte Ltd Blk 5012 Techplace II #01-05 Ang Mo Kio Avenue 5 Singapore 569876 Tel: +65 6484 3357 Fax: +65 6484 3361 http://www.akribis-sys.com RCB Reg No: 200410879N GST Reg No: 20-0410879-N 9. Document Revision History Revision No. Date Changelog 1.0.0...
