Summary of Contents for akrometrix DIC

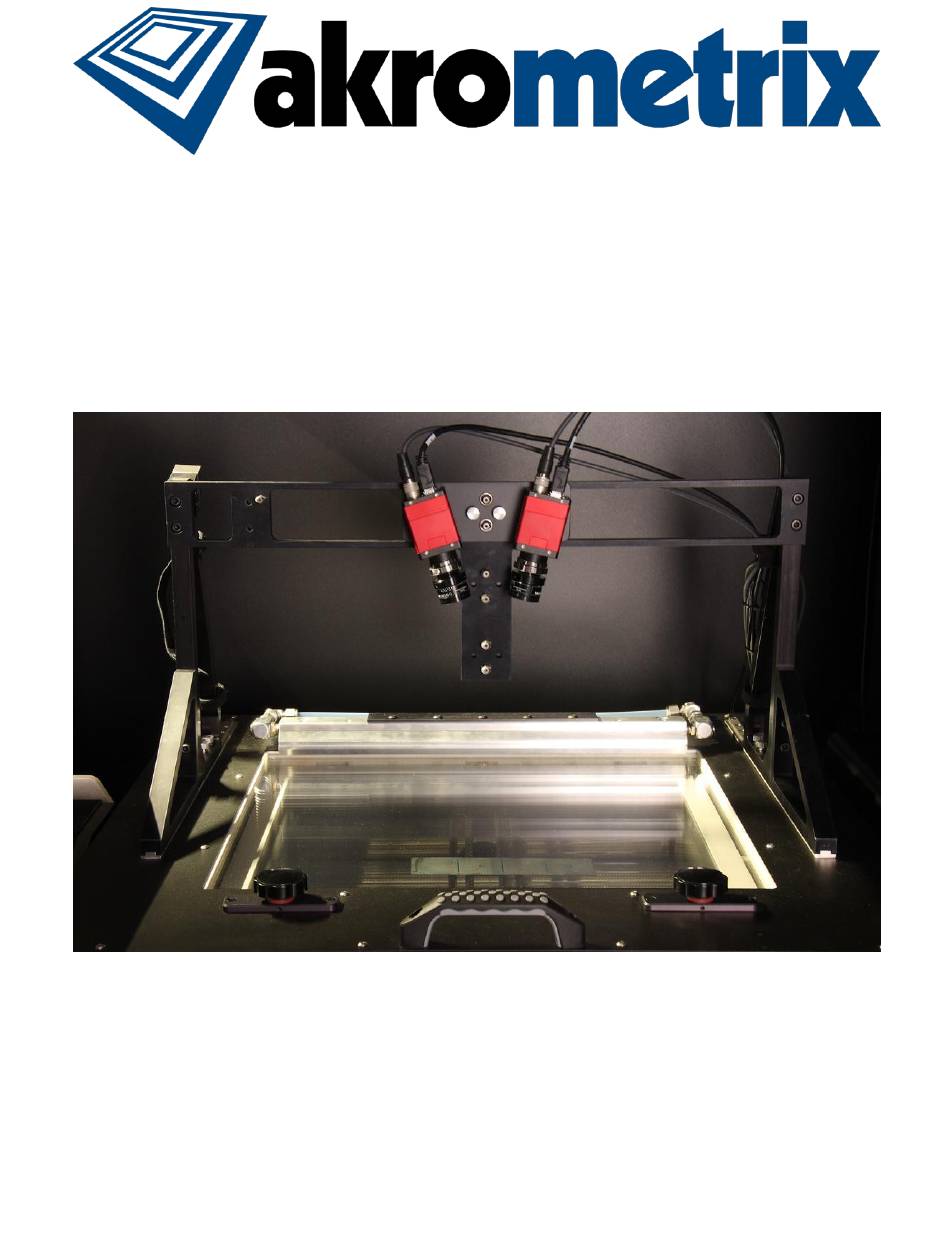

  • Page 1 User Manual...
  • Page 2 Akrometrix makes no warranty of any kind with respect to this TherMoiré® is a registered information. trademark of Akrometrix, LLC. Akrometrix shall not be liable for any direct, indirect, incidental, consequential, or other damage alleged in connection with the furnishing or use of this information.

  • Page 3: Table Of Contents

    DIC User Manual DIC User Manual Contents 1 Introduction ......................... 4 1.1 Overview ........................ 4 1.2 Warnings and Precautions ..................4 1.3 System Configuration ..................... 6 1.4 Technical Support ....................6 2 Basic System Set-up ....................8 2.1 System Set-up ....................... 8 2.2 System Alignment ....................

  • Page 4: Introduction

    Warnings and Precautions 1.2.1 Health and Safety Hazards  The DIC module is designed to work with the AXP or Studio PS400 system. Do not operate the DIC system separately. Doing so can cause potential damage of the DIC components.
  • Page 5  Do not install additional software on the system computer, change computer system settings, or upgrade system software or hardware without consulting Akrometrix. Unauthorized modifications can cause problems in normal system operation.  Handle the glass grating with care. Make sure there is adequate clearance between sample and grating before closing the oven lid.

  • Page 6: System Configuration

    Oven Figure 1.3 DIC System Diagram Figure 1.3 shows the layout of the DIC system in the AXP or Studio PS400. Essentially, the system consists of two 1.4 megapixel CCD cameras mounted above the system’s computer controlled infrared oven. Unlike Shadow Moiré, DIC does not require an optical grating.
  • Page 7 DIC User Manual reference images, and final results and a description of data acquisition and/or analysis conditions. If the problem concerns changes or failure in general system operation, please describe any events or system modifications that occurred immediately before the problem arose.

  • Page 8: Basic System Set-Up

    2. Ensure that the TherMoiré system has been shut down. 3. Remove the grating from the oven lid before loading the DIC system. The DIC system cannot be operated with the grating in place.
  • Page 9 Figure 2.3 Camera Sub-assembly, Backside 7. Place the DIC assembly support (Common Crossbar Mount Support with two Carriage Assembly Support Triangles) onto the two glide rails located on two sides of the oven lid (Figure 2.1).
  • Page 10 Support Triangles (2) (3) on Each Side Glide Rails (2) Figure 2.4 DIC AXP Carriage Support Assembly 8. Slide the Camera Sub-assembly over the two pins located at the center of the Common Crossbar Mount Support. There are three possible camera positions.

  • Page 11: System Alignment

    2. Turn on the Light Source Power switches. Make sure the Light Source Adjustment knob is placed at approximately 90% of the maximum level. 3. Run the DIC Surface Measurement program by clicking its icon on the Studio Manager bar A start-up splash screen appears while the software initializes.
  • Page 12 FOV. Figure 2.6 Two Images of Calibration Target in DIC Surface Measurement 7. Adjust aperture and focus so that the cal target is adequately bright and in focus.

  • Page 13: Calibration

    3. Close the oven lid. 4. Find the Akrometrix-supplied standby plate for the DIC system and place it on a flat surface (Figure 2.7). Figure 2.7 DIC Standby Plate 5.
  • Page 14 2.8). Figure 2.8 DIC System Installed on Standby Plate 9. Cover the DIC system with a piece of cloth and/or place it in a storage room to protect the optical components from dust and accidental damage. 10. Install the grating in the oven lid if the system needs to be operated in TherMoiré...

  • Page 15: Troubleshooting

    DIC User Manual 3 Troubleshooting Failure to Initialize the Cameras Symptom: When opening the DIC Surface Measurement program, the cameras fail to be initialized. A window may pop up as shown in Figure 3.1. Figure 3.1 Camera Initialization Error Cause: ...
  • Page 16 (e.g. brightness, shutter speed, gain, etc.) back to the defaults, which are not favorable conditions for the measurement system. Akrometrix has set these values from the factory. If they are accidentally reset please contact support to receive instructions on how to set these values.
  • Page 17 If the camera is found and a live view can be seen in the utility program, repeat Step 2 for the second camera. If both camera images can be seen, close the utility program and reopen the DIC program. Otherwise, go to step 4. Disconnect the non-functioning camera’s cable and reconnect it. In the device wizard that appears: a.
  • Page 18 DIC User Manual Figure 3.10 Figure 3.11 Select Hardware Type d. Select Imaging Devices as the Hardware Type (Figure 3.11). e. Press Have Disk… browse “C:\Program Files\CMU\1394Camera\Driver\1394Camera.inf” (Figure 3.12). f. Continue Anyway when warned that the driver is not digitally signed (Figure 3.13).

  • Page 19: Appendix A - Miscellaneous Information

    Weight Camera Sub-Assembly with Common Crossbar: 3.2kg A.2 Transport When transporting the DIC system to a new location, Akrometrix recommends that certain components be removed from the system and packed and moved separately. These include:  Cameras and lenses  Grating and grating frame A.3 Maintenance...
