Summary of Contents for Atlantic PRIMOCOSY HR BP

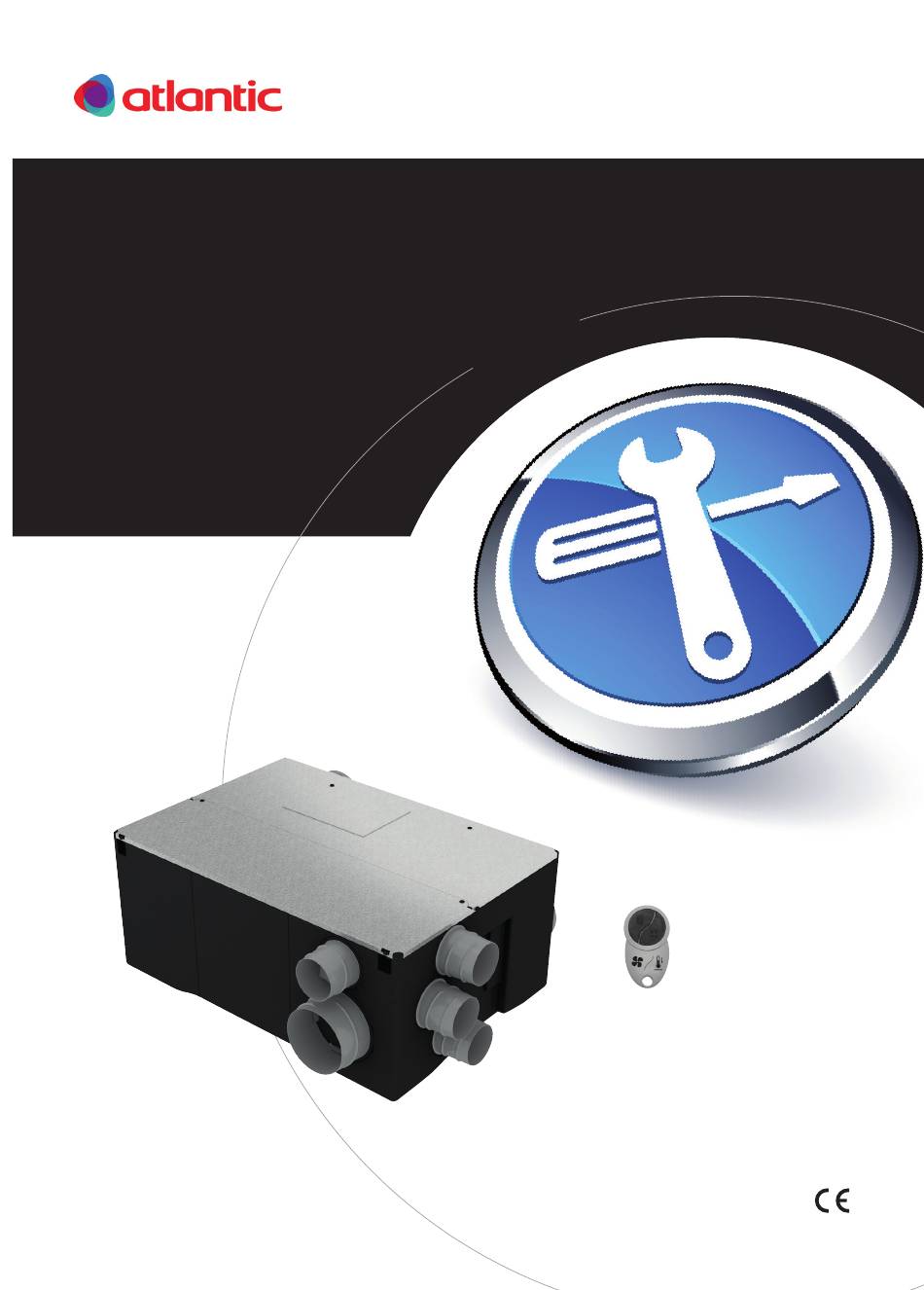

- Page 1 FITTING INSTRUCTIONS PRIMOCOSY HR BP / HR SRI BP 412236 - 412237 Family 4 N° 4126 Issue # Date 02/2017...
-
Page 2: Table Of Contents
CONTENTS 1. WARNINGS ............3 2. DESCRIPTION ............. 3 2.1 General points ..........3 2.2 Construction ..........3 2.3 Composition ..........3 2.4 Technical specifications ......... 4 2.5 Dimensions ........... 4 3. INSTALLATION ..........5 3.1 Fitting connection points ......5 3.2 Installation of casing ........ -
Page 3: Warnings
1 kitchen connection point Ø125 15 or 30 m3/h indicator panel regulated Avec cette carte, suivez l’usure quand les changer. MODE D’EMPLOI Appuyer pour enclencher la pastille Lorsque le témoin rouge atteint (réf. : 412190) Filtres disponibles sur la boutique Atlantic : www.boutique-atlantic.fr... -
Page 4: Technical Specifications
2.4 - Technical specifications Power supply: single-phase ~ 230 V – 50 Hz Power Weighted Current consumption power* PRIMOCOSY HR 0.4A 0.6A 122W 47.1 W.th.C PRIMOCOSY HR SRI 0.4A 0.6A 122W 43.7 W.th.C For standard 22 hr low-speed versions and 2hr high-speed versions For SRI 23 hr low-speed versions and 1hr high-speed versions 2.5 Dimensions 3 X Ø80 Ø125... -
Page 5: Installation
3. INSTALLATION For easier maintenance, leave a 300mm space above and behind the appliance. 3.1. Fitting connection points Do not dismantle moving parts to install connection points. in reverse + 1/4 OF A TURN SEAL THE FITTING IN THE PIPE USING THE CLAMPING SLEEVE 3.2. -
Page 6: Connection Of Air-Flow & Associated Terminals
3.3. Air-flow connection & associated terminals Fresh air blowing Used air outlet Fresh air inlet Kitchen connection with Washroom extraction regulator Kitchen extraction To prevent unwanted load losses, it is vital: • to avoid unnecessary elbow joints, •... -
Page 7: Electric Cabling
Provide a 2A circuit-breaker for protection (not supplied). 1 metre cable supplied. Connect using a sealed junction box (not supplied). The appliance motors have electronic protection. PRIMOCOSY HR BP WIRING BY-PASS PV / GV PHASE... -
Page 8: Extraction Flow-Rate Adjustment
5. EXTRACTION FLOW-RATE ADJUSTMENT 5.1. Extraction flow-rate adjustment Regulatory air flows: REGULATORY AIRFLOWS EXPRESSED IN m³/h Toilet cubicle Number of principal Bathroom or shower room, Another Kitchen rooms in the dwelling including a toilet cubicle washroom* Single Multiple 5 and more This unit is suitable for up to 4 sanitation facilities (each room with a water outlet, except for the kitchen), with 3 bathrooms (or showers) at most. -
Page 9: By-Pass Principle
Cool Warm Exchange SUMMER Night 6. BY-PASS PRINCIPLE Cool Warm The BY-PASS is activated by putting the switch in position 1, or pressing the button for SRI versions. By-pass This function by-passes the exchanger to reduce heating in dwellings on summer nights. Limit cooling of the dwelling on spring or autumn days (for SRI versions the function is triggered for 12 hours, and can be stopped by pressing the button again). -
Page 10: Annual Maintenance
Lorsque le témoin rouge atteint appears. (réf. : 412190) (réf. : 412190) Filtres disponibles sur la boutique Atlantic : Filtres disponibles sur la boutique Atlantic : www.boutique-atlantic.fr www.boutique-atlantic.fr Ensure the indicator is reliable by keeping it a temperate location, between 20°C and 24°C. -
Page 11: Maintenance Of Exchanger And Motorised Fans
8.3. Maintenance of exchanger and motorised fans Unscrew the 4 crosshead screws to access the exchanger and the motorised fans. Disconnect the terminal strip before removing the BY-PASS / exchanger assembly. Motorised fan unit BY-PASS DO NOT PRESS ON THE BY-PASS Pull out the motorised fan units to dust them with a dry brush. -
Page 12: Warranty
9. WARRANTY This appliance is guaranteed against all manufacturing faults for two years from the date of purchase. For this, ATLANTIC Climatisation et Ventilation offers exchange or supply of parts found to be defective after inspection by its after-sales service. In no case may the warranty cover additional costs, such as labour, transport or compensation of any kind.
