C&T Solution RCO-6120-2060S User Manual

Superior fanless embedded system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

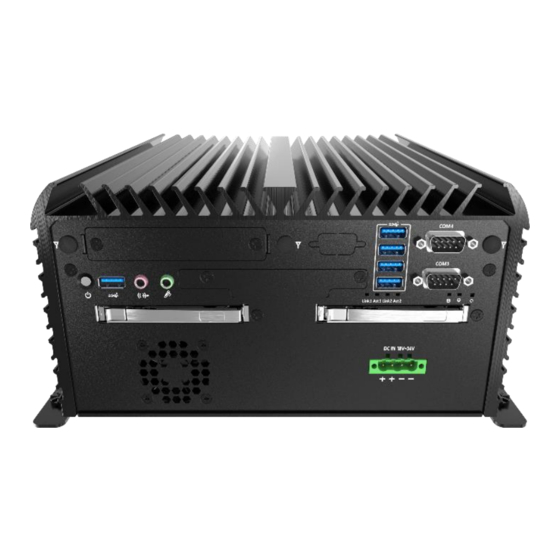

RCO-6120-2060S
Superior Fanless Embedded System

Advertisement

Table of Contents
loading

Related Manuals for C&T Solution RCO-6120-2060S

Summary of Contents for C&T Solution RCO-6120-2060S

  • Page 1 RCO-6120-2060S Superior Fanless Embedded System...

  • Page 2: Table Of Contents

    RCO-6120-2060S l User’s Manual Table of Contents Prefaces ……………………………………………………………………………………………….. 04 Revision ………………………………………………………..……………………………..……………….……….. 04 Disclaimer ……………………………………………………….…….……………….………………….………….. Copyright Notice …………………………………….…….….………………………………….………………… Trademarks Acknowledgment …………..………….………………………………………....Environmental Protection Announcement ……………………………………..……..……………….. Safety Precautions ……………………………………………………………………………………….….…….. Technical Support and Assistance ………………………………...……………………..…….…….……. Conventions Used in this Manual …………………………………..……………………..….……….. Package Contents ……………………………………………………………………..…..…………………….…...
  • Page 3 RCO-6120-2060S l User’s Manual Chapter 3 System Setup …………………………..…………………………….…………… 53 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing …………………………………………………………………………………………….. 54 Removing chassis bottom cover ………………...………………………………………..54 Removing GPU Card expansion module …….…………..….…….…..….…………... 55 Removing chassis top cover …………….…………………………….….………………..57 Installing SODIMM …………….…………………………..…….…………………………..

  • Page 4: Prefaces

    RCO-6120-2060S l User’s Manual Prefaces Revision Revision Description Date Manual Released 2020/11/25 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.

  • Page 5: Safety Precautions

    Preface RCO-6120-2060S l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions:  Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.  The power outlet shall be installed near the equipment and shall be easily accessible.

  • Page 6: Technical Support And Assistance

    Preface RCO-6120-2060S l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Preface RCO-6120-2060S l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty RCO-6100 Series Fanless Embedded System Utility DVD Driver Wall Mount Kit Accessory Kit Ordering Information Model No.

  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 9: Overview

    RCO-6120-2060S l User’s Manual Chapter 1: Product Introductions 1.1 Overview The GPU series adopts 9th Gen. Intel® Core™ i7-9700E (4.4GHz, 8 Cores) / i5-9500E (4.2GHz, 6 Cores) / i3-9100E (3.7GHz, 4 Core) / i7-9700TE (3.8GHz, 8 Cores) / i5-9500TE (3.6GHz, 6 Cores) / i3-9100TE (3.2GHz, 4 Core) or 8th Gen.

  • Page 10: Hardware Specification

    RCO-6120-2060S l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification System Support 8 Gen Intel® CFL-R S Processor 4x RS-232/422/485, (LGA 1151, 65W/35W TDP) 2x RS-232/422/485 (internal) Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz 4x USB 3.2 Gen 2 (10 Gbps) Intel®...

  • Page 11: System I/O

    RCO-6120-2060S l User’s Manual Chapter 1: Product Introductions 1.3 System I/O Front Panel Universal I/O Bracket ATX power on/off switch Used to customized I/O output Press to power-on or power-off the system Romovable HDD Reset switch Removable 2.5" 7mm SATA HDD Bay...
  • Page 12 RCO-6120-2060S l User’s Manual Chapter 1: Product Introductions Rear Panel DisplayPort DC IN Used to connect a Display Port monitor Used to plug a DC power input with terminal block USB 3.2 Gen 2 port (10 Gbps) Used to connect USB 3.2/2.0/1.0 device...

  • Page 13: Mechanical Dimension

    RCO-6120-2060S l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions Unit: mm...

  • Page 14: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...

  • Page 15: Switch And Connector Locations

    RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.1 Switch and Connector Locations 2.1.1 Top View...

  • Page 16: Bottom View

    RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.1.2 Bottom View PCIE2 PCIE1 SATA1 SATA3 LED4 LED3 SATA4 SATA2 SATA with Power Connector HDD_LED1 SIM2 PWR_LED1...

  • Page 17: Connector / Switch Definition

    RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch PWR_SW1 Power Switch RESET1 Reset Switch USB 3.2 Gen 2 、 USB 3.2 Gen 1 、 USB2.0...

  • Page 18: I/O Interface Descriptions

    RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.1 LPC Debug Con Signal Signal +3.3V LPC_AD3 LPC_AD2 Reset LPC_AD1 LPC_FRAME-L LPC_AD0 Clock...
  • Page 19 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.2 Power Con 1 2 3 4 POWER1 Signal +12V...
  • Page 20 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.3 DC IN/IGN IN (+9V ~ +48V) 1 2 3 DC_IN1 Signal +DC_IN IGN_SENSE...
  • Page 21 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.4 COM Con COM5_1 , COM6_1 Signal Signal DCD# DSR# RTS# CTS# DTR# RS232 / RS422 / RS485 Connector 2x5 10-pin box header, 2.0mm pitch RS232 Definition...
  • Page 22 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions COM1_2 , COM3_4 RS232 / RS422 / RS485 Connector Type: 9-pin D-Sub RS422 / 485 Full Duplex RS232 Definition RS485 Half Duplex Definition Definition 1(10) DCD# DATA-...
  • Page 23 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.5 SF100 SPI Con Signal Signal Power ( 3V ) MISO MOSI SPI_GATE#...
  • Page 24 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions Left Right AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) ATX Power Mode (Default) 2-3 (Right) AT Power Mode Left Right CAR_PWR1: PC / Car Mode Switch...
  • Page 25 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 1 2 3 DELAY_TIME1 Power off delay time setup Switch Switch 1 / 2 / 3 Definition ON / ON / ON 3 sec.（Default Shutdown Timer by O.S）...
  • Page 26 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions LINE_OUT1 MIC_IN1 LINE_OUT1 : MIC_IN1 : Line-out Jack (Green) Connector Type: 5- Microphone Jack (Pink) Connector Type: pin Phone Jack 5-pin Phone Jack Definition Definition OUT_R MIC_R...
  • Page 27 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CLR_CMOS1: Clear BIOS Switch Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear BIOS PWR_SW1: Power Button Definition Definition Power Button...
  • Page 28 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions RESET1 : Reset Button Definition RESET USB3_1 : USB3.1 Connector, Type A Definition Definition USB3_RX+ USB2_D- USB2_D+ USB3_TX- USB3_TX+ USB3_RX-...
  • Page 29 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN7 : USB2.0 Connector 2x5 10-pin box header, 2.0mm pitch Definition Definition USB2_D- USB2_D- USB2_D+ USB2_D+...
  • Page 30 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN6 : USB3.1 Connector, Type A x 4 Definition Definition USB3_RX+ USB2_D- USB2_D+ USB3_TX- USB3_TX+ USB3_RX-...
  • Page 31 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions SIM1 : Top size SIM Card Socket SIM2 : Bottom size SIM Card Socket SIM1 SIM2 Definition Definition UIM_PWR UIM_VPP UIM_RESET UIM_DATA UIM_CLK...
  • Page 32 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions DVI_I1: DVI-I Connector Definition Definition DVI_TX2- DVI Hot Plug Detect DVI_TX2+ DVI_TX0- DVI_TX0+ VGA_DDC_CLOCK DVI_DDC_CLOCK VGA_DDC_DATA DVI_DDC_DATA VGA VSYNC DVI_TXCLK+ DVI_TX1- DVI_TXCLK- DVI_TX1+ VGA_RED VGA_GREEN VGA_BLUE VGA_HSYNC...
  • Page 33 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions DP1 DP2 : Display Port Connector Definition Definition DP_LANE0_P DP_LANE3_N DP_LANE0_N DP_LANE1_P DP_AUX_P DP_LANE1_N DP_LANE2_P DP_AUX_N DP_HPD DP_LANE2_N DP_LANE3_P +3.3V...
  • Page 34 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions DIO : Digital Input / Output Connector Type: Terminal Block 2x9 18-pin, 3.5mm pitch Definition Definition DIN1 DOUT1 DIN2 DOUT2 DIN3 DOUT3 DIN4 DOUT4 DIN5 DOUT5 DIN6...
  • Page 35 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions Digital Input Wurung Digital Output Wurung...
  • Page 36 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PWR_SW2 : Remote Power Switch Type: Terminal Block 1x2 2-pin, 3.5mm pitch Definition Power Button...
  • Page 37 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PWR_SW3 : Remote Power Switch 1x4 pin box header, 2.0mm pitch Definition Power Button PWR_LED HDD_LED...
  • Page 38 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN3 CN4 : LAN and USB3.1 GEN 2 Ports Connector Type:RJ45 port with LEDs and dual USB3.1 ports Definition Definition Definition LAN1_MDI0P USB2_D1- USB2_D2- LAN1_MDI0N USB2_D1+ USB2_D2+...
  • Page 39 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions Act LED Status Definition Blinking Yellow Data Activity No Activity Link LED Status Definition Steady Orange 1Gbps Network Link Steady Green 100Mbps Network Link 10Mbps Network Link...
  • Page 40 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions MINIPCIE2 : Mini PCI-Express Socket Definition Definition WAKE# +3.3V +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST UIM_VPP RESET# +3.3VAUX +1.5V SMB_CLK SMB_DATA USB2_D- USB2_D+ +3.3V +3.3V +1.5V...
  • Page 41 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions MINIPCIE1 : Mini PCI-Express / mSATA Socket Definition Definition WAKE# +3.3V +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST UIM_VPP RESET# +3.3VAUX +1.5V SMB_CLK SMB_DATA USB2_D- USB2_D+ +3.3V...
  • Page 42 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions SATA with Power Connector Definition Definition +12V DEVSLP +12V +12V...
  • Page 43 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PCIE : PCI-Express x1 Slot Definition Definition +12V FAN_P4 +12V +12V +12V +12V SMB_CLK SMB_DATA +3.3V +3.3V +3.3VAUX +3.3V WAKE# RESET# FAN_P3 REFCLK+ TxP0 REFCLK- TxN0 RxP0...
  • Page 44 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PCIE : PCI-Express x8 Slot Definition Definition +12V +12V +12V +12V +12V SMB_CLK SMB_DATA +3.3V +3.3V +3.3VAUX +3.3V WAKE# RESET# REFCLK+ TxP0 REFCLK- TxN0 RxP0 RxN0...
  • Page 45 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PCIE : PCI-Express x8 Slot Definition Definition TxP1 TxN1 RxP1 RxN1 TxP2 TxN2 RxP2 RxN2 TxP3 TxN3 RxP3 RxN3 9_48VSB_IN 9_48VSB_IN 9_48VSB_IN 9_48VSB_IN 9_48VSB_IN 9_48VSB_IN 9_48VSB_IN 9_48VSB_IN...
  • Page 46 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PCIE : PCI-Express x16 Slot Definition Definition +12V FAN_P4 +12V +12V +12V +12V SMB_CLK SMB_DATA +3.3V +3.3V +3.3VAUX +3.3V WAKE# RESET# FAN_P3 REFCLK+ TxP0 REFCLK- TxN0 RxP0...
  • Page 47 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PCIE : PCI-Express x16 Slot Definition Definition TxP1 TxN1 RxP1 RxN1 TxP2 TxN2 RxP2 RxN2 TxP3 TxN3 RxP3 RxN3 CFG_5 TxP4 CFG_6 TxN4 RxP4 RxN4 TxP5 TxN5...
  • Page 48 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions PCIE : PCI-Express x16 Slot Definition Definition TxN8 RxP8 RxN8 TxP9 TxN9 RxP9 RxN9 TxP10 TxN10 RxP10 RxN10 TxP11 TxN11 RxP11 RxN11 TxP12 TxN12 RxP12 RxN12 TxP13...
  • Page 49 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN1 : M.2 E Key Socket Definition Definition +3.3VAUX USB2_D+ +3.3VAUX USB2_D- LED1# LED2# TxP0 TxN0 RxP0 RxN0...
  • Page 50 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN1 : M.2 E Key Socket Definition Definition REFCLK0+ REFCLK0- SUSCLK PERST0# WAKE0# TxP1 TxN1 Pull Low RxP1 PERST1# RxN1 WAKE1# REFCLK1+ +3.3VAUX REFCLK1- +3.3VAUX...
  • Page 51 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN2 : M.2 M Key Socket Definition Definition +3.3V +3.3V RxN3 RxP3 LED# TxN3 +3.3V TxP3 +3.3V +3.3V RxN2 +3.3V RxP2 TxN2 TxP2 RxN1 RxP1 TxN1...
  • Page 52 RCO-6120-2060S l User’s Manual Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions CN2 : M.2 M Key Socket Definition Definition TxP1 Pull Low RxN0/SATA_B+ RxP0/SATA_B- TxN0 TxP0 PERST# Pull Hi REFCLK- WAKE# REFCLK+ SUSCLK PEDET +3.3V +3.3V +3.3V...

  • Page 53: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 54: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. 3.2 Removing chassis bottom cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source.

  • Page 55: Removing Gpu Card Expansion Module

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.3 Removing GPU Card expansion module 1. This step only applies to RCO-6120, which is equipped with GPU Card expansion module. 2. Unscrew four screws (M3x5L) circled below. 3. Unscrew two screws (M3x5L) circled below.
  • Page 56 RCO-6120-2060S l User’s Manual 4. Remove the four screws (M3x5L) in the circle below, for the fan （M3x5L） 5. Now you can remove the GPU Card expansion module.

  • Page 57: Removing Chassis Top Cover

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.4 Removing chassis top cover 1. Unscrew the four screws (M3x5L) highlighted below. 2. Hold the body of the system and lift it vertically away from the top cover. 3. Top cover separated from the system body.

  • Page 58: Installing Sodimm

    3.5 Installing SODIMM 1. Place the system body with SODIMM socket facing upward. Two SODIMM sockets are available for RCO-6120-2060S on the top side. 2. Insert memory module from 45 degree direction. 3. Press the memory module vertically downward until you hear the “click” sound. Make sure the...

  • Page 59: Installing Cpu

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.6 Installing CPU 1. Press down the CPU socket lever in order to open the socket cover.
  • Page 60 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 2. Remove the CPU protective cover. 3. Insert CPU gently.
  • Page 61 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 4. Press down the lever again to hold the socket cover. 5. Paste thermal pad (1-BRRC60001A1, 29x29x0.8mm) on the CPU.
  • Page 62 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 6. Place the designated heat block onto the CPU with thermal pad. 7. Lock the heat block with three screws (M3x5L). Screw driver will able to penetrate through the holes on the top in order to fasten the screws with copper stud.
  • Page 63 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 8. Paste the thermal pad (1-BR0500041, 76x70x2.0mm) onto the installed heat block. 9. Paste the thermal pad (1-BR0500042, 23x20x2.0mm) onto the installed heat block.

  • Page 64: Installing Mini Pcie Card / Msata

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.7 Installing Mini PCIe card / mSATA The RCO-6120-2060S has two Mini PCIe slots, both of which are on the top. The MINI-PCI E1 on the top supports mSATA. MINI-PCI E1 1. Insert Mini PCIe card from 45 degree direction.

  • Page 65: Installing M.2 2280 Nvme Ssd

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.8 Installing M.2 2280 NVMe SSD RCO-6120-2060S PCBA has an M.2 M key slot on the top, CN2 currently supports NVMe SSD applications 1. Insert M.2 M Key card from 45 degree direction.

  • Page 66: Installing Wifi Module

    Chapter 3: System Setup 3.9 Installing WiFi Module RCO-6120-2060S PCBA has an M.2 E key slot on the top, CN1 currently supports WiFi application 1. Insert M.2 E Key card from 45 degree direction. 2. Press the M.2 E Key card down and lock it with one screw (M2x3.7L).
  • Page 67 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3. RCO-6120-2060S system has 5 antenna holes, 2 on the rear panel, 3 on the front panel 4. Remove antenna hole plug on the system panel. 5. Have antenna jack penetrate through the hole, and fasten the nut with SMA jack.
  • Page 68 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 6. Assemble the antenna and SMA jack together. 7. Attach the RF connector at the cable-end onto the communication module.

  • Page 69: Installing Mini Pcie Card / 4Glte

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.10 Installing Mini PCIe card / 4GLTE RCO-6120-2060S PCBA has two Mini PCIe slots on the top, MINI-PCI E2 currently supports 4GLTE applications MINI-PCI E2 1. Insert Mini PCIe card from 45 degree direction.

  • Page 70: Installing Antenna

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.11 Installing antenna 1. Remove antenna hole cover on the system panel. 2. Have antenna jack penetrate through the hole, and fasten the nut with SMA jack.
  • Page 71 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3. Assemble the antenna and SMA jack together. 4. Attach the RF connector at the cable-end onto the communication module.

  • Page 72: Assembly Chassis Top Cover

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.12 Assembly chassis top cover 1. Place the top cover upside down as shown below. 2. Ensure thermal pad is in place on both the CPU and PCH thermal block.
  • Page 73 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3. Hold the system body and slide the front/rear panel into the slide rail on the top cover. 4. Fasten the four screws (M3x5L) to lock the system body with top cover.

  • Page 74: Installing Hdd / Ssd On The Internal Sata Bay

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.13 Install HDD/SSD on the internal SATA bay 1. Two internal SATA HDD/SSD bays are available for RCO-6100 series. 2. Unscrew the four screws (M3x5L) to remove the internal SATA HDD/SSD bay.
  • Page 75 RCO-6120-2060S l User’s Manual Chapter 3: System Setup 4. Install the HDD/SSD bracket following the direction below. 5. Fasten the four screws to lock the internal HDD/SSD bracket.

  • Page 76: Installing Hdd On Removable Sata Hdd/Ssd Bay

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.14 Installing HDD on removable SATA HDD/SSD bay 1. Open the tray lock (red circle) ,and remove the tray in the direction of the arrow 3. Close the drive lock in the 2.

  • Page 77: Installing Gpu Card Expansion Module

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.15 Assemble GPU Card expansion module 1. Install the expansion module back in place and ensure the golden finger is inserted into the expansion slot. 2. Fasten the four screws (M3x5L) below to lock the expansion module.

  • Page 78: Assemble Chassis Bottom Cover

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.16 Assemble chassis bottom cover 1. Place the bottom cover according to the below direction and make sure the rail is facing inside the system. 2. Lock the bottom cover with the six screws (M3x5L).

  • Page 79: Installing Sim Card

    RCO-6120-2060S l User’s Manual Chapter 3: System Setup 3.17 Installing SIM card 1. Take out the removable SATA HDD bay in order to locate the SIM card slot. 2. Now you can insert SIM card into the socket.

  • Page 80: Installing Wall Mount Kit

    Chapter 3: System Setup 3.18 Installing wall mount kit 1. Wall mount kit is available for RCO-6120-2060S included in the standard package. 2. Put the Wall mount kit into the ANTI-VIBRATE GROMMET BLK 3. Lock the wall mount kit with eight screws (M3x5L, Nylok).

  • Page 81: Ac Adapter(3P)

    RCO-6120-2060S l User’s Manual 3.19 AC Adapter(3P) 1. 3P Wiring Diagram of AC Adapter 2. DC power input 3P wiring diagram...

  • Page 82: Ac Adapter(4P)

    RCO-6120-2060S l User’s Manual 3.20 AC Adapter(4P) 1. AC adapter 4P wiring diagram 2. DC power input 4P wiring diagram...

  • Page 83: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 84: Bios Introduction

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Introduction The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del> immediately allows you to enter the setup screens.

  • Page 85: Main Setup

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu.

  • Page 86: Advanced Setup

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced Setup...

  • Page 87: Cpu Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.1 CPU Configuration Item Options Description Intel (VMX) Virtualization Disabled, When enabled, a VMM can utilize the Technology Enabled[Default] additional hardware capabilities provided by Virtualization Technology. Active Processor Cores All[Default] Number of cores to enable in each processor package.

  • Page 88: Pch-Fw Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.2 PCH-FW Configuration Item Options Description AMT BIOS Features Disabled, When disabled AMT BIOS Features are no Enabled[Default] longer supported and user is no longer able to access MEBx Setup. Note:This option does not disable Manageability Features in FW.

  • Page 89: Sata And Rst Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.3 SATA and RST Configuration Item Options Description SATA Controller(s) Disabled, Enable/Disable SATA Device. Enabled[Default] SATA Mode Selection AHCI[Default] , Determines how SATA controller(s) operate. Intel RST Premium With Intel Optane System...

  • Page 90: Rst (Uefi Raid) Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to “Intel RST Premium With Intel Optane System Acceleration“, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage...
  • Page 91 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...

  • Page 92: Trusted Computing

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.5 Trusted Computing Item Options Description Security Device Support Enabled, Enable/Disable BIOS support for security Disabled[Default] , device. O.S. will not show Security Device.TCG EFI protocol and INT1A interface will not be available.

  • Page 93: Acpi Settings

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.6 ACPI Settings Item Options Description Enable Hibernation Disabled , Enables or Disables System ability to Enabled[Default], Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems. ACPI Sleep State...

  • Page 94: Super Io Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.7 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA).
  • Page 95 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 1 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=3F8h; IRQ=4; , &...
  • Page 96 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 2 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2F8h; IRQ=3; , IRQ settings of the specified serial port.
  • Page 97 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 3 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=3E8h; IRQ=7; , &...
  • Page 98 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 4 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2E8h; IRQ=7; , IRQ settings of the specified serial port.
  • Page 99 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 5 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=2F0h; IRQ=7; , &...
  • Page 100 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 6 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=2E0h; IRQ=7; , &...

  • Page 101: Hardware Monitor

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.8 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures. Item Options Description Smart Fan Function Disabled[Default], Enabled or Disable Smart Fan...
  • Page 102 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Smart Fan Mode Configuration Item Options Description Expansion Fan Manual Mode, Smart Fan Mode Select SmartFan Control SMART FAN IV Mode[Default], Temperature 1~4 1~100 Auto fan speed control. SMART FAN IV...

  • Page 103: Serial Port Console Redirection

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.9 Serial Port Console Redirection Item Options Description Console Redirection Disabled[Default], These items allows you to enable or disable Enabled COM1 console redirection...

  • Page 104: Network Stack Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.10 Network Stack Configuration Item Options Description Network Stack Disabled[Default] , Enable/Disable UEFI Network Stack. Enabled...

  • Page 105: Csm Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.11 CSM Configuration Item Options Description CSM Support Disabled, This item allows users to enable or disable for Enabled[Default] “CSM Support”. GateA20 Active Upon Request[Default] , This item allows users to set Upon Request or Always Always for "GateA20 Active“.

  • Page 106: Usb Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.3.12 USB Configuration Item Options Description Legacy USB Support Enabled[Default] Enables Legacy USB support. AUTO option Disabled disables legacy support if no USB devices are Auto connected. DISABLE option will keep USB devices available only for EFI applications.

  • Page 107: Chipset

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration...
  • Page 108 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Memory Configuration Item Options Description Max TOLUD Dynamic[Default], Maximum Value of TOLUD. Dynamic 1GB, assignment would adjust TOLUD 1.25GB, automatically based on largest MMIO 1.5 GB, length of installed graphic controller 1.75 GB,...
  • Page 109 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Graphic Configuration Item Options Description Primary Display Auto[Default] , Select which of IGFX/PEG Graphics device PEG + IGFX should be Primary Display. PEG+IGFX(Multiple-Displays): IGFX will be primary and only display under BIOS and DOS mode.
  • Page 110 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ PEG Port Configuration Item Options Description Enable Root Port Enabled[Default] , Enable or Disable the Root Port Disabled Max Link Speed Auto[Default] , Configure PEG 0:X:X Max Speed Gen1, Gen3, Gen3,...
  • Page 111 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.4.2 PCH-IO Configuration Item Options Description PCH LAN Controller Enabled [Default] , Enable/Disable onboard NIC. Disabled Wake on LAN Enable Enabled, Enable/Disable integrated LAN to wake the Disabled [Default] system. ■ PCI Express Configuration...

  • Page 112: Pch-Io Configuration

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ PCI Express Configuration...
  • Page 113 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ PCI Express Root Port 8 / 9 / 16 Item Options Description PCI Express Root Port Disabled [Default] , Control the PCI Express Root Port. Enabled 5 /10 /14/15/16/19/21 ASPM Disabled [Default] ,...
  • Page 114 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ USB Configuration Item Options Description XHCI Disable Disabled [Default] , Option to enable Compliance Mode. Default Compliance mode Enabled is to disable Compliance Mode. Change to enabled for Compliance Mode testing.
  • Page 115 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ HD Audio Configuration Item Options Description HD Audio Disabled, Control Detection of the HD-Audio device. Enabled [Default] Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled.

  • Page 116: Security

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password.
  • Page 117 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Security Boot Item Options Description Secure Boot Disabled [Default] , Secure Boot feature is Active if Secure Boot Enabled is Enabled,Platform Key(PK) is enrolled and the System is in User mode.
  • Page 118 RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup ■ Key Management Item Options Description Factory Key Provision Disabled [Default] , Install factory default Secure Boot keys after Enabled the platform reset and while the System is in Setup mode...

  • Page 119: Boot

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.6 Boot This menu allows you to setup the system boot options. Item Options Description Setup Prompt 1[Default] Number of seconds to wait for setup Timeout activation key. 65535(0xFFFF) means indefinite waiting.

  • Page 120: Save & Exit

    RCO-6120-2060S l User’s Manual Chapter 4: BIOS Setup 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.

  • Page 121: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

  • Page 122: Wdt Sample Code

    RCO-6120-2060S l User’s Manual Appendix – WDT & GPIO WDT Sample Code WDT Setting Psuedo Code #define AddrPort 0x2e #define DataPort 0x2f #define SIO_UnLock_Value 0x87 #define SIO_Lock_Value 0xaa #define WATCHDOG_LDN 0x07 #define GPIO_Port 0xF1 //Enter_Config WriteByte (AddrPort, SIO_UnLock_Value); WriteByte (AddrPort, SIO_UnLock_Value);...

  • Page 123: Gpio Sample Code

    RCO-6120-2060S l User’s Manual Appendix – WDT & GPIO GPIO Sample Code GPIO Setting PIN# GPIO# Default Configuration XCOM- XCOM+ OUT8 DIO Output8 DIO Input8 OUT7 DIO Output7 DIO Input7 OUT6 DIO Output6 DIO Input6 OUT5 DIO Output5 DIO Input5...
  • Page 124 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...
