INSTRUCTIONS

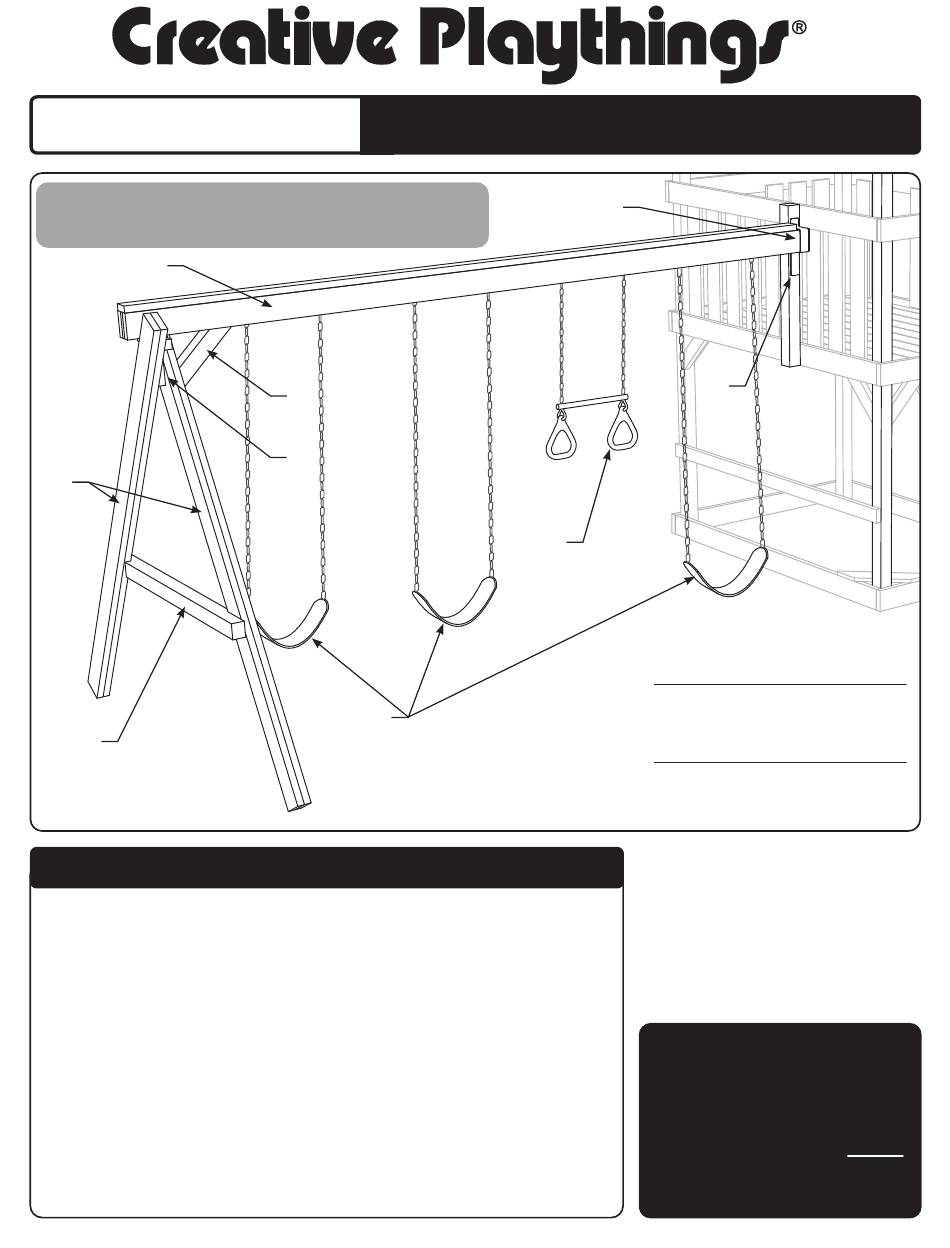

IMPORTANT: When installing a Swing Beam to a Norfolk or Man-
chester Gym, do not install the two swing hangers closest to the
gym. The area must be kept clear for tire swing clearance.
A
D
C
A
1 40587-102
4 Position Swing Beam Assembly
OR
*
1 40586-102
3 Position Swing Beam Assembly
B
1 32620-102
Angle Brace 4 x 4 x 16-7/8"
C
1 32625-102
Leg Brace 4 x 4 x 58"
D
2 40447-102
Leg Assembly, 7ft. Swing Beam
E
1 14175-400
T-Bracket, Green
F
1 14176-400
Beam Retainer, Green
G 1 14162-400
8" L-Brace, Green
*
2 14174-400
Beam Bracket (in Hardware Bag)
*
2 36515-102
Stake 2 x 2 x 18"
H
1 40311-400
Trapeze Assembly
J
3 40321-400
Sling Swing Assembly (2 Swing for 3 Position Beam)
1 50395-720
Hardware Bag, Swing Beam
1 50400-721
Hardware Bag, 7 Ft. Swing Beam
B
E
J
Parts for the optional Glider:
50545-555 Glider Bracket Pack
AA911-342 Chained Glider
PARTS
7 FT. SWING BEAM
F
H
Premium Pine 7 Ft. 4 Position Swing Beam
63058-202
63059-212
50546-777
Premium Pine 7 Ft. 3 Position Swing Beam
63061-202
63059-212
AA934-204
This manual documents the
assembly of a 4 Position Swing
Beam. The 3 Position is similar.
See the instructions for the
Gym Tower for information on
proper ground cover.
All hardware on this set
is specially coated for
corrosion resistance.
If non-Creative Playthings
hardware is used, it MUST
be galvanized or stainless
* Not Pictured
G
4 Position Swing Beam
7 ft Swing Beam Legs
3 Swings, 1 Trapeze
3 Position Swing Beam
7 ft Swing Beam Legs
2 Swings, 1 Trapeze
steel.
Advertisement
Summary of Contents for Creative Playthings Premium Pine
- Page 1 IMPORTANT: When installing a Swing Beam to a Norfolk or Man- chester Gym, do not install the two swing hangers closest to the gym. The area must be kept clear for tire swing clearance. Premium Pine 7 Ft. 4 Position Swing Beam 63058-202 4 Position Swing Beam...
- Page 2 Heavy Duty Ny-Glide Swing Hanger 12052-107 Nylock Nut 3/8" 17036-1403 Lag Screw 3/8 x 3-1/2" 15081-704 1" Hole Cap, Brown 12002-207 Flat Washer 3/8 7 Ft. Swing Beam Page 2 © Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
- Page 3 Note: mounting the beam in the highest position may conflict with the tent pipe on the Lexington or Williamsburg tent-roof gyms. In case of conflict, mount the beam in a lower position. 7 Ft. Swing Beam © Page 3 Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
- Page 4 Attach the T-Bracket Assembly to the Swing Beam using one 3/8 x 5" Hex Bolt, two 3/8" Flat Washers and one 3/8" Nylock Nut. 7 Ft. Swing Beam Page 4 © Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
- Page 5 Please use additional Flat Washers if the end of the Hex Bolt extends more than 1/8" beyond the Weld Nut. Use Additional Flat Washers 7 Ft. Swing Beam © Page 5 Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
- Page 6 Leg Assemblies for the Lag Screws). Tighten the Hex Bolt Assembly that connects to the Angle Brace. 7 Ft. Swing Beam Page 6 © Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
- Page 7 Leg Assemblies using two #10 x 2-1/2" Screws each. NOTE: The top of the Stakes must NOT extend beyond the profile of the leg. 7 Ft. Swing Beam © Page 7 Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
- Page 8 Norfolk or Manchester gym, do not install the two swing hangers closest to the gym. The area must be kept clear for tire swing clearance. 7 Ft. Swing Beam Page 8 © Copyright 2006, Creative Playthings. Printed in U.S.A. 19718-300 Rev C (05-20)
