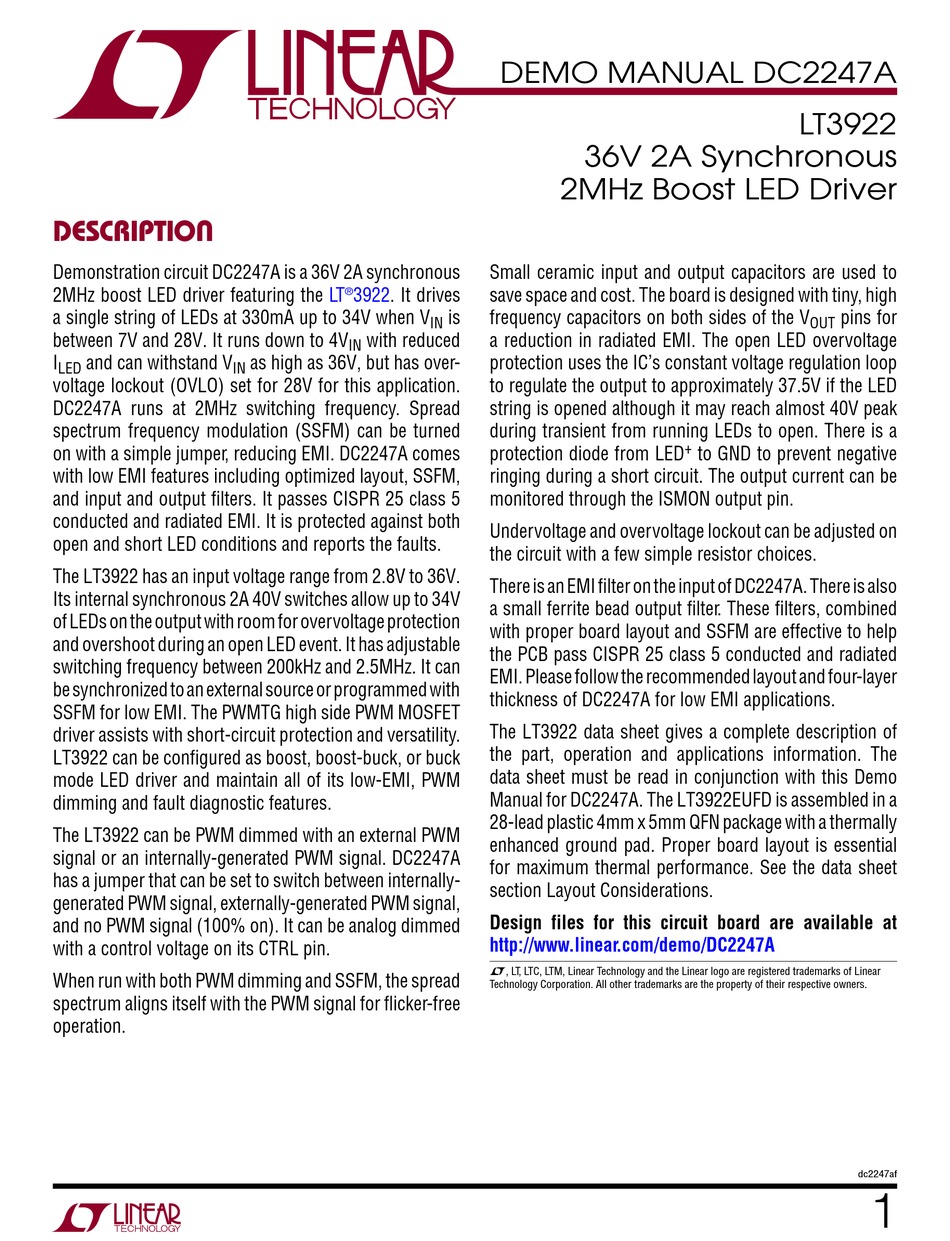

Description
Demonstration circuit DC2247A is a 36V 2A synchronous
2MHz boost LED driver featuring the
a single string of LEDs at 330mA up to 34V when V
between 7V and 28V. It runs down to 4V
I
and can withstand V
LED
voltage lockout (OVLO) set for 28V for this application.
DC2247A runs at 2MHz switching frequency. Spread
spectrum frequency modulation (SSFM) can be turned
on with a simple jumper, reducing EMI. DC2247A comes
with low EMI features including optimized layout, SSFM,
and input and output filters. It passes CISPR 25 class 5
conducted and radiated EMI. It is protected against both
open and short LED conditions and reports the faults.
The LT3922 has an input voltage range from 2.8V to 36V.
Its internal synchronous 2A 40V switches allow up to 34V
of LEDs on the output with room for overvoltage protection
and overshoot during an open LED event. It has adjustable
switching frequency between 200kHz and 2.5MHz. It can
be synchronized to an external source or programmed with
SSFM for low EMI. The PWMTG high side PWM MOSFET
driver assists with short-circuit protection and versatility.
LT3922 can be configured as boost, boost-buck, or buck
mode LED driver and maintain all of its low-EMI, PWM
dimming and fault diagnostic features.
The LT3922 can be PWM dimmed with an external PWM
signal or an internally-generated PWM signal. DC2247A
has a jumper that can be set to switch between internally-
generated PWM signal, externally-generated PWM signal,
and no PWM signal (100% on). It can be analog dimmed
with a control voltage on its CTRL pin.
When run with both PWM dimming and SSFM, the spread
spectrum aligns itself with the PWM signal for flicker-free
operation.
LT
3922. It drives
®
with reduced
IN
as high as 36V, but has over-
IN
DEMO MANUAL DC2247A
36V 2A Synchronous
2MHz Boost LED Driver
Small ceramic input and output capacitors are used to
save space and cost. The board is designed with tiny, high
is
frequency capacitors on both sides of the V
IN
a reduction in radiated EMI. The open LED overvoltage
protection uses the IC's constant voltage regulation loop
to regulate the output to approximately 37.5V if the LED
string is opened although it may reach almost 40V peak
during transient from running LEDs to open. There is a
protection diode from LED
ringing during a short circuit. The output current can be
monitored through the ISMON output pin.
Undervoltage and overvoltage lockout can be adjusted on
the circuit with a few simple resistor choices.
There is an EMI filter on the input of DC2247A. There is also
a small ferrite bead output filter. These filters, combined
with proper board layout and SSFM are effective to help
the PCB pass CISPR 25 class 5 conducted and radiated
EMI. Please follow the recommended layout and four-layer
thickness of DC2247A for low EMI applications.
The LT3922 data sheet gives a complete description of
the part, operation and applications information. The
data sheet must be read in conjunction with this Demo
Manual for DC2247A. The LT3922EUFD is assembled in a
28-lead plastic 4mm x 5mm QFN package with a thermally
enhanced ground pad. Proper board layout is essential
for maximum thermal performance. See the data sheet
section Layout Considerations.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2247A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
LT3922
pins for
OUT
+
to GND to prevent negative
dc2247af
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC2247A and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear Technology DC2247A

  • Page 1 CTRL pin. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear When run with both PWM dimming and SSFM, the spread Technology Corporation. All other trademarks are the property of their respective owners.
  • Page 2: Performance Summary

    Operating JP1 = INT, JP2 = INT R10 = 332k Quick start proceDure Demonstration circuit DC2247A is easy to set up to evaluate 7. Observe the LED string running at the programmed the performance of the LT3922 Follow the procedure below: LED current.
  • Page 3 FOR INTERNAL PWM DIMMING DUTY CYCLE CONTROL – – INPUT SUPPLY MONITOR – FAULT FLAG MONITOR LED CURRENT DC2247 F01 OPTIONAL OPTIONAL CONNECT ANALOG DIMMING EN/UVLO TO GND FOR LED CURRENT FOR SHUTDOWN REDUCTION Figure 1. Test Procedure Setup Drawing for DC2247A dc2247af...
  • Page 4 DC2247 F02a DC2247 F02b Figure 2. DC2247A Efficiency and LED Current Versus Input Voltage for 34V 330mA LED Load. Efficiency Remains High Through the Range Due to Synchronous Switching. At Low V Can Be Reduced Due to Peak Switch Current Limit...
  • Page 5 –10 –20 1000 1000 DC2247 F05a DC2247 F05b Figure 5. DC2247A Radiated Peak and Average EMI—30MHz to 1GHz—Passes CISPR 25 Class 5 Limits CISPR 25 CLASS 5 LIMITS CISPR 25 CLASS 5 LIMITS NOISE FLOOR NOISE FLOOR DC2247 F06a DC2247 F06b Figure 6.
  • Page 6: Parts List

    DEMO MANUAL DC2247A parts List ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components CAP ., X5R, 4.7µF, 50V, 10%, 1206 MURATA, GRM31CR71H475KA12L CAP ., X5R, 1µF, 50V, 10%, 0603 TDK, C1608X5R1H105K080AB CAP ., X7R, 2.2µF, 50V, 10%, 1206 MURATA, GRM31CR71H225KA88K C4, C5 CAP ., X5R, 0.47µF, 50V, 10%, 0402...
  • Page 7: Schematic Diagram

    Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 8 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
