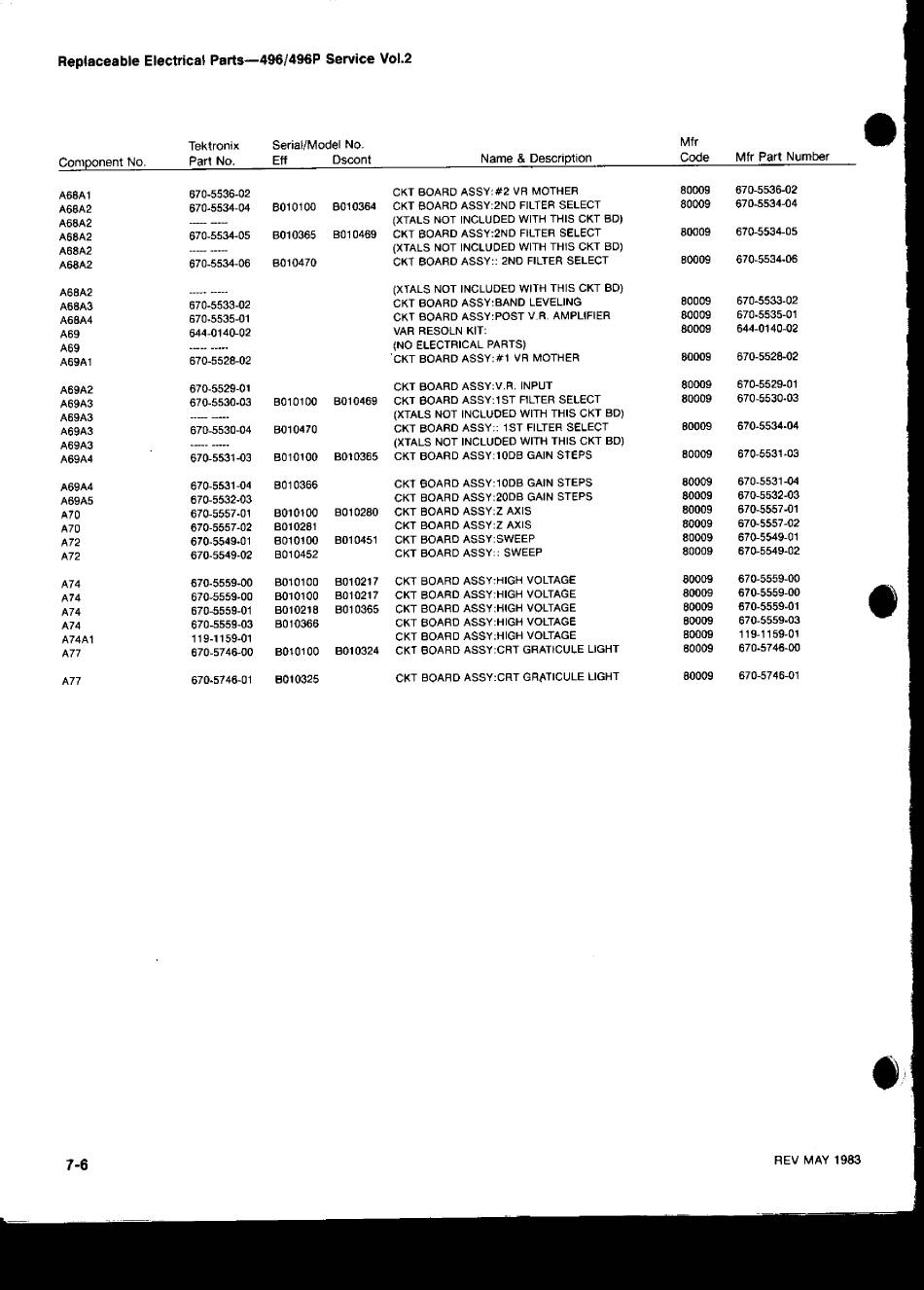

Replaceable Electrica# Parts-4$614g6P Service Vol-2
Tektronix
SeriaIlModel No.
Mfr
Component No . Pari No .
Eff Dscont
Name & Description Code
Mfr Part Number
Afi8A1
670-5536-02
CKT BOARD ASSY :#2 VR MOTHER
80009 670 .5536-02
A68A2
670-5534-D4 8010100
8010364
CKT BOARD ASSY :2ND FILTER SELECT 80009
670-5534-04
A68A2
--------
(XTALS NOT INCLUDED WITH THIS CKT 8D)
A6$A2
670-5534-05 8010365
8010469
CKT BOARD ASSY :2ND FILTER SELECT 80009 670-5534-05
A68A2
---------
(XTALS NOT INCLUDED WITH THIS CKT BD)
A68A2
670-5534-Dfi
8010470
CKT BOARD ASSY : : 2ND FILTER SELECT 80009
670-5534-06
A68A2
____- .-___
(XTALS NOT INCLUDED WITH THIS CKT BD)
A68A3
670-5533-02
CKT BOARD ASSY :BAND LEVELING
80009 670-5533-02
A6BA4
670-5535-01
CKT 80ARD ASSY :POST V.R . AMPLIFIER 80009
670-5535-01
A69
644-0140-D2
VAR RESOLN KIT:
80009 644-0140-02
A69
----- -----
(NO ELECTRICAL PARTS)
A69A1
670-5528-02
CKT BOARD ASSY :#1 VR MOTHER
$0009 670-5528-02
A69A2
670-5529-01
GKT BOARD ASSY :V .R . INPUT
80009 67D-5529-01
A69A3
670-5530-03 8010100
8010469
CKT BOARD ASSY :1 ST FILTER SELECT 80009 670-5530-03
A69A3 ---------
(XTALS NOT INCLUDED WITH THIS CKT BD)
A69A3
670-5530-04 8010470
CKT BOARD ASSY : : 1ST FILTER SELECT 80009 670-5534-04
A69A3 ----------
(XTALS NOT INCLUDED WITH THIS CKT BD)
A69A4
67D-5531-03 8010100
8010365
CKT BOARD ASSY :IODB GAIN STEPS 80009 670-5531-03
A69A4
670-5531-04 8010366
CKT BOARD ASSY :IODB GAIN STEPS 80009
670-5531-04
A69A5
67D-5532-03
CKT BOARD ASSY :20DB GAIN STEPS
80009 670-5532-03
A70
670-5557-01 8010100
8010280 CKT BOARD ASSY :Z AXIS
80009 670-5557-01
A70
670-5557-02 8010281
GKT BOARD ASSY :Z AXIS
80008
670-5557-02
A72
670-5549-01 8010100
8010451 CKT BOARD ASSY :SWEEP
80009 670-5549-01
A72
670-5549-02 8010452
CKT 80ARD ASSY : : SWEEP
80009 67D-5549-02
A74
670-5559-00 8010100
8010217
CKT BOARD ASSY :HIGH VOLTAGE 80009
670-5559-04
A74
670-5559-00 8010100
8010217
CKT 80ARD ASSY :HIGH VOLTAGE 80009 670-5559-00
A74
670-5559-01 B0102i8
8010365
CKT BOARD ASSY :HIGH VOLTAGE 8D009
670-5559-01
A74
670-5559-03 8010366
CKT BOARD ASSY :HIGH VOLTAGE 80009
670-5559-03
A74A1
119-1159-01
CKT BOARD ASSY :HIGH VOLTAGE
80009 119-1159-01
A77
670-5746-00 B01010D
8010324
CKT BOARD ASSY :CRT GRATICULE LIGHT 80009
670-5746-00
A77
670-5746-D1 8010325
CKT BOARD ASSY :CRT GRATICULE LIGHT 80009
670-5746-01
7_6
