Summary of Contents for EJEAS Q4

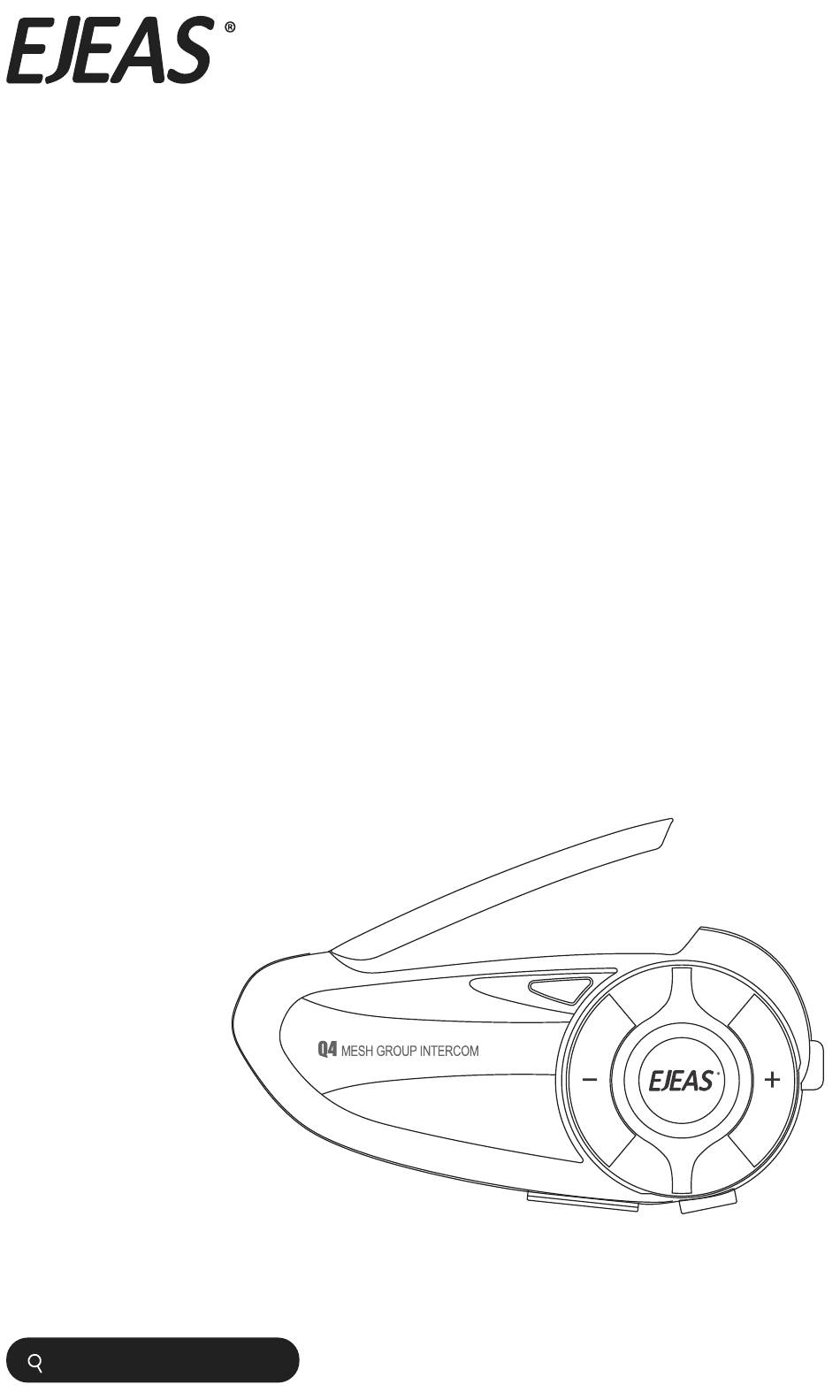

- Page 1 User manual MESH Group Intercom www.ejeas.com...
-
Page 2: Table Of Contents
CONTENTS 1. PRODUCT INSTALLATION Product installation 2. PACKING LIST Packing list 3. MESH GROUP TALKING OPERATION Basic operation diagram ON / OFF Intercom pairing Intercom reconnect Exit MESH network 4. PHONE PAIRING Phone pairing Phone re-connection Telephone answering Hang up the call Call rejection Last num redial Cancel the redial... - Page 3 The development of EJEAS MESH Group Intercom System solved the problem of intercom disconnection that most motorcycle riders often encounter during outdoor riding, promoted a better communication though out the group. The Q4 is a necessary communication tool for all the motor riders. Indicator Antenna...
-
Page 4: Product Installation
English 1. Product Installation Loosen the screws of the clip, install it on your helmet for fixed. Install the intercom on the clip. Use the Velcro stick inside your helmet, choose the stick/soft mic for your need. Organize the inside messy cables, and put them inside your helmet foam for easy wearing. -
Page 5: Packing List
Optional EUC remote control Host Earphone handle Mounting clip Microphone Cable User manual MESH Group Intercom www.ejeas.com Type-C charging cable Soft microphone Manual 3. Mesh Group Talking Operation Basic operation diagram Single-click Double-click Long press for 5s Simultaneous click ON/OFF Please charge before use. -
Page 6: Intercom Pairing
(If pairing failed, please re-operation) Intercom reconnect There is no creator anymore after pairing finished. Under standby, single-click the MESH button of all Q4 to join the MESH talking Red and Blue lights quick flash "Join the MESH" Start communication Red &... -
Page 7: Exit Mesh Network
(If no phone connected, it will exit pairing mode after 2 mins) Red & blue lights flash fast alternately "Pairing" Open your phone's Bluetooth, search Bluetooth and pair with Q4 Pairing successful Blue light twice flashes slowly "Pairing Successful, Connected" Current power will be shown on your phone... -
Page 8: Hang Up The Call
English Hang up the call Call rejection Last num redial Cancel the redial TEL priority When listening to music/intercom, & receiving a phone call. music intercom music intercom Call Interrupt Hang up Restore Volume control MESH intercom & Music allow working simultaneously. Music / TEL MESH intercom Music play/pause... -
Page 9: Voice Assistant
English Voice assistant Phone must support & open the voice assistant (Google assistant & Siri). Voice assistant Turn on voice assistant Press the phone button for 1 second Power query "Battery level high" "Battery level medium" "Battery level low" Low battery indication Charging indicator Charging Constantly Red... -
Page 10: Product Characteristics
English 5. Product Characteristics MESH version: MESH V2.0 Bluetooth version: Bluetooth 5.0 Audio encoding format: SBC and AAC Support: CVC noise reduction, 3D sound Intercom communication distance: Up to 1.2km in opened terrain, 4-rider up to 3.6km Music time: 22 hours Intercom time: About 8 hours Charging:... - Page 11 English Attention Installing equipment on the helmet is a modification of the helmet, which may cause the helmet's warranty to fail or hinder the helmet's function. This may cause danger in the event of accidents, so please fully understand the facts when using the helmet. If not, please return the product.
- Page 12 English Safety Precaution 1. Keep out of reach of children and pets: Please keep the products and all spare parts out of reach of children and pets. Children or pets may swallow small parts that can cause suffocation or other dangerous conditions. 2.
- Page 13 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equi pment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
