UniFi UWB-XG Quick Start Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

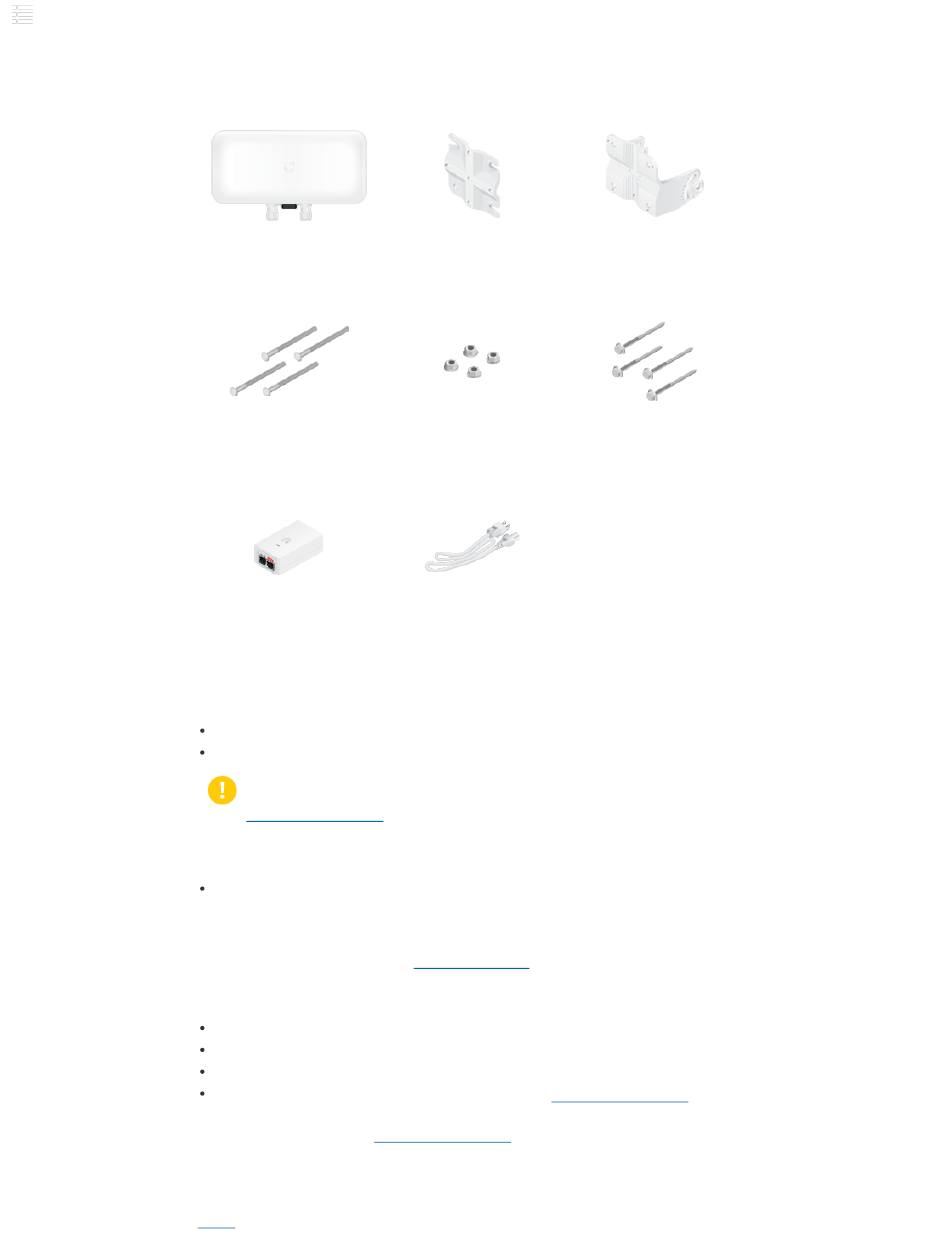

Package Contents

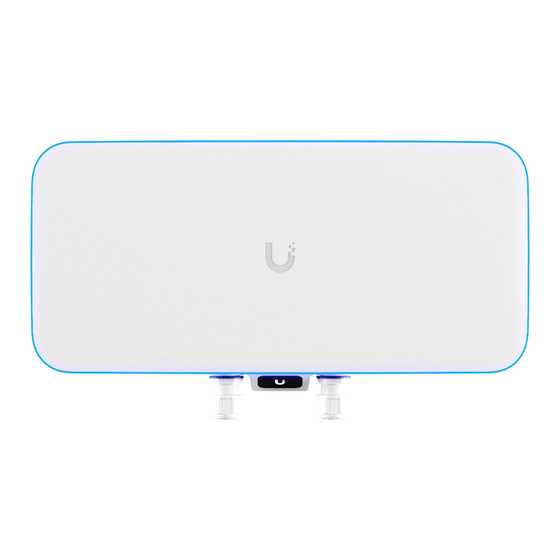

UniFi WiFi BaseStation XG

Carriage Bolts (Qty. 4)

Gigabit PoE (50V, 1.2A)

Installation Requirements

13 mm wrench

Category 5 (or above) UTP cable for indoor installations

IMPORTANT:

The UWB-XG requires the UniFi Controller v5.7 or higher,

available at:

ui.com/download/unifi

Outdoor Installation Requirements

Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet

connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from

Ubiquiti. For more details, visit:

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.7 or newer (available at: ui.com/download/unifi)

All UniFi devices support off-site management controllers. For setup details, see the

User Guide on the website:

ui.com/download/unifi

Hardware Overview

LED

UWB-XG Quick Start Guide

Adjustment Bracket

Flange Nuts (Qty. 4)

Power Cord

ui.com/toughcable

Pole Clamp

Lag Screws (Qty. 4)

Table of Contents

Need help?

Do you have a question about the UWB-XG and is the answer not in the manual?

Questions and answers

Summary of Contents for UniFi UWB-XG

Page 1 Java Runtime Environment 1.8 or above recommended Web Browser: Google Chrome (Other browsers may have limited functionality.) UniFi Controller software v5.7 or newer (available at: ui.com/download/unifi) All UniFi devices support off-site management controllers. For setup details, see the User Guide on the website: ui.com/download/unifi...
Page 2: Vesa Mounting
The 10 GbE port is a 1/10 Gbps Ethernet port used to connect to the LAN and DHCP server. It can also be used to connect the power. Note: The UWB-XG can be powered using an 802.3bt PoE switch or the included Gigabit PoE adapter. For instructions, see Connecting Power.
Page 3: Hardware Installation
UWB-XG Quick Start Guide Hardware Installation Pole Mount...
Page 4 UWB-XG Quick Start Guide...
Page 5 UWB-XG Quick Start Guide...
Page 6 Ethernet. UWB-XG Quick Start Guide Wall Mount To mount the UWB-XG on a wall or other sturdy flat surface, securely attach the Adjustment Bracket to the wall using the four Lag Screws. Note: The Adjustment Bracket must attach to a hard surface or other stable...
Page 7 UWB-XG Quick Start Guide...
Page 8: Connecting Ethernet
UWB-XG Quick Start Guide 8. Proceed to Connecting Ethernet. Connecting Ethernet Note: If you are using TOUGHCable, we recommend attaching the TOUGHCable Connector(s) after you insert the cable(s) into the cable gland(s). The cable gland is comprised of the following components:...
Page 9 UWB-XG Quick Start Guide...
Page 10: Connecting Power
You will use the included Gigabit PoE adapter to power the UWB-XG. Note: By default, the UWB-XG is set to 15 dBi for its small-cell gain. To switch to its large-cell gain of 10 dBi, use the UniFi Controller software.
Page 11: Software Installation
Controller software, refer to the User Guide. Mobile App Installation Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic...
Page 12: Specifications
UniFi Controller. It also allows seamless provisioning UWB-XG Quick Start Guide of APs for remote controllers (controllers not on the same Layer 2 network) and easy access to local controllers and those monitored on unifi.ui.com Specifications...
Page 13: Limited Warranty
Do not substitute the power cord with one that is not the provided approved type. Never use UWB-XG Quick Start Guide an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
Page 14: Declaration Of Conformity
This equipment should be installed and operated with minimum distance 24 cm between the UWB-XG Quick Start Guide radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AVIS IMPORTANT Déclaration sur l’exposition aux rayonnements...
