Sycamore VEGA SY8975 BN Installation Instructions

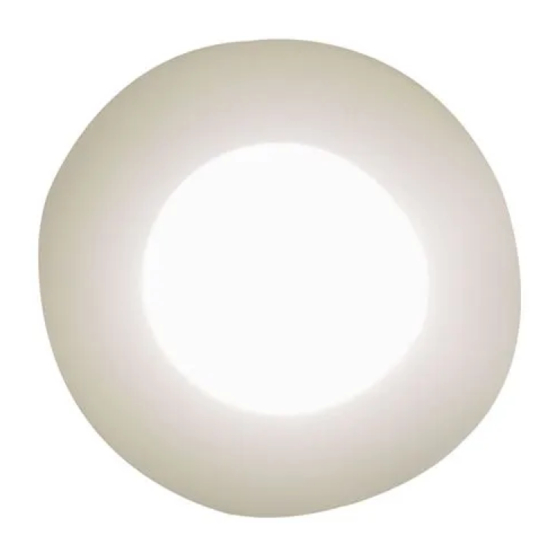

Installation instructions : SY8975 VEGA Round 4 Light Plinth Kit BN/NW
Thank you for purchasing this SycamoreLED.com product. Please make sure instructions are followed carefully prior to and during installation and
product is not altered, otherwise warranty may not be valid. For technical support or warranty information please visit www.sycamoreLED.com, or call
our dedicated technical helpline +44 (0) 113 2866686.
1) Please read these instructions carefully before commencing any work
2) This product must be installed by a qualified electrician in accordance with the current IEE wiring regulations
3) To prevent electrocution switch the power off at the mains supply before installing or maintaining this fitting
4) Ensure others cannot restore the electrical supply without your knowledge
5) The PSU must be rated 12VDC and be compatible with the pre-wired connector system of this product
6) Never exceed the wattage stated
Item Rated voltage/V
SY8975 12v DC
1) Prepare all the parts and tools required for the installation
2) Turn off power before installation.
3) If the housing or glass diffuser is broken or damaged do not use it.
1) For recessed cut the diameter hole 28MM
on the surface to which the light is being
installed (without surface spacer part).
2) Put the wire through the hole
3) Connect the power with 12VDC driver &
push the lamp into hole.
4) Ensure the body of the lamp is securely
fixed on the face of installation, then
restore the power and check operation.
5) For surface mounting or to install within a
wall, use the supplied surface spacer and
follow instructions 2-4 above.
1) Please note this fitting has non replaceable parts
2) Always switch off or disconnect from the mains when cleaning the product.
3) We recommend cleaning with a soft dry cloth. Do not use scourers, abrasives or chemical cleaners.
SycamoreLED.com
LS26 8XT
Technical helpline : 0113 2866686
*Please email sales@sycamoreled.com to register your product
IMPORTANT—Please read prior to installation
GENERAL
Rated power/W
4×1W
PRE—INSTALLATION

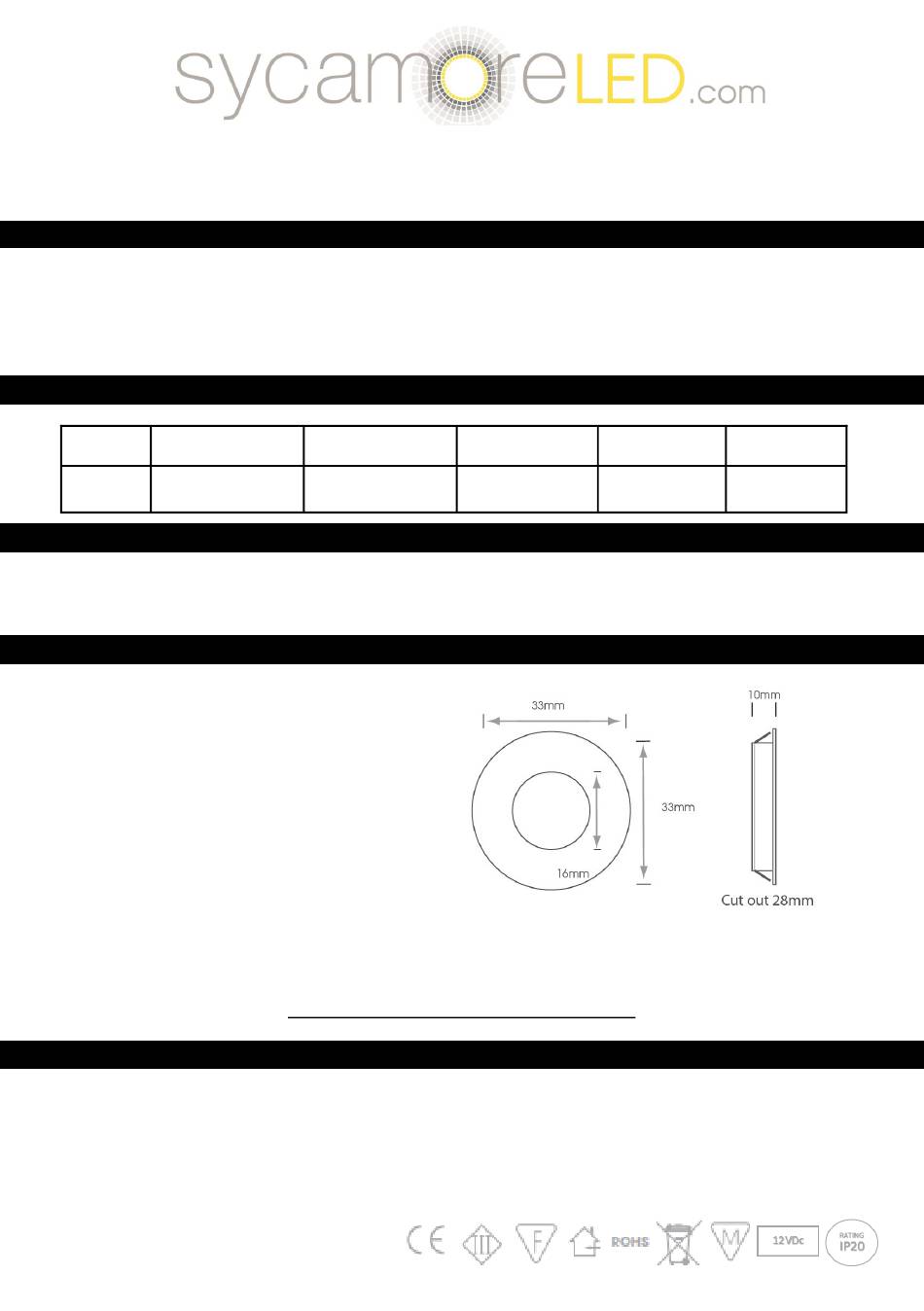

INSTALLATION with Diagram

Please note that the LED driver is IP20

CARE IN USE

LED numbers IP Rating
1/LT 20
Protection
CLASS
