IR Plus Assistive Listening System Table of Contents Safety Warnings and Instructions �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Avertissements et instructions de sécurité �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Recycling Instructions ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 System Overview ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Wi-Fi Network Required �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Router and Network Equipment Selection ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 Quick Setup Guide ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Modulator Front and Back Panel ...
Page 3
IR Plus Assistive Listening System Web Control Interface �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������15 Login Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������15 Status Page ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������16 Settings Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 17 Audio Page ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������18 Upload Image �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������19 Network Page ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������20 Administration Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������21 Front Panel Interface �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 22 Main Menu ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 22 Restoring Defaults ...
IR Plus Assistive Listening System Safety Warnings and Instruc- the appliance beyond that described in the operating instructions. All other servicing should be referred to tions qualified service personnel. Precautions: WARNING! TO REDUCE THE RISK OF FIRE OR 1. Power – WARNING, BEFORE TURNING ON THE POWER FOR THE FIRST TIME, READ THE FOLLOWING SECTION ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN CAREFULLY.
Page 5
IR Plus Assistive Listening System 4. Ne pas bloquer les évents de ventilation. d’entrée, de sortie, Ethernet ou USB lorsque l’interrupteur Installer conformément aux instructions du d’alimentation est sur la position de marche. fabricant. 4. Ne pas toucher le IR M1 avec les mains mouillées. Ne 5.
IR + supports the iOS and Android WaveCAST Apps and the Wi-Fi Receiver-- in addition to all of the current and legacy Williams Sound IR receivers. The system is designed to transmit high quality audio for hearing assistance and language translation applications. Because the system uses infrared light for transmission, it is not affected by interference from radio equipment and does not interfere with radio equipment.
IR Plus Assistive Listening System The WaveCAST Networking Guide is available on the Williams AV website for additional networking tips, and applies to all Williams AV Wi-Fi assistive listening products. Multiple Units Up to 4 WaveCAST systems (including WaveCAST, IR M1, FM+ and more) can be used on the same Wi-Fi network. Multiple devices will work better on more powerful networks and routers.
There is an emitter for audio output channel A and a separate emitter for channel B. Use any applicable Williams Sound receiver to test the audio. Hold the receiver within a few feet of the IR M1; the built- in emitter coverage area is not large and is only for testing.

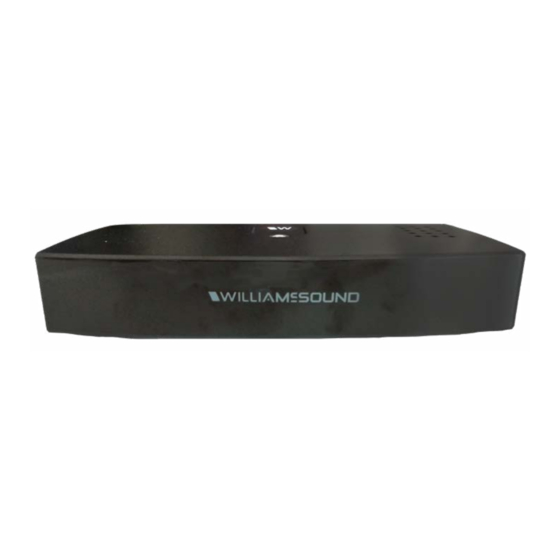

IR Plus Assistive Listening System Additional Devices To create a full IR system, additional devices will need to be connected to the IR M1. Note that devices can be disconnected or connected to the IR M1 at any time without needing to shut off or power cycle the IR M1. The IR E4 is an IR Emitter and up to four can be directly connected to the IR M1.
IR Plus Assistive Listening System IR + Coverage Pattern 10° 0ft/0m 0° 25ft/8m 50ft/15m 75ft/23m RX22-4 Receiver RX20 Receiver Installation Instructions The IR M1 Modulator is the key component to the IR+ System. Audio devices, emitters and more can be connected to the IR M1. This section will cover the installation instructions for physically setting up your IR + system.
IR Plus Assistive Listening System Determine Location The modulator is usually located with the sound system amplifier or mixer for easy access to an audio input signal. For portable systems, the modulator can be placed near the emitter or in another convenient location. Position the IR E4 emitters so the area is well covered and has minimal interference.
IR Plus Assistive Listening System Audio Source Connections The IR M1 Modulator will accept the following audio sources: 1. Balanced Microphone with or without 12-volt phantom power (DIN 45596) on a 3-pin (XLR) connector. 2. Balanced/Unbalanced microphone with or without phantom power on 1/4 inch (TRS) jack 3.
IR Plus Assistive Listening System System Settings Most settings are adjusted via the web interface by using a computer (see "Web Control Interface" on page 15). A handful of settings can be adjusted via the front panel display (see "Front Panel Interface" on page 22). Any configuration to the IR+ system is done through the IR M1, which passes the configuration setting onto other IR+ devices.
On a Williams Sound IR Receiver, the numeric channel numbers on the receiver represent a specific IR frequency. The receiver should be set to use the channel with the frequency that the audio output channel is being sent over.
IR Plus Assistive Listening System To set up a static IP Address: 1. Determine an appropriate static IP address for the IR M1. a. If someone set up your network, they may be able to help you determine an appropriate IP address (i.e. network system administrator).
IR Plus Assistive Listening System Status Page The status screen displays the current status of any devices connected to the IR M1. It displays the port the device is connected to, the type of device, whether audio is broadcasting over a channel, whether a channel is configured to broadcast audio, and alerts on the temperature, power level, or other errors.
IR Plus Assistive Listening System Settings Page The Settings page is used to adjust settings for Williams Sound devices attached to the IR M1 as well as settings for the IR M1 itself. Modulator Information Modulator information is adjusted on the Settings page. These are settings specific to the IR M1. The IR M1 can be named by editing the Description field.
IR Plus Assistive Listening System Audio Page The Audio page displays all current audio settings. Most of the settings on the audio page are per audio channel. Settings for channel A are edited separately from channel B. Two VU meters are visible at the top of the page. Each VU meter for informational purposes only, and does not set any settings. Note: Network speed can affect the audio monitor updating and web page performance�...
IR Plus Assistive Listening System Upload Image For each channel, an image can be uploaded that will display for any users listening using the WaveCAST app. This image can be used to easily distinguish the content of your audio broadcast. The image must be under 128kB and be in PNG or JPG format. The image can be replaced at any time.
IR Plus Assistive Listening System Network Page The Network Settings page affects settings specific to the server as a whole. The page displays network connectivity settings, which are typically not needed after initial installation. Changing a static IP address or subnet will not instantly take place. The changed IP address or subnet will only take affect once the device is rebooted,.
IR Plus Assistive Listening System Administration Page The Admin page displays administrative controls that can be used for remote site troubleshooting purposes. The login username and password for the website can be set from this screen. If the username or password is ever forgotten, it can be restored to its default value by restoring defaults via the front panel menu.
4. If the lower left corner of the box is empty, there is no device connected, the connected device is disabled, or the connected device is not a Williams Sound supported device.
IR Plus Assistive Listening System When a channel's audio is overloaded, a exclamation point will appear over that channels VU meter. Adjust the audio for that channel to fix the issue. There is no low level audio indicator. When channel A's VU meter is highlighted via the left or right arrow buttons, the gain for the channel will display and be adjustable using the up and down arrows.
WaveCAST App can be downloaded from the Google Play for Android devices or the Apple App Store for iOS devices. The WaveCAST App is compatible with the IR M1 and other Williams Sound Wi-Fi Assistive Listening Systems. Connect to Wi-Fi Network The personal device will need to be connected to the same Wi-Fi network as the IR M1.
Page 25
IR Plus Assistive Listening System Website not behaving as expected • The website will only work with a modern browser. Do not use the website with IE11 or earlier. • Do not use the website with Firefox; there are known communication issues with the website when using this browser. •...
Page 26
Sound Through The Receivers Is Weak And Noisy. • Listen to the audio signal through the Phones jack of the IR M1 modulator. You can also hold a receiver in front of the built-in emitters on the front of the IR M1 modulator and listen to the audio signal. Hold the receiver within a few feet of the IR M1. •...
Page 27
IR Plus Assistive Listening System Device is not working over Wi-Fi Note: If you have a network system administrator, please contact them first before attempting to troubleshoot the network yourself� If you don’t have a system administrator, the following steps are things you can try on a small, non-managed network� This situation is most often caused by the mobile device losing connection to the router when the Wi-Fi on the mobile device has been turned off (or the Wi-Fi reception is unstable).
Specifications IR M1 Dimensions: 19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm) Weight: 5.2lb. (2.4 kg) Color: Black Rack Mount: Single Rack Unit Power Supply: International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive Power Switch: Rocker switch with LED...
IR Plus Assistive Listening System Mounting Options BKT 024 - Universal wall / ceiling mount (included) MLB 003 - Linking bar for stacking emitters STD 007 - Tabletop tripod stand The IR E4 can be mounted on any camera tripod stand with a 1/4” - 20 threaded connector. Optional Receivers WIR RX22-4 Receiver IR RX20 Receiver...
IR M1: 2-Year Warranty Statement Williams Sound, a brand owned by Williams AV, products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams AV warrants the IR M1 modulator against defects in materials and workmanship under normal use and conditions for the 2-years from the product from date of purchase.
IR Plus Assistive Listening System IR E4: 2-Year Warranty Statement Williams Sound, a brand owned by Williams AV, products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams AV warrants the IR E4 emitter against defects in materials and workmanship under normal use and conditions for the 2-years from the product from date of purchase.
