Mounting manual EMZY | electronic motorised cylinder
Short version: For the detailed mounting and installation manual see: http://www.evva.at/products/motorised-cylinder/emzy-electronic-motorised-cylinder/en/
The EVVA EMZY motorised cylinder offers security, comfort and design. Every EVVA installation
*
may easily and rapidly be upgraded to an electronic locking system with an EMZY motor thumb
turn unit.

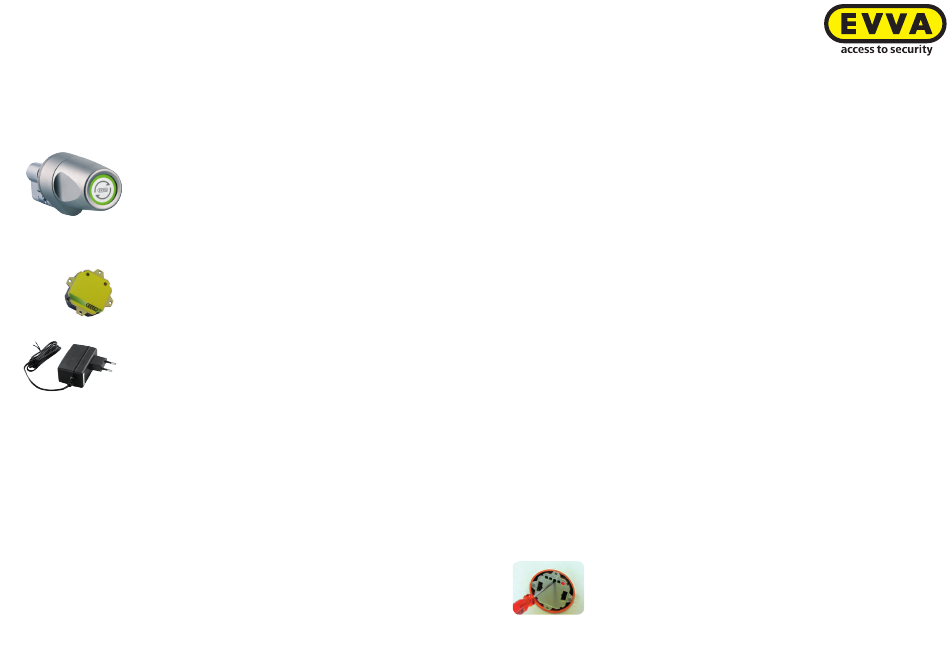

MZT 35 – motorised cylinder
• Can be integrated in every EVVA locking system.
• Adjustable to every door thickness by modular construction.
• Minimum back set of 35 mm.
• Suitable for all customary escutcheons.
• With spacers a gapless transition between thumb turn and the
escutcheon is possible.
• Intuitive thumb turn push button
MCU MI micro control unit
• Mountable in default panel outlets.
• Very fast initialisation by "interactive learn"
• Supply voltage: DC 12V +/- 5% min.1A
Mains adapter for control unit
• Input voltage: AC230V +/-10% 50Hz
• Output voltage: DC 12V / 2A +/- 2%
Outputs of the control units
f May be reprogrammed and receive another function, see manual Stand 07.2003
f Attention: The open collector transistor output is not potential-free
f The use of an relay control makes a free-wheeling-diode necessary
f Maximum load of the relay contact = 30 V / 1 A
f Door openers with a maximum current draw up to 300 mA may
be operated with the standard power supply MCU-NT.
Installation of the motorised cylinder
1. Before mounting the motor thumb turn unit has to be inserted in the inner plate of the
security escutcheon. The cylinder recess must be enlarged at the bottom by 5mm to avoid
mechanical damaging of the cable.
2. Connect the connexion cable EVKA to the motor thumb turn unit. Be careful with the cable
routing!
3. Insert the motorised cylinder into the mortise lock.
4. Fix the motorised cylinder and the escutcheon.
Electronic motorized cylinder
Implementation Interactive Learn
After the installation the control unit must be informed about the mounting situation.
After power-on the control unit enters a wait mode, which is left by activating
"interactive learn". All parameters are reset to the basic settings of the firmware and
the LED flashes red-red & green-green-end etc.
Procedure, step by step:
•First the EMZY-knob has to be turned manually to the open dead-stop and the door
be opened.
•for the feature "acts like a door push button" the knob push button must be released
before the door closes again.
•for the feature "intelligent push button" the knob push button must be held during the door
closing.
Two seconds after closing of the door the motor knob starts turning into the direction
dead stop locked and than back into the neutral position.
In this way (1) existence of knob push button, (2) knob push button feature,
(3) direction of rotation, (4) number of revolutions, (5) existence of a bolt contact are
identified and memorized.
If at this stage an impossible number of revolutions (installation error, broken lock?) is
identified the control unit changes into the state "failure". Now a restart is only possible
with power off/on (after the fault repair) or by pressing the learn button.
Now a 15 sec reset wait time starts and if necessary a emergency and a latch
retraction can be parameterized. If the reset wait time goes by without further action
of the user, the EMZY micro control unit is restarted again without emergency or
latch retraction function.
•With an emergency lock the handle must be activated within this wait time and the door
emergency opened. After closing the door the EMZY locks it, the parameters
(6) emergency feature are saved and the reset wait time is started again.
This item is skipped for non emergency locks.
•Latch retraction: Within the wait time the door or knob push button is pressed, than
the open neutral position is awaited. Now the reset wait time is started again.
A manual turning of the knob direction open side, then an opening and closing of the
door save the parameters (7) latch retraction activation.
•Stand by: For the standby mode it is only necessary to await the reset wait time and
the restart of the control unit. By activation of the hidden learn button the "interactive
learn can be started any time.
Implementation "Interactive Learn"
After the installation of the EMZY the control unit parameters must be set appropriate to the
mounting situation. After the power-on the control unit enters a stand-by mode, which only can
be left by pushing the learn button on the MCU MI to start the "interactive learn" process.
Electronic motorized cylinder
Proceeding:
Mounting- and operation manual
f First turn the EMZY thumb turn manually to the open dead-stop and open the door.
f For the function "acts like a door push button" release the push button before the door closes.
The new EVVA EMZY generation offers
f For the function "intelligent push button" press the push button while the door closes.
more security, comfort and design. With
the EMZY motor knob unit every EVVA
Two seconds after the closing of the door the motor thumb turn starts turning into the direction
locking installation can easily and
dead stop locked and then back into the neutral position. With it the existence of thumb turn
rapidly be extended with an electronic
push button, the thumb turn push button feature, the direction of rotation, the number of
controlled lock and unlocking system.
revolutions, the existence of a bolt contact are identified and memorised.
In case of an impossible number of revolutions (e.g. installation error, broken lock) the control
unit will identify a failure and change into the state "error". After solving the problem the restart
Components
is only possible with power off/on or by pressing the learn button.
MKT 35 motor knob module
Now a 15 sec reset wait time starts. If necessary an emergency lock function and a latch
Can be integrated in every EVVA locking
retraction function can be parameterized now. If the reset wait time passes without further action
system. Adjustable to every door thickness
of the user, the EMZY micro control unit restarts without emergency or latch retraction function.
by modular construction. Usable for a
f
f Withfanfemergencyfmortiseflockfthefhandlefmustfbefpressedfwithinfthefwaitftimefandfandf
minimum back set of 35 mm.
f emergencyfopeningfmustfbefperformed.fAfterfthefclosingfoffthefdoorfthefEMZYflocksfthefdoor,ff
Suitable for all usual commercial escutcheons.
f thefemergencyffeaturefisfmemorisedfandfthefresetfwaitftimefstartsfagain.f With spacers a gappless transition between
knob and escutcheon is possible.
f Withfafnon-emergencyfmortiseflockfthisfpointfcanfbefskipped.
MCU MI EMZY micro control unit
f f NOTE: ThefEMZYfisfnotfcompatiblefwithfallfemergencyfmortiseflocks.fClarifyfitfwithf
f theflockfmanufacturer.
Mountable in default panel outlets.
Very fast initialization by "interactive learn".
f Supply voltage: DC 12V +/- 5% min.1A
f Latchfretraction:fPushfthefthumbfturnfpush-forfthefdoorfpushfbuttonfwithinfthefwaitftimefandf
f waitfuntilfthefopenfneutralfpositionfisfreached.fThefresetfwaitftimefstartsfagain.fTurnfthefthumbf
f turnfmanuallyfinfthefopenfdirection,fopenfandfclosefthefdoorftofsavefthefparametersfforftheff
MCU NT power supply
f latchfretractionffunction.
Mountable in default connectors (80*80mm)
Input voltage: AC230V +/-10% 50Hz
f
f Readyfforfoperation: Waitfforfthefendfoffthefresetftimefandfthefrestartfoffthef
Output voltage: DC 12V / 1A +/- 2%
f controlfunit,fandfthenfthefEMZY-MIKROfwillfbefreadyfforfoperation.fThef"interactivef
f learn"fprocessfcanfbefrestartedfatfanyftimefbyfpressingftheflearnfbutton.f
*Short version
Detailed mounting and operation manual is
found in the enclosed CD.
*
Rev. 03.2004
