ArtNet-DMX Mux24
User Manual
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX4ALL ArtNet-DMX Mux24 and is the answer not in the manual?

Questions and answers

Related Manuals for Artistic Licence DMX4ALL ArtNet-DMX Mux24

Summary of Contents for Artistic Licence DMX4ALL ArtNet-DMX Mux24

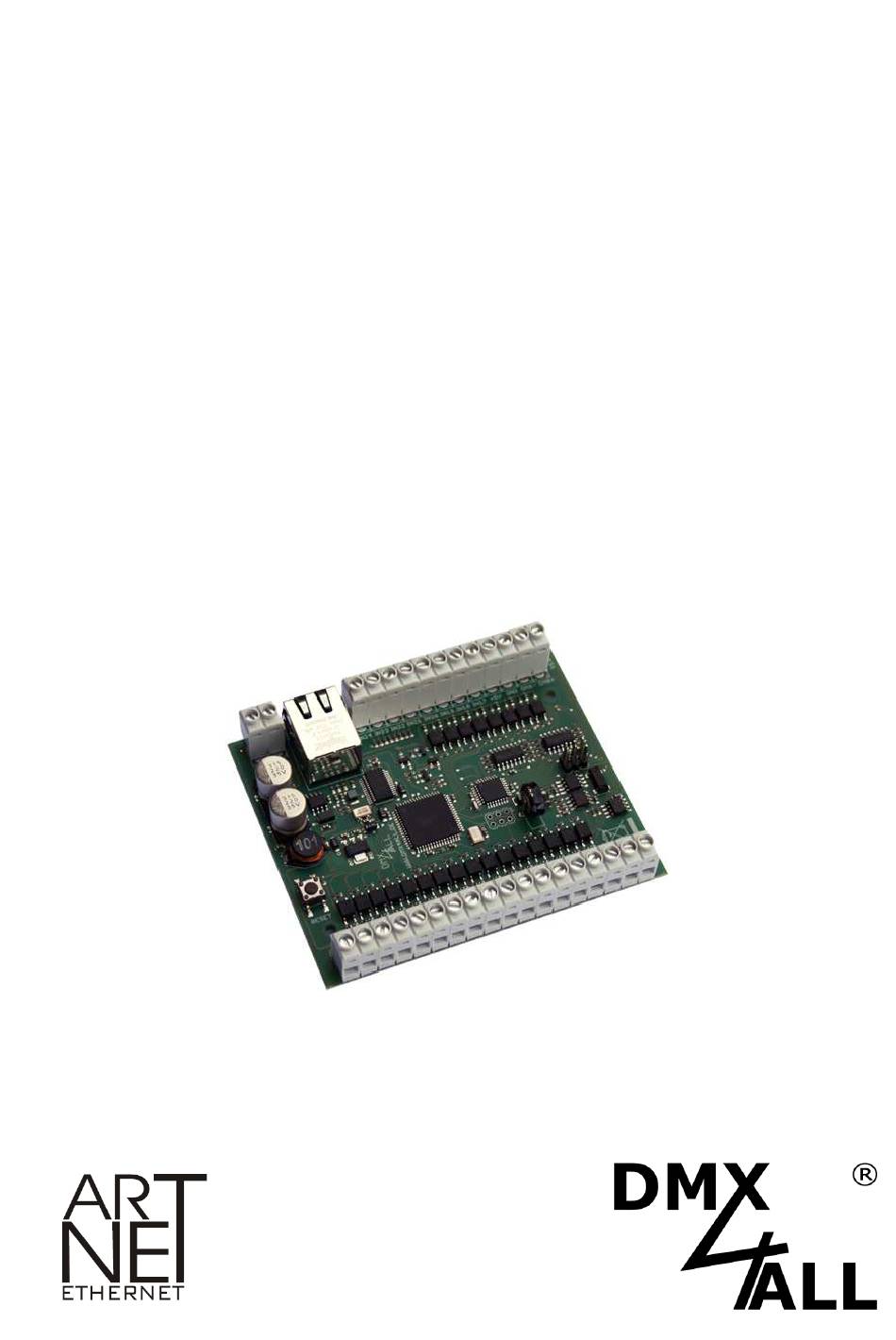

  • Page 1 ArtNet-DMX Mux24 User Manual Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

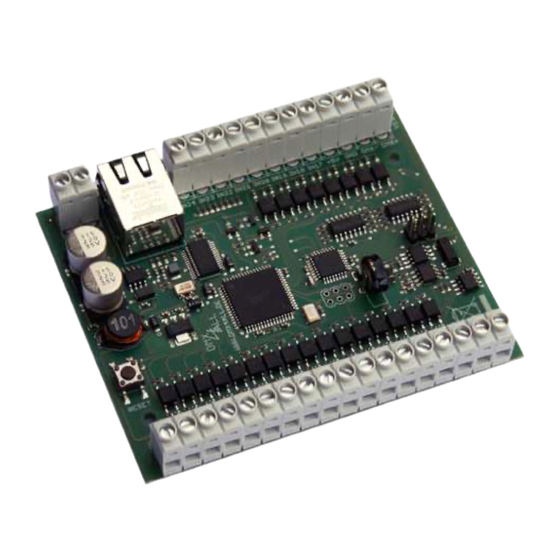

  • Page 2 ArtNet-DMX Mux24 Description The ArtNet-DMX Mux24 has 16 digital inputs and 8 additional inputs which are adaptable analog or digital. The output occurs via ArtNet and DMX. 16 Long Distance Inputs There are 16 digital inputs available to connect buttons or switches. The inputs are designed as Long Distance inputs, so the switching elements can also be mounted at a greater distance.

  • Page 3: Data Sheet

    ArtNet-DMX Mux24 Data sheet Power supply: 7-24V DC / 0,5A Ethernet: RJ45 DMX-OUT: 512 DMX-Channels Inputs: Long Distance Digital Input Analog Input or Long Distance Digital Input Modes: Switch Button ON Button OFF Button ON/OFF Dimmer UP Dimmer DOWN Dimmer UP/ DOWN Button ON + Dimmer UP Button OFF + Dimmer DOWN Button ON/ OFF + Dimmer UP/ DOWN...
  • Page 4 ArtNet-DMX Mux24 Connection Ethernet Analog 0-10V Analog 0-5V Analog 1-10V POWER 12-24V DC DMX OUT ArtNet-DMX Mux24...

  • Page 5: Led Display

    ArtNet-DMX Mux24 LED-Display LED green The green LED flashes, if there is no Ethernet connection available and lights permanent, if an Ethernet connection is available. LED yellow The yellow LED lights up as soon as data are received. Configuration The ArtNet-DMX Mux24 configuration occurs via a web-interface which can be called up via any web browser.
  • Page 6 ArtNet-DMX Mux24 Set the IP with the web browser The assigned IP-Address within the delivery status is 2.0.0.5 which will be used for the web-interface as well as for the ArtNet. Set your computers network card to this IP range to access the IP address via the web browser.

  • Page 7: Device Configuration

    ArtNet-DMX Mux24 Device Configuration Please call up the IP of the ArtNet-DMX Mux24 within the web browser and address bar (delivery status: 2.0.0.5) and to get the following configuration side: GLOBAL SETUP Device settings Each device needs an own IP-Address that the assignment occurs clearly within the network.
  • Page 8 ArtNet-DMX Mux24 Destination settings The Destination settings specify the values for the ArtNet-Output. With Dest. IP the IP-Address will be entered to which the data should be send via ArtNet (Unicast). Broadcast activates the ArtNet-Data output to all ArtNet-Devices. The Dest. IP will not be considered in this case.
  • Page 9 ArtNet-DMX Mux24 Digital Inputs (IN1-IN16) The digital inputs are realized as LONG DISTANCE inputs which allow using longer supply pipes to the switching element. The input wiring occurs with a switch or a button, connect to GND, as shown in the following outline: The inputs can be configured via the web interface.
  • Page 10 ArtNet-DMX Mux24 The channel entry occurs as decimal value from 1 up to 512. If several channels should be controlled via input, the single values must be entered separated and with comma. For example a single channel with “1” or several channels with “1,4,7”. Furthermore it is possible to specify to be outputted.
  • Page 11 ArtNet-DMX Mux24 Use digital inputs as binary inputs For the digital inputs there are the possibilities to build one output value away several inputs. In this case the input must be configured as Switch. The specification for the channels needs than a +=VALUE. So, for the specified channels the value will be added.
  • Page 12 ArtNet-DMX Mux24 Analog / Digital Inputs (IN17-IN24) The analog/digital inputs are adaptable for using as LONG DISTANCE digital inputs or analog inputs. The inputs will be configured via the web-interface. The selection, if the inputs should be used analog or digital, occurs in the Global SETUP.
  • Page 13 ArtNet-DMX Mux24 The wiring can occur in several ways. Connection with external analog signal (0-10V / 0-5V / 1-10V) analog 0-10V analog 0-10V Connection with potentiometer Connection as digital input The wiring as LONG DISTANCE digital input occurs with a switch or button, connect to GND as shown in the following picture:...
  • Page 14 ArtNet-DMX Mux24 Timer The ArtNet-DMX Mux24 serves 4 timer. Each of these have a time for switch-on and a time for switch-off as well as a selection for the weekdays on which the timer should be active. The channel on which the timer should work will be specified as decimal value from 1 up to 512.
  • Page 15 ArtNet-DMX Mux24 DMX-Output The ArtNet-DMX Mux24 has a DMX-Output DMX-Output which can be used to connect DMX-able devices directly. DMX OUT ArtNet-DMX Mux24 At the DMX-Output a DMX-Signal with 512 DMX-Channels will be outputted. The values of the DMX-channels will be determined via the digital inputs and the configuration.

  • Page 16: Factory Reset

    ArtNet-DMX Mux24 Factory Reset The ArtNet-DMX Mux24 can be set into the delivery status via the button. Please proceed as follows: Turn off the device Push button and hold Turn on the device The yellow LED flashes Release button Push button again and hold The green and yellow LED flashes now for ca.
  • Page 17 ArtNet-DMX Mux24 Execute an Update The ArtNet-DMX Mux24 has an Update-function which allows transferring prospective Firmware-versions. Please proceed as follows: Turn off the device Push button and hold Turn on the device The yellow LED flashes Release button Generate a net-work connection to the PC Start the Update-Software DMX4ALL LAN-Updater Select the ArtNet-DMX Mux16 from the list Click Firmware-Update...
  • Page 18 ArtNet-DMX Mux24 Equipment Top-hat rail housing 1050 Power supply 12V / 20W Network cable...
  • Page 19 Warning: It is not allowed to use the device in an operation, where the safety of persons depend on this device ™ ArtNet is a trade mark of Alderamin Group Ltd. Designed by and Copyright Artistic Licence Holdings Ltd.
  • Page 20 DMX4ALL GmbH Reiterweg 2A D-44869 Bochum Germany Last Change: 11.02.2018 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems. All information contained in this manual was arranged with largest care and after best knowledge.
