How to: IRIS

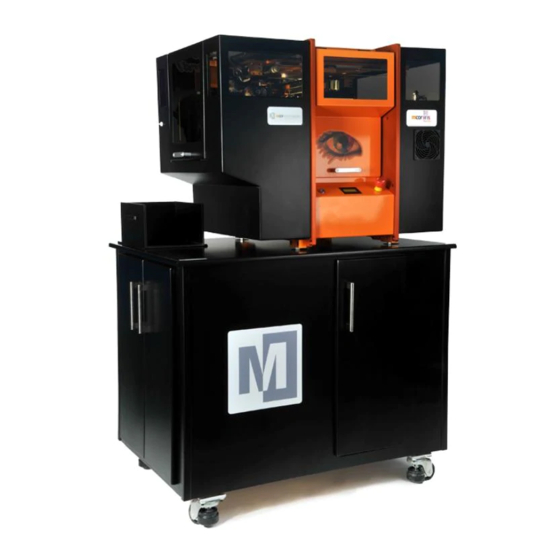

Welcome! This is a step-by-step guide on how to use the Mcor IRIS paper 3D printer.
Because you are probably going to at one time, Mcor Support can be contacted at:
+353 41 686 2800 or support@mcortechnologies.com,
supportcenter.mcortechnologies.com/support/home
Let's begin!
First, take a look at the machine:
Build space
Printer head assembly
or through their online support centre:
Glue container
Heat plate
Printer head assembly
Build plate
Reset button
User display
Big Red Button
Glue valve
Side door
Paper depot
Front door
Glue dispenser
Glue wheel
Knife tip
Preparing prints
Printing models
Maintaining IRIS
Front
On/Off (back)
Side door
Advertisement
Related Manuals for Mcor Technologies IRIS
Summary of Contents for Mcor Technologies IRIS
- Page 1 Printing models Maintaining IRIS Welcome! This is a step-by-step guide on how to use the Mcor IRIS paper 3D printer. Because you are probably going to at one time, Mcor Support can be contacted at: +353 41 686 2800 or support@mcortechnologies.com, or through their online support centre: supportcenter.mcortechnologies.com/support/home...
-
Page 2: Prepare The Machine
Click the arrow to access the options shown on the right. It is pretty straight forward. Now that you are familiar with the ins and outs of the IRIS, do this: Prepare the machine:... -
Page 3: Load Paper
Before every print, make sure there are no pieces of paper or dried glue stuck between the glue wheel’s pulley and belt, and to the glue wheel it self. This may overload the motor. The knife and holster should also be cleaned of paper dust every 200-250 layers to maintain free rotation and good cuts. - Page 4 Accepted file formats: STL, OBJ, VRML and Collada. 7 SliceIT SliceIT is IRIS’s print preparation program, in which you add and orient your model(s) inside the build space. SliceIT has to run while the print is in progress. Let’s explore the command line:...
- Page 5 7 hours –> 8 Start build Return to IRIS and click on the Standby arrow. • If you have done what you should and already prepared the machine, chose option 3) Run Build. • If not, chose option 2) Setup Build and do point 2–5 of this guide in shame.
- Page 6 Find and remove/resolve the cause of printing. Known causes: Jammed the stop and restart IRIS via power paper debris, Emergency button button. If this does not work, clean IRIS not released, knife not rotating. thoroughly. If still, contact service. Glue leaking from...
