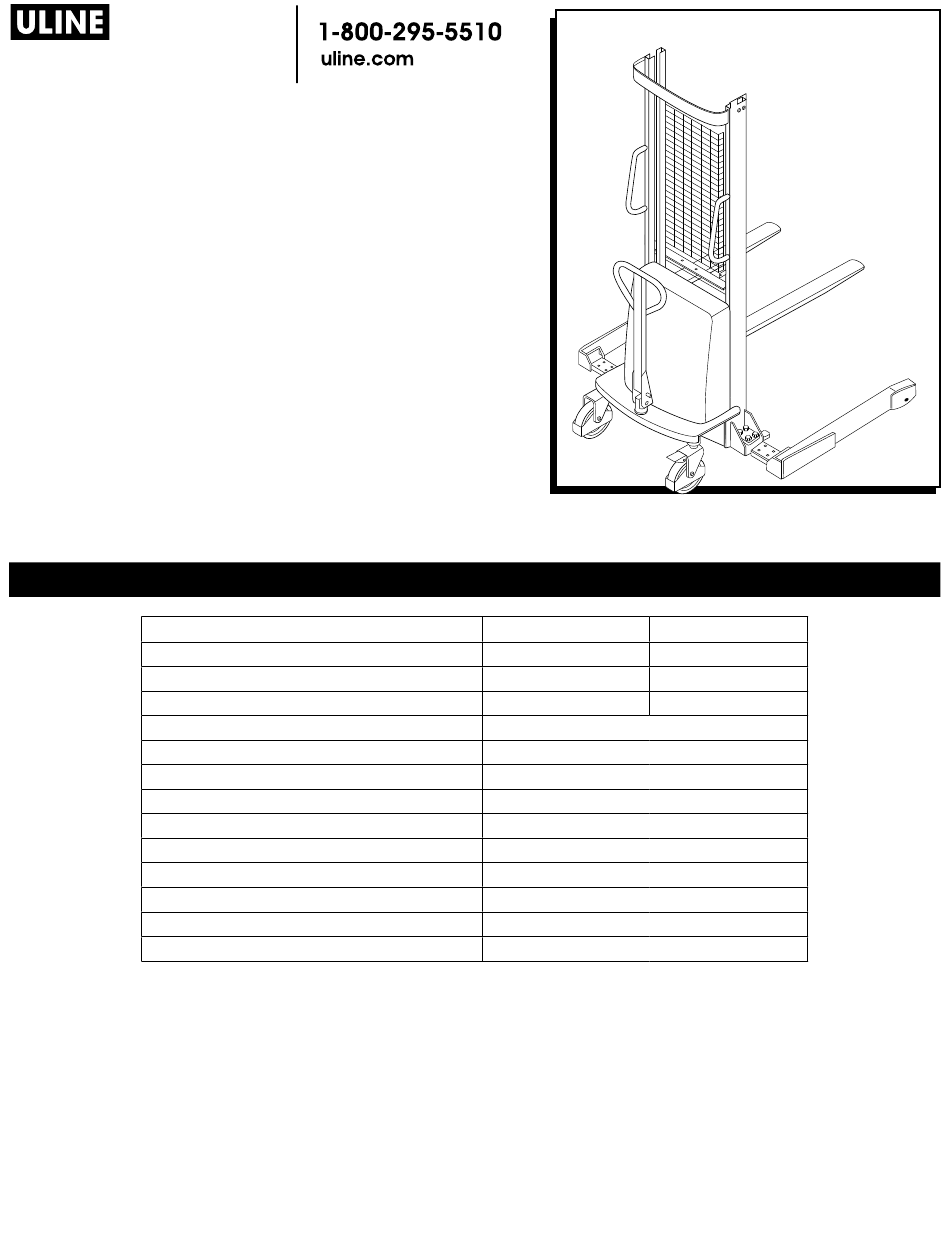

H-2651
H-2652
STRADDLE STACKER
DESCRiPTiOn
Mast Height (Lowered)
Mast Height (Raised)
Lifting Height, Max.
Lifting Height, Min.
Overall Length
Overall Width
Fork Size - Length
Fork Size - Width
Forks Adjustable Width (Inside Dim.)
Forks Adjustable Width (Outside Dim.)
Straddle Legs (Inside Dim.)
Straddle Legs (Outside Dim.)
Straddle Leg Height
PAGE 1 OF 4
TECHniCAL DATA
H-2651
77¾"
80"
H-2652
91½"
160"
63"
137"
2
⁄
"
1
8
70"
42½ - 54½"
42"
4"
½ - 20"
8½ - 28"
38¾ - 49¾"
43¾ - 54¾"
5⁄"
0812 IH-2651
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-2651
Summary of Contents for U-Line H-2651
- Page 1 H-2651 H-2652 STRADDLE STACKER TECHniCAL DATA DESCRiPTiOn H-2651 H-2652 Mast Height (Lowered) 77¾" 91½" Mast Height (Raised) 80" 160" Lifting Height, Max. 63" 137" Lifting Height, Min. ⁄ " Overall Length 70" Overall Width 42½ - 54½" Fork Size - Length 42"...
- Page 2 inSTRuCTiOnS ADJUSTING THE LEGS (SEE FIGURE 1) ADJUSTING THE FORkS (SEE FIGURE 2) Unscrew and remove the 4 bolts and washers (1⁄") Lift the front of the fork up and slide to the desired in the base of the stacker. position.
- Page 3 SAfETy 1. Operator should read all warning signs and 6. Do not move the stacker unless the forks are 12" or instructions here and on the stacker before using it. less off the ground. 2. Do not operate this stacker unless you are familiar keep a two-foot distance between the stacker and with it and have been trained or authorized to do so.
- Page 4 TROubLESHOOTing OPERATING ISSUE CAUSES RECOMMENDATIONS The forks do not go up to the Not enough hydraulic oil. Pour in hydraulic oil. maximum height. Oil has impurities. Change the oil. The motor does not turn on. Emergency Shut-Off is pressed down, the Turn it clockwise, switch the power on.
