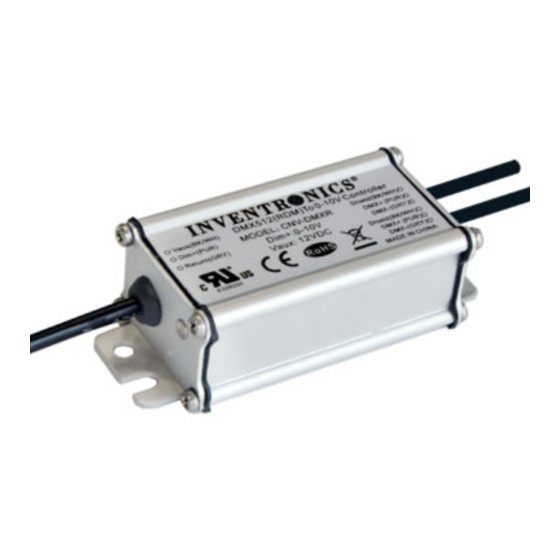

Summary of Contents for Inventronics CNV-DMXR
-
Page 1: Cnv-Dmxr Tool User Manual
CNV-DMXR Tool User Manual Version 3.0 CNV-DMXR Tool User Manual 1 / 12 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com... -
Page 2: Table Of Contents
CNV-DMXR Tool User Manual Version 3.0 Content CNV-DMXR Tool User Manual ........................ 1 Purpose ................................. 3 Required Materials ............................3 Wiring Diagram ............................. 3 Instructions ..............................3 Software Installation ............................. 4 Install the USB driver and serial port driver library .................. 4 User Interface ............................... -
Page 3: Purpose
CNV-DMXR PC (win XP, win 7 Microsoft .NET Framework 4.0)with CNV-DMXR Tool installed Wiring Diagram A wiring diagram for connections required to program the CNV-DMXR can be seen below in Figure 1. USB to PC Rxd- UTEK UT890 Rxd+... -
Page 4: Software Installation
CNV-DMXR Tool User Manual Version 3.0 Software Installation Install the USB driver and serial port driver library 1. extract the file USB_MCom.rar 2. run USB_MCom.exe 3. Enter the installation interface, click on the next step, and then click Finish 4 / 12 Specifications are subject to changes without notice. - Page 5 CNV-DMXR Tool User Manual Version 3.0 5 / 12 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com...
-
Page 6: User Interface
Port Selection The CNV-DMXR Tool will automatically detect if a UT890 is connected to the PC via USB on program startup. The port being used will be displayed in the upper right corner. If no port is shown, see the Troubleshooting section below. -
Page 7: Indicator Box
CNV-DMXR Tool User Manual Version 3.0 Indicator Box The indicator will either show as “Red” or “Green.” “Red” means that a read or write was not successful, and “Green” indicates a successful read or write. When the software is opened, the indicator box will show as “Green.”... -
Page 8: Dmx512 Address
The default address of the CNV-DMXR is “2.” To write a new address to the CNV-DMXR, type in the desired address in the text box, and click “Write Address.” DMX address must be in the range of 1 to 512. -
Page 9: Parameters Setting
“Linear.” （2）、After an external power cycle, the CNV-DMXR shall activate the power on level (range of validity : 0 - 255 ) , if the Power On Level function is enabled. If it is not set, the default level is 0. -
Page 10: Dimming Value Test
“Dimming” button. The “Dimming Value Test” function is meant for troubleshooting and development. Inventronics also recommends testing with a standard DMX controller, as the CNV-DMXR tool only broadcast one command at a time, while standard DMX controllers are constantly broadcasting data. -
Page 11: Troubleshooting
If the programming is successful, the indicator box will change to green. If there is an issue, it will turn red. If programming is not successful, check the following Connection between CNV-DMXR and the UT890 (See Figure 1) Ensure that the CNV-DMXR is powered (12VDC, 200mA max) ... -
Page 12: Shortcut Operation
CNV-DMXR Tool User Manual Version 3.0 Shortcut operation To simplify the operation, CNV-DMXR tool provides several shortcuts. Press the “Alt” key to give a prompt. • Read Address is R； • Write Address is W； • Dimming is D； •...
