Move Green Global DWS312 Quick Start Manual

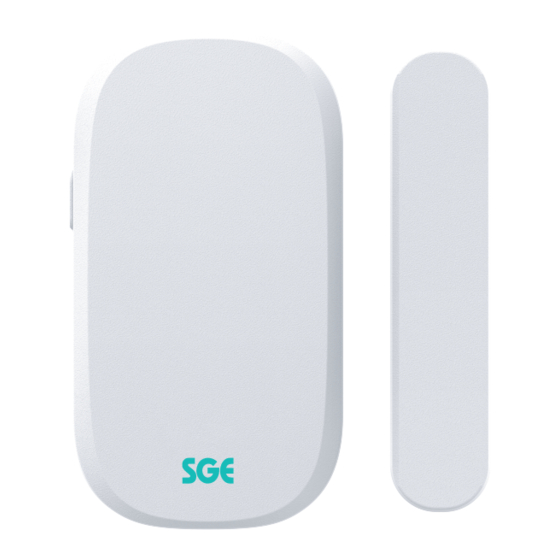

Door/window sensor
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

DWS312 Door/Window Sensor
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWS312 and is the answer not in the manual?

Questions and answers

Summary of Contents for Move Green Global DWS312

  • Page 1 DWS312 Door/Window Sensor Quick Start Guide...
  • Page 2 1. Introduction The Door/ Window Sensor detects if your door or window is open or closed. It allows you to receive notifications remotely from the mobile app and can be used to trigger an alarm. This guide will provide you with an overview of the product and help you get through the initial setup to installation.
  • Page 3 3. Get started 3.1 To get started, you will need:  A SEG-X3 Smart Gateway  The mobile app 3.2 Connect to gateway’s network 1. Set your gateway to permit pairing. 2. Power on the Door/Window Sensor. Press the reset button and the LED indicator will flash red for three times indicating the sensor is ready to join the gateway's network.
  • Page 4 3.3 Mounting instructions 1. Make sure that the surface is clean to ensure good bonding. 2. Peel off the liner on the double-sided tape and place the sensor on the door/window. Be sure that the two sensor parts should be within 1/8” of each other when the door/window is closed.
  • Page 5 4. Technical Specifications CR2450V 850Mah Lithium  Battery battery Working Temperature -10°C~+45°C  <=85%RH Humidity  Networking ZigBee 2.4GHz IEEE 802.15.4  Mode Outdoor/Indoor range: Networking  (100m/30m) Distance  Sensor: 62x33x14 (H)mm Dimensions  Weight  5. Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the device or...
