SMARTSCAN 5K8 SERIES LIGHT CURTAIN

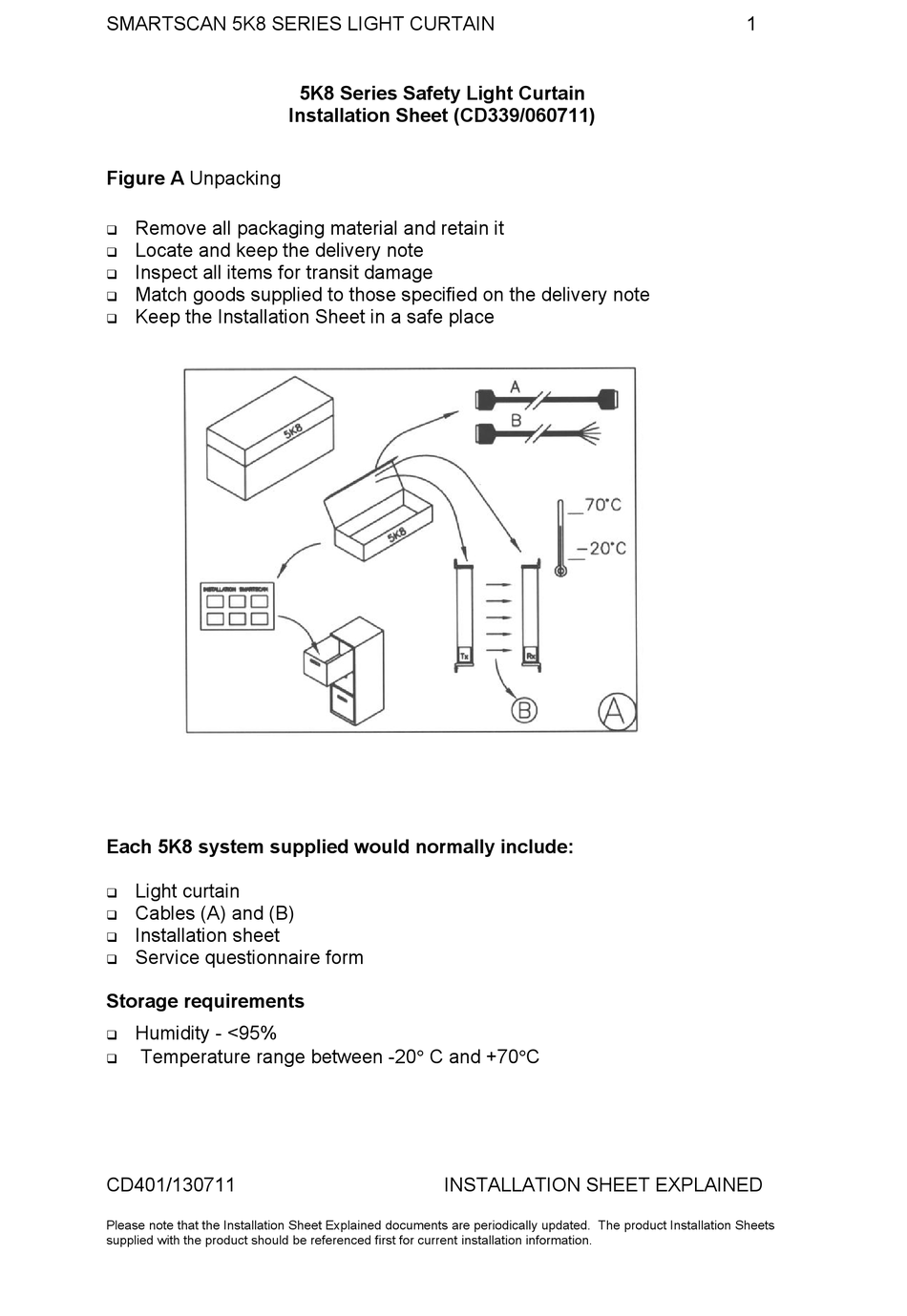

Figure A Unpacking
Remove all packaging material and retain it
Locate and keep the delivery note
Inspect all items for transit damage
Match goods supplied to those specified on the delivery note
Keep the Installation Sheet in a safe place
Each 5K8 system supplied would normally include:
Light curtain
Cables (A) and (B)
Installation sheet
Service questionnaire form
Storage requirements
Humidity - <95%
Temperature range between -20 C and +70C
CD401/130711
Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets
supplied with the product should be referenced first for current installation information.
5K8 Series Safety Light Curtain
Installation Sheet (CD339/060711)
INSTALLATION SHEET EXPLAINED
1
Advertisement
Summary of Contents for SMARTSCAN 5K8 Series
- Page 1 SMARTSCAN 5K8 SERIES LIGHT CURTAIN 5K8 Series Safety Light Curtain Installation Sheet (CD339/060711) Figure A Unpacking Remove all packaging material and retain it Locate and keep the delivery note Inspect all items for transit damage Match goods supplied to those specified on the delivery note ...
- Page 2 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure B Operating Requirements Humidity <95% Temperature range between 0 and 50 degrees C Vibration frequency <55Hz max. Displacement <0.35mm Equipment should not be used in potentially explosive atmospheres. The units are not ‘EX’ rated. Do not use the equipment in explosive atmospheres.
- Page 3 SMARTSCAN 5K8 SERIES LIGHT CURTAIN The X Cable is required if the user has opted to use a Smartscan reset station. The X cable has two 25 pin D connectors with one end having a socket and the other end with a plug. The cable is interfaced with the socket end connected to the Reset station and the plug end connected to the receiver head of the 5k8 series.
- Page 4 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure D shows 5K8 Series light curtain end-bracket dimensions. Use M6 bolts for the mounting brackets. Consider reflective surfaces that may give rise to an optical ‘short circuit’ from the direct path of the light curtain’s infrared beams as shown in the first illustration of Fig.
- Page 5 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure E shows examples of the identification labels that are affixed to the transmitter (Tx) and receiver (Rx) columns. CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
- Page 6 The L shaped 5K8 series light curtain is also known as the exit only system. There are two types of ‘L’ available, right hand (L1) and left hand (L2). The Left or right hand indicates where the User B cable is connected as shown above.
- Page 7 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure G shows the functions table for the 5K8 series Safety Outputs (F1) – 5K8 series safety light curtains have cross-monitored output switching relays mounted inside the receiver column. The output relays provide two safety ‘volt free’ forcibly guided switching contacts which are internally connected to the wires in the multi-core user cable ‘B’...
- Page 8 The lamp acts as a visual warning indicator and will be illuminated during a mute condition, i.e. pallet transfer. Mute enable input (F10) – It is a control requirement for the 5K8 series that an additional 3 mute input is provided via the conveyor run signal so as to maintain a high level of safety integrity.
- Page 9 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Activate (F13) - A push button or key switch is required, having a N/O switch contact. Connect the blue (BU) wire from the user cable (B) to one side of the switch and the other side of the switch to L- (0v dc).
- Page 10 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure H shows a diagrammatic arrangement of all the function LEDs and location on the 5K8 series safety light guard. See Fig. G above for a detailed explanation. LED Status Indicators on the R/X Green...
- Page 11 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure I shows all the input and output connections to and from the 5K8 series. The drawing also shows the wire colour coding. Please see Appendix 2 for examples of typical 5K8 series wiring configurations.
- Page 12 EDM. Is connected across the N/C contact of the FSD. If not used link the green (GN) wire to the green (GN) / red (RD) wire. All input and output connections from the Smartscan 5K8 Series are via a plug connected into the Receiver (RX) head – Cable B (User). CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated.
- Page 13 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Fig J shows the standard timer functions used in the 5K8 Series for muting and guard override applications. The timers used in cross-beam muting are also shown below. T1 (Mute Disparity Time) – The maximum time allowed between activation of signals mute 1 (M1) and mute 2 (M2).
- Page 14 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Fig. K shows the on-board dip switches for user to set the light curtain in either automatic or manual start-up. It is supplied factory set to manual restart mode. CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
- Page 15 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure L Activate and Guard Override Functions Manual Restart - At power-up or, following a tripped condition, the activate switch is used to restart (reset) the output relays to an ON state. The switch must be activated and released to enable a restart condition.
- Page 16 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure M Test and Maintenance Power-up the light curtain and activate the output switching circuits to an ON condition. Insert a test piece of appropriate size into the top light beam, 150mm from the transmitter unit. At this point the output switches will turn OFF as the test piece totally obscures the beam.
- Page 17 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure N shows an operations chart for the 5K8 series. Before installation read and understand the Installation Sheet provided paying particular attention to the information provided in Figure Refer to Figure M for test and ...
- Page 18 Figure O outlines the procedure for returning a Smartscan product. If a fault occurs that cannot be resolved or the equipment is damaged return the system to the nearest Smartscan distributor or Smartscan Ltd. Indicate the nature of the fault and the symptoms displayed on the form provided.
- Page 19 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure P shows a list of the model numbers and cable types. It describes the detection zone width (K), the maximum scanning range and weights for the 5K8 series. CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
- Page 20 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure Q shows a copy of the 5K8 series declaration of conformity. CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets supplied with the product should be referenced first for current installation information.
- Page 21 SMARTSCAN 5K8 SERIES LIGHT CURTAIN Figure R provides a glossary of words and terminology used in the Installation Sheet in a number of International languages: CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
- Page 22 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 1 Mirrors Reflector mirrors can be provided enabling two or three sides of a machine to be safeguarded with, what is effectively a single light curtain. When mirrors are employed it is essential that the mounting of the transmitter unit, receiver unit and mirrors themselves are sufficiently rigid.
- Page 23 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 1 Alignment through one mirror 1. Secure the transmitter, receiver and mirror units in the position in which they are intended to be used. 2. Ensure all units are perfectly upright in all planes by using a sprit level.
- Page 24 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 1 Alignment though two mirrors 9. Follow instruction 1-4 10. A second person must adjust the position of the first mirror to the left and to the right until the entire length of the second mirror is reflected in the first mirror.
- Page 25 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 1 16. Now turn on the power to the light curtain and check that the green LED beam indicator, mounted on the receiver unit is ‘on’. If not, it may be necessary to finely adjust each mirror in turn to ensure the infra-red energy from the transmitter unit is being reflected through the mirror(s) to the corresponding receiver unit.
- Page 26 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 2 Example 1 - Smartscan 5K8 system without muting function. Output to safety output relays K1 and K2 CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
- Page 27 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 2 Example 2 - Smartscan 5K8 system using cross beam muting. Output to safety output relays K1 and K2 CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
- Page 28 SMARTSCAN 5K8 SERIES LIGHT CURTAIN APPENDIX 2 Example 3 - Smartscan 5K8 system using cross-beam muting. Output to dual channel E-Stop CD401/130711 INSTALLATION SHEET EXPLAINED Please note that the Installation Sheet Explained documents are periodically updated. The product Installation Sheets...
