Durafly 9164000024-0 Manual

Esc programing card
Hide thumbs
1
2
3
Table of Contents

Advertisement

Quick Links

Download this manual

SPECIFICATIONS:

1. Size: 55.0mm*42.5mm*3.5mm （L*W*H）
2. Weight: 6.5g

HOW TO USE:

1. Connect the ESC to the motor.
2. Position the blue jumpers to the settings desired for each parameter.
3. Plug the ESC lead into 'ESC' terminal located on the top of the card as shown. Ensure the lead
it connected the correct way around (ground, power, signal)
4. Connect the ESC to the battery pack.
For the ESC without a built-in BEC (OPTO), you need to connect the extra power (4.8-6.0V) or
UBEC to the connector marked " - +".
5. You will hear one short beep once power is connected confirming that your settings have been
stored. If you hear a long beep (about 10 seconds), the settings are invalid and have not been
stored. Check you settings and start over.
6. Disconnect your battery pack and the programming card.
7. Your Durafly ESC is now programmed and ready to use with new settings.
ESC Programing Card Manual

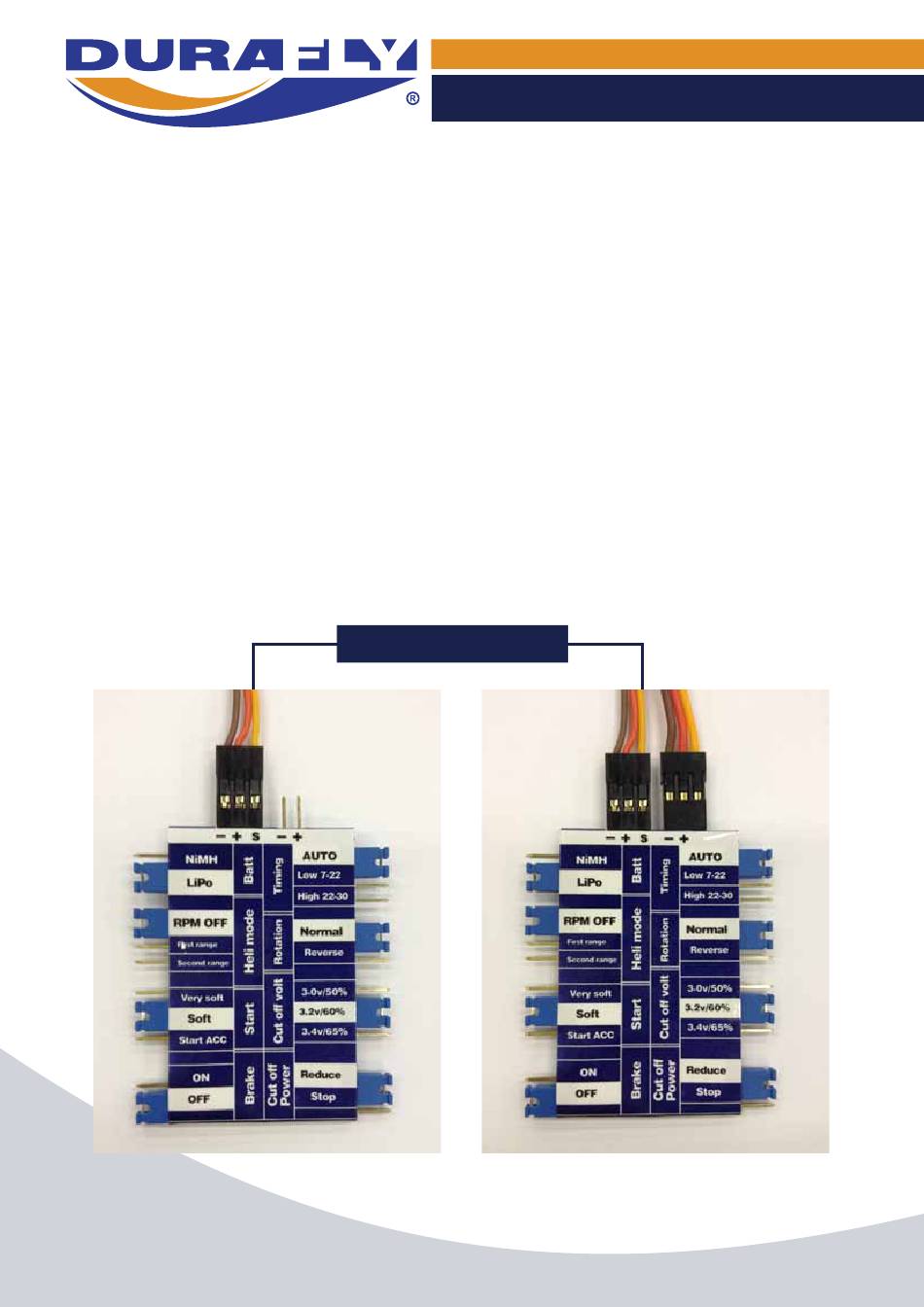

Connection Diagram
ESC
OPTO / UBEC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9164000024-0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Durafly 9164000024-0

  • Page 1 ESC Programing Card Manual SPECIFICATIONS: 1. Size: 55.0mm*42.5mm*3.5mm （L*W*H） 2. Weight: 6.5g HOW TO USE: 1. Connect the ESC to the motor. 2. Position the blue jumpers to the settings desired for each parameter. 3. Plug the ESC lead into ‘ESC’ terminal located on the top of the card as shown. Ensure the lead it connected the correct way around (ground, power, signal) 4.
  • Page 2 Durafly ESC Programing Card Manual DESCRIPTION OF SETTINGS: Battery type: LiPo or NiMh * NiMH – Sets Low Voltage protection threshold for NiCad/NiMH cells. * LiPo – Sets Low voltage protection threshold for LiPo cells and automatically detects the number of cells within the pack. Note: Selecting the NiCad/NiMH option for the battery type, triggers the ESC to automatically set the cutoff...
  • Page 3 Durafly ESC Programing Card Manual Soft Acceleration Start ups: Very Soft / Soft Acceleration/ Start Acceleration * Very Soft – Provides initial slow 1.5 sec ramp-up from start to full rpm intended to protect delicate gears from stripping under instant load. This setting is recommended for either fixed wing models equipped with gearboxes and / or helicopters.
