Taurus Silver Series Operating Manual

Footswitch Mode
9-12V
Mute
4 5
3 6
2 7
1 8
Bass engine
Rubber leg caps and velcro
are included in the package
bottom
to secure your effect
to pedal board.
Bypass
4 5
3 6
2 7
1 8
Punch
Plus
bottom Spód
Dear Friends,
We proudly introduce our new boutique line of products, the Taurus Silver Line of bass pedal effects, which
shares all Taurus's DNA and is designed to satisfy even the most demanding musicians. Our Silver Line includes four
heavy duty stomp boxes labeled Abigar (Multi-Drive), Zebu (Reverb-Delay), Vechoor (Multi Chorus-Flanger) and Tux
(Compressor-Limiter). Individually engineered with the specific objective of giving you unprecedented control over the
sound. It has been said that "Passion drives you to fulfill your dreams". Our founder, head of the corporate research and
development, sound and electronic engineer and most of all musician, is spreading his passion and dedication on all of
as. Box Electronics, makers of Taurus is fulfilling its dreams and wants to give you the tools to fulfill yours. Our passion
supported by the latest technology, best electronic components, hand crafted manufacturing and quality control process
guarantees superior quality and complete satisfaction. For the past
with the upmost professional service and the best musical gear. Try our Taurus products, you won't be disappointed.
We welcome you to our web site which has received a major face lift and has been extended to include more in
depth technical product information, links to users, applications, silver line reviews, testimonials and much more.

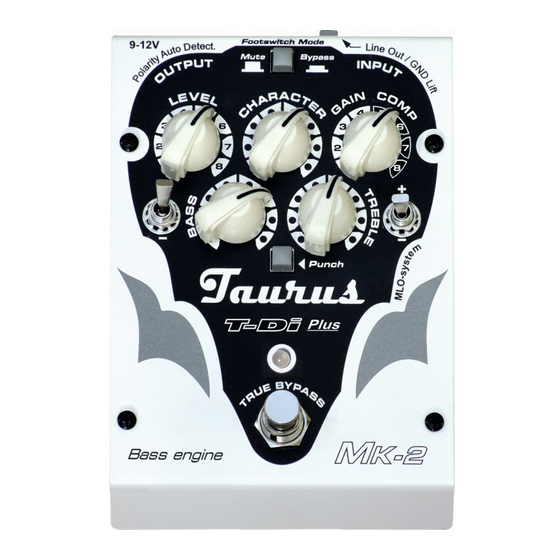

An ideal, "must have" tool for a bassist at work. The preamp with MLO tone correction plus compressor is
designed to fulfill all studio and stage needs of bass players. This is a stomp box containing the most important tools
to create perfect bass sound. Very flexible EQ section plus the compressor are providing a wide range of sound
characters and dynamic adjustments. From extremely dynamic and saturated to highly compressed , as well as the
VINTAGE type with its soft tube-overdriven character.
The Bass engine can be connected and used in different ways:
- As an additional sound module connected to the input of the amplifier
- As a preamp connected simultaneously to the amplifier and the mixer via the line-out jack / XLR
- Connected straight to the mixer as a main source of sound without necessity to use a bass amp on stage

Features:

1. INPUT - mono 1/4" (jack)
2. OUTPUT - mono 1/4" (jack)
3 . POWER SUPPLY INPUT - DC 9- V 12 Polarity supply auto detection/ connector domensions 5,5x2,1mm.
DC ASSISTANT - protects from loss of signal. Effect switches automatically to the "bypass mode" in case
of disconnection or low voltage of DC supply
Warring! Only stabilised power supply >100
4. LEVEL - knob controls overall effect volume
5. CHRACTER Blend knob " between "Vintage" & "Modern"sound.
"
6. GAIN -COMPRESSOR - input gain and compression adjustment in one knob
low frequency level control
7. BASS - with MLO system.
8. Triple BASS-switch to reduce or boost low frequency CUT/OFF/BOOST
9. TREBLE - high frequency level control with MLO system
10. Triple TREBLE-switch to reduce or boost high frequency CUT/OFF/PRESENCE
11. PUNCH - midrange effectiveness switch.
12. Footswitch Mode - bypass/mute footswitch mode selector
- footswitch mode "Mute" - utes signal m at the output. Usefull when works as a Di-box connected to mixer.
- footswitch mode „Bypass"- switches between ON and BYPASS. Usefull when works as a effect
connected to amplifier.
13. Footswitch . If it's turned off true-bypass is active.
14. OUTPUT - XLR - mixing console connection (balanced)
15. Effect „ON" indicator
16. Ground lift switch.
Thank you for your trust and for choosing Taurus Tdi-plus
30 years, our philosophy remains to provide you
(<6V) .
mA must be used
.
.
