- Page 1 Revision A, November 2020 [Type text]...

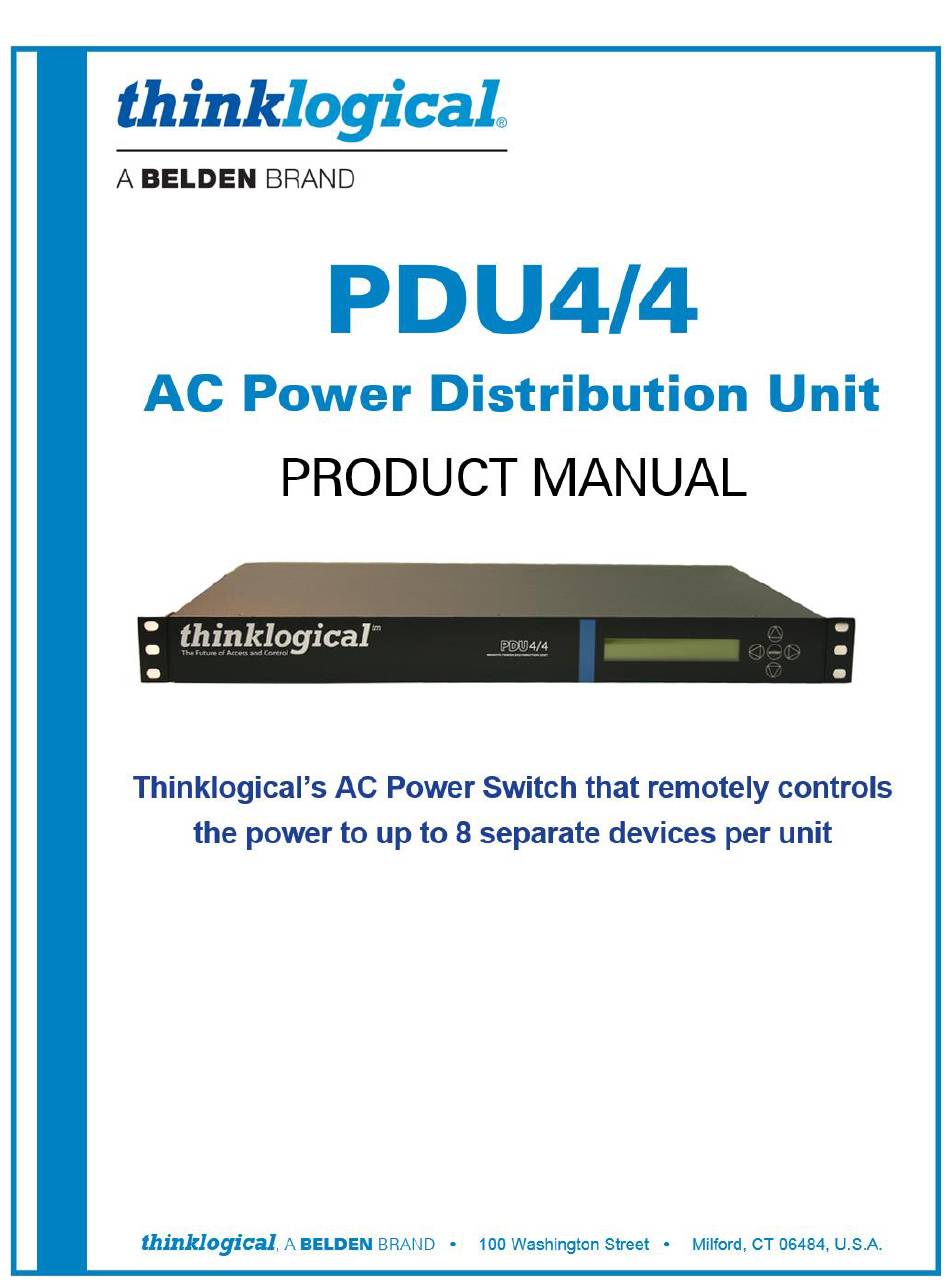

- Page 2 Copyright Notice Copyright © 2020. All rights reserved. Printed in the U.S.A. Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: PDU 4/4 AC Power Distribution Unit Product Manual...
-
Page 3: Table Of Contents
Table of Contents PREFACE .............................. 3 About Thinklogical ..........................3 Note and Warning Symbols ........................4 INTRODUCTION ......................... 4 Product Overview: The PDU4/4 ......................4 1: THE PDU 4/4 AC POWER DISTRIBUTION UNIT ..............5 Mounting The PDU 4/4 ......................... 5 Front Panel LCD and Buttons ....................... -
Page 4: Preface
Thinklogical products are designed and manufactured in the USA and are certified to the ISO 9001:2015 standard. Thinklogical is headquartered in Milford, Connecticut and is owned by Belden, Inc., St. Louis, MO (http://www.belden.com). For more information about Thinklogical products and services, please visit https://www.thinklogical.com. -
Page 5: Note And Warning Symbols
Note and Warning Symbols Throughout this document you will notice certain symbols that bring your attention to important information. These are Notes and Warnings. Examples are shown below. Note: Important Notes appear in blue text preceded by a yellow exclamation point symbol, as shown here. -
Page 6: 1: The Pdu 4/4 Ac Power Distribution Unit
Thinklogical’s easy to use PDU 4/4 Power Distribution Unit is an AC Power Switch that remotely controls the power to eight separate devices which may be switched off and on as desired. This allows system administrators, while communicating with the control terminal through a serial interface, to restart a “locked up” network device from anywhere on the network. -
Page 7: Front Panel Lcd And Buttons
Front Panel LCD and Buttons The front-panel LCD should be visible and accessible for system setup. The navigation buttons are used to configure the unit and to review existing PDU 4/4 configurations. Use the Up and Down Arrow Buttons to scroll through the Main Menus (Port Power, System). Once the main menu choice is shown on the display, press the Enter Button. -
Page 8: The Rear Panel
The Rear Panel Power Connections The rear panel features two outlet banks. Each bank consists of (1) AC Input Power Cord, (1) Power Switch/Circuit Breaker, and (4) AC Power Outlets. Bank 1 provides AC output power to Ports 1 through 4 Bank 2 provides AC output power to Ports 5 through 8 Each AC Input Power Cord is outfitted with a NEMA 5-15P plug. -
Page 9: Installation
Installation The PDU is designed to stand alone or to connect to a Refer to the Console Server Manual for Console Server Thinklogical Secure Console Server . Each device port information (available online at www.thinklogical.com ® of the Secure Console Server is a compatible RS-232 serial port designed to connect to the PDU’s CONTROL Secure IN port. -
Page 10: Program Storage
Note: If an intermediate unit in a daisy-chain of PDU 4/4’s loses power, the control and operation of the PDU 4/4 configuration is interrupted at the unit without power. Program Storage All programmed data in the PDU 4/4 is stored in non-volatile memory. In the event of a power failure, the PDU 4/4 will return each port to its previous state (on or off) when power returns to the unit. - Page 11 Command Replay Commands may be “replayed” by pressing the up arrow. HELP Command A HELP command provides a summary of the commands and syntax for the PDU 4/4. Type “help” and press Enter to access the HELP file at any time after logging in. Command Help To check the syntax of a command, type help, space, and the command name.
- Page 12 Examples: • Enable Front Panel Button control on Box 1 buttons 1 enable • Disable Front Panel Button control on all PDU 4/4s buttons 0 disable history – Display Command History The history command will show the past 16 commands. This data is not stored in non-volatile memory. PDU 4/4>...
- Page 13 Ports and Boxes may be referred to by all, name (implying a group) or number. Ranges of ports may be specified as 1-4 = 1,2,3,4. All may also be used. Any port may be referred to by either Port Numbers or Port Names. All ports with identical port names will be turned off together (as a Port Group) •...
- Page 14 reboot - Reboot Output The Reboot Output command is used to turn a port, or ports, off, and then back on. The purpose is to ‘reboot’ a server or device by cycling the power. Ports that are currently off will be turned on. Ports that are currently on will be turned off, then back on.
- Page 15 PDU 4/4> status 1 Box Number 1 Button function is Enabled Temperature is 26 degrees C Output Name Status Delay Current (mA) Port1 Port2 Port3 Port4 Port5 Port6 Port7 Port8 Bank 1 Current Approx. mA (15A Max.)=0 Bank 2 Current Approx. mA (15A Max.)=0 PDU 4/4 Product Manual, Rev.
-
Page 16: Pdu 4/4 Technical Specifications
PDU 4/4 Technical Specifications PDU 4/4 AC Power Distribution Unit Storage Temperature -20 to 70°C (-4 to 158°F), 10 to 90% RH, non-condensing Power Supply Voltage 100 to 240 VAC, 50/60 Hz Power Consumption 10 Watts, typical Heat Dissipation 34 BTUs per hour (2) AC Power Cords (2) Power Switch/Circuit Breakers (8) AC Power Outlets... -
Page 17: Symbols Found On Our Products
2. Regulatory & Safety Requirements Class 1 Laser Information Amulet Integrated Client Transmitter, like all Thinklogical fiber-optic products, is designed and identified ® as a Class 1 LASER product. This means the maximum permissible exposure (MPE) cannot be exceeded when viewing the laser with the naked eye or with the aid of typical magnifying optics (e.g. magnifying glass, etc.). -
Page 18: Australia & New Zealand
European Union, Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 USA Thinklogical’s products comply with the requirements of the Low Voltage Directive 2006/95/EC, the EMC... -
Page 19: Product Serial Number
Connection to the Product Connections and installation hardware for Thinklogical products use industry-standard devices and methods. All wiring connections to the customer equipment are designed to minimize proprietary or customized connectors and cabling. Product Serial Number / Part Number Thinklogical products have a unique serial number, which includes a date-code, printed on an adhesive label that is affixed to the unit. -
Page 20: 3: Thinklogical Support
1-203-647-8700 and let us help. If you need to write us or return a product, please use the following address: Please include the Return Merchandise Authorization number: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, CT 06460 USA Attn: RMA# PDU 4/4 Product Manual, Rev. -
Page 21: Appendix A: Pdu 4/4 Quick Start Guide
Appendix A: PDU 4/4 Quick Start Guide PDU 4/4 Product Manual, Rev. A November 2020 Page 20...
