Summary of Contents for FISIOTECH ANDROMEDA

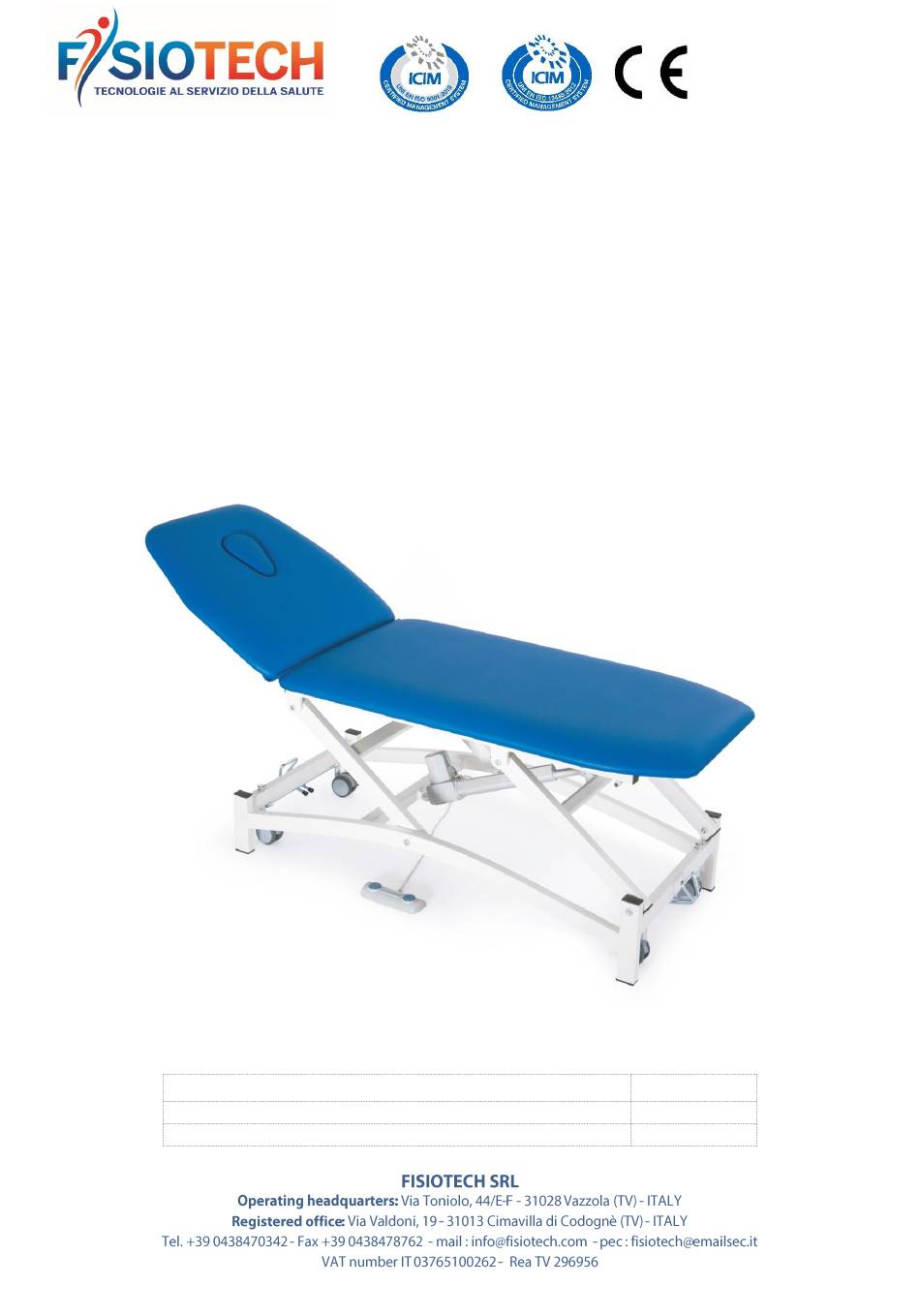

- Page 1 Rev.05 09/2020 USE AND MAINTENANCE MANUAL ANDROMEDA ANDROMEDA LARGE COUCH SIMPLE SERIES ANDROMEDA COUCH MODELS Description Code Andromeda with foot pedal 112131 Andromeda LARGE with foot pedal 112141...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION p. 3 SAFETY p. 4 WARNINGS – WARRANTY – PACKAGING – UNPACKING p. 5 PRODUCT LABEL AND SYMBOLS p. 6 TECHNICAL SPECIFICATIONS p. 7 TECHNICAL SPECIFICATIONS OF THE POWER GRID p. 8 WARNINGS p. 9 HOW TO USE THE COUCH p. -
Page 3: Introduction
In case of transfer of use to a third party, this manual must be transferred as well, along with the other documents, as provided by Council Directive 93/42/EEC. Intended use The ANDROMEDA / ANDROMEDA LARGE couch is a professional couch used by rehabilitation and physiotherapy professionals. Manufacturer’s details... -
Page 4: Safety
WARNING! Do not use the couch: Beyond its declared maximum safe working load. On unstable floors or near inclined floors, steps, etc. If it has been tampered with or modified. In a potentially explosive atmosphere where a fire hazard or corrosion may occur, or exposed to the weather. - Page 5 The ANDROMEDA / ANDROMEDA LARGE couch warranty covers only the manufacturing defects for 24 months starting from the date of delivery. The warranty does not cover: consumables and items of normal wear –...
-
Page 6: Product Label And Symbols
Manufacturer Product Code Serial Number Date of manufacture Max working load Warning Temperature limit Humidity limitation Keep away from sunlight and heat sources Keep away from rain Read the instructions This symbol on a product means that it should not be thrown with regular waste, but disposed of following the laws on recycling/disposal in force in your country/region. -
Page 7: Technical Specifications
4 cm-thick polyurethane foam fireproof padding. Density: 30 kg/m³. Fireproof leatherette upholstery. THE BASE OF THE ANDROMEDA / ANDROMEDA LARGE COUCH IS SPECIFICALLY DESIGNED SO THAT THE PATIENT HOIST CAN BE PLACED UNDER THE COUCH. 7 of 16... -
Page 8: Technical Specifications Of The Power Grid
Class II 230V 50Hz power cord. Low voltage 24V direct current motor. Low voltage 24V foot switch/hand control. Automatic limit switch. With resettable thermal fuse. WARNING! Please note that the actuator/motor should be ran intermittently: max 2 minutes on/18 minutes off. 8 of 16... -
Page 9: Warnings
WARNING The professional should be very careful: 1. Not to place his and/or the patient’s hands and/or feet in the areas highlighted by the symbols below in order so avoid pinching/crushing. 2. Not to sit on the headrest. 3. Not to sit or concentrate load on the extremities of the couch (head-/backrest – footrest). WARNING! The professional should never leave the patient unattended to prevent falls. -
Page 10: How To Use The Couch
HOW TO USE THE COUCH The height adjustment between 47 and 80 cm is carried out through the foot pedal. The headrest can be adjusted through a gas spring operated with a specific lever. In order to adjust the inclination, pull the lever (L1) and set the desired position;... - Page 11 Raising the cot sides: Lift both cot sides simultaneously and fasten them. Lowering the cot sides: Lower both sides simultaneously. COTSIDES The paper roll holder is placed under the footrest. PAPER ROLL HOLDER 11 of 16...
-
Page 12: Problems, Causes And Solutions
PROBLEM CAUSES SOLUTIONS Plug the device to a power socket The plug is not plugged in The actuator/motor abiding by the technical properly or the power is does not work specifications of the power grid out. listed on p. 8. The actuator/motor Major problem (e.g. -
Page 13: Maintenance
Maintenance must be carried out by a specialist, an electrician or someone who is familiar with the content of this manual. Check the safety conditions of the device after any incident such as falls, violent impacts, spilling of liquids, etc. and any time you deem it necessary. WARNING! Unplug the device before maintenance. -
Page 14: Cleaning
The use of disinfectants is advised in order to disinfect hands and other parts of the body that came into contact with the patient or other surfaces. WARNING! Unplug the couch before cleaning the electrical parts. Cleaning the upholstery: Clean with a damp soft cloth with a neutral detergent solution, rinse with clean water. WARNING! ... -
Page 15: Spare Parts - Optional Accessories
Wires for headrest gas spring kit GAS0000012 Mechanism to unlock all gas springs MIM1121301 Complete padding for ANDROMEDA couch MIM1121401 Complete padding for ANDROMEDA LARGE couch CODE DESCRIPTION 120010 Paper roll holder for electrical couches 120060 60cm-wide, 65mt-long double-ply paper roll... -
Page 16: Inspection Record Sheet
INSPECTION RECORD SHEET DEVICE MODEL / CODE: INSTALLATION DATE SERIAL No. ……………………………………… ……………………… ……………………. Inspection Maintenance Name of the inspector Signature Date 16 of 16...
