BER Measurement
Simple Operation Guide
(MS2830A-026, MS2840A-026)
Signal Analyzer MS2830A / MS2840A
This guide outlines operation procedures for the BER Measurement Function option for the
Signal Analyzer MS2830A and MS2840A.
At actual measurement, it may be necessary to modify the settings in accordance with the
specifications of the wireless DUT.
Read the following manuals for details of the functions, settings range and procedures.
MS2830A Signal Analyzer Operation Manual Mainframe Operation
MS2840A Signal Analyzer Operation Manual Mainframe Operation
Chapter 8 BER Measurement Function
BER Measurement Setup
DUT
RF Signal (Wanted Waveform)
BER DATA
BER CLK
BER ENABLE
J1556A Labels
Signal Analyzer MS2830A, MS2840A
(Back Panel: AUX Connector)
AUX Conversion Adapter J1556A
User Guide
Advertisement
Table of Contents
Related Manuals for Anritsu MS2830A-026
Summary of Contents for Anritsu MS2830A-026

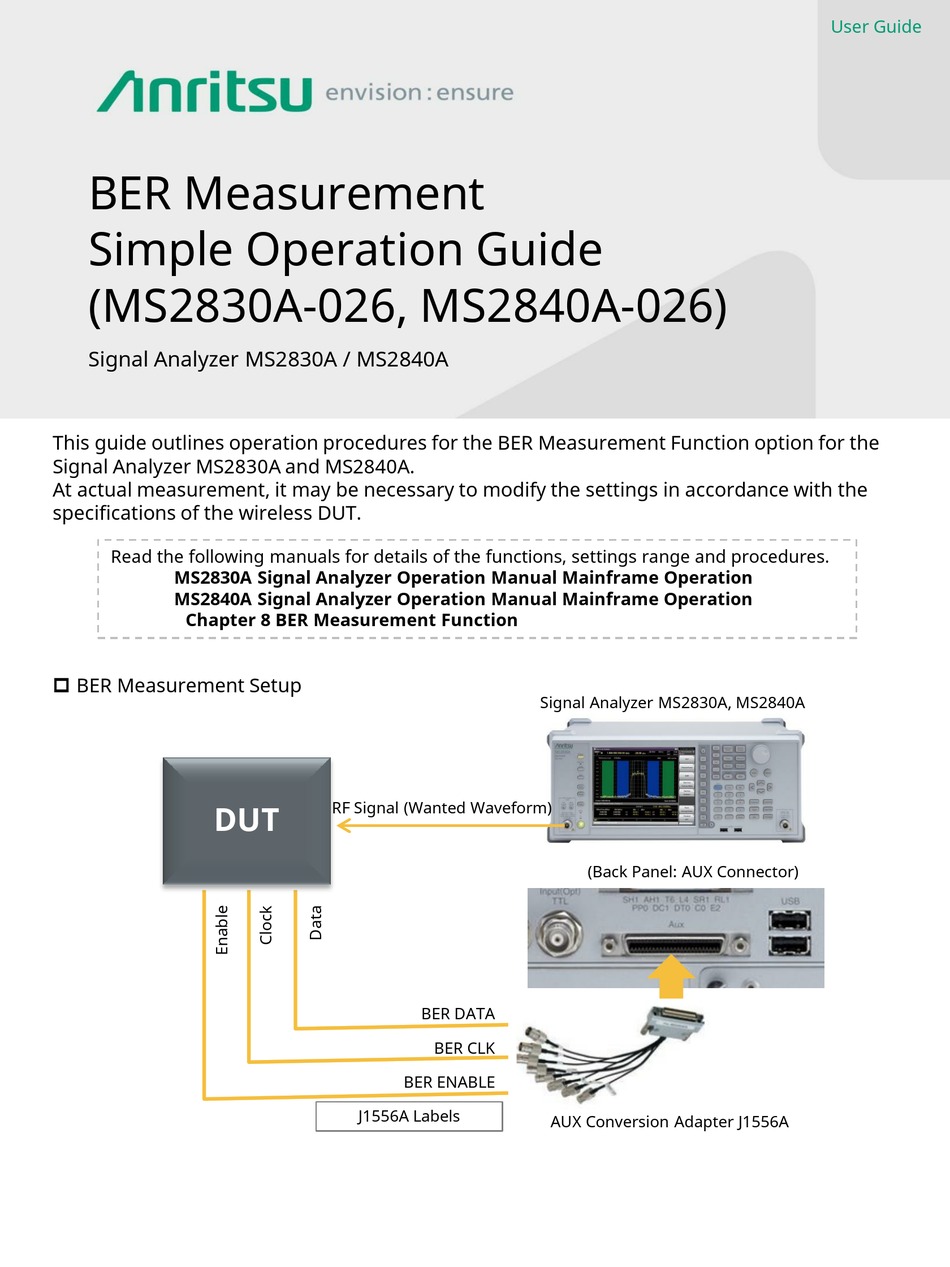

- Page 1 User Guide BER Measurement Simple Operation Guide (MS2830A-026, MS2840A-026) Signal Analyzer MS2830A / MS2840A This guide outlines operation procedures for the BER Measurement Function option for the Signal Analyzer MS2830A and MS2840A. At actual measurement, it may be necessary to modify the settings in accordance with the specifications of the wireless DUT.
- Page 2 ① [Procedure] ① Press [Application Switch]. ② Enable the BER function by pressing [Fx: BER Test]. (Page 1) ③ Select [F6: Data Type] (Ex. PN9). ④ Select [F7: Measure Mode] (Ex. Continuous). ⑤ Select [F8: Count Mode] (Ex. Data, 1000 bit). *The BER result is displayed for each set data bit count.
