Summary of Contents for PCM Apex Junior

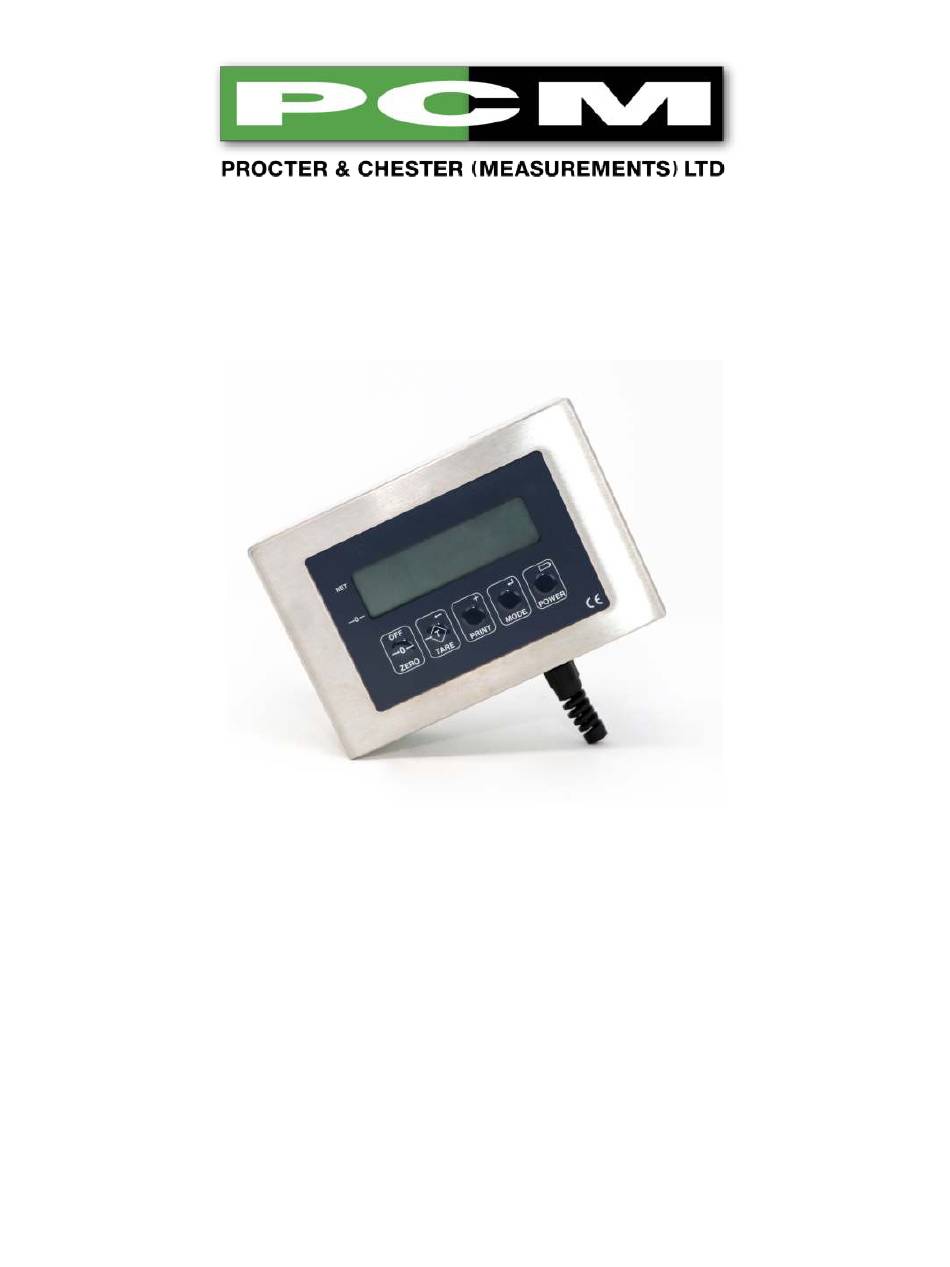

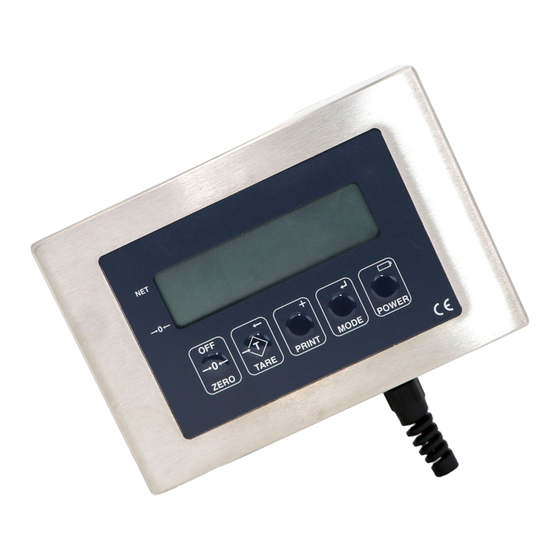

- Page 1 USER MANUAL Apex Junior Cased Weighing Indicator/Controller Document Version: JG8-101215 Software Version: H (Board revision 1.4 onwards) APPROVED DISTRIBUTORS OF: Electronic Weighing Services...
- Page 2 Section 1 SETTI NG UP I NSTRUCTI ONS WARNI NG: ALWAYS ENSURE THAT THE POWER I S DI SCONNECTED BEFORE REMOVI NG COVER. a. SETTI NG UP: Load Cells. The load cell connector is a seven way screw terminal connector: Cable Screen Negative Sense + SE...
-
Page 3: Setti Ng Up: Ti Me And Date
c. SETTI NG UP: SERI AL CONNECTI ONS - Printer Signal Ground RS232C Output RS232C I nput (Busy) Serial Protocol RS232C (+ / - 10v) 8 Data Bits 1 Stop Bit No Parity Baud Rate: Selectable ASCI I Printer Requirements: 40 column RS232C compatible. - Page 4 Section 2 CALI BRATI ON. Press and hold the ZERO key and then press the POWER key, when the display indicate “888888” release the ZERO key and the display will prompt ‘DP 0000’ and the last decimal point setting. To alter the decimal point setting press the PRI NT key until the required position is indicated, once selected press MODE to accept.
-
Page 5: Menu Settings
Section 3 MENU SETTI NGS The unit may be user configured for certain functions this is set via a code input. To access the code hold the TARE key whilst restoring power, when the display shows 888888 release the TARE key. A 5 digit numeric code number will be displayed prefixed by an alpha character that records the build version for information purposes only. - Page 6 Section 4 USER I NSTRUCTI ONS 1. STANDARD WEI GH MODE ZERO: references the display to zero TARE: the first press of this key tares the display the second press clears the tare. A symbol in the far left of the display indicates if a tare is present.
-
Page 7: Relay Functi Ons
Section 4 Continued… 7. RELAY FUNCTI ONS The unit may be user configured for several relay options. Ensure that the necessary hardware options are installed i.e. 1 or 2 relays. The relays are solid state devices. These relays are rated at a maximum of 100mA at 24vdc. Connections to the relays are via terminal connections close to the devices designated 1 &... -
Page 8: Specifications
Section 5 SPECI FI CATI ONS Display: 6 digits, 18mm high LCD or LED displays Membrane: Polyester, tactile action. Enclosure: Splash proof, 165mm x 110mm x 60mm High Grade Stainless Steel. Operating Temperature: -10 to + 40 degrees C Load cell Capability: Up to 8 x 300R load cells Conversion: 24bit Sigma Delta A-D. - Page 9 Section 7 EC Declaration of Conformity E.M.C. STANDARD EN61326 CLASS A Elect r on ic W eigh in g Ser v ices Lim it ed Lytton Street, Stoke on Trent. Staffordshire. ST4 2AG Declare under our sole responsibility that the products: JUNI OR DWT EXCELSI OR DWT To which this declaration relates is in conformity with the following transposing...
