CarDAQ-M
J2534-1&2 Module
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CarDAQ-M J2534-1&2 Module and is the answer not in the manual?

Questions and answers

Summary of Contents for Drew Technologies CarDAQ-M J2534-1&2 Module

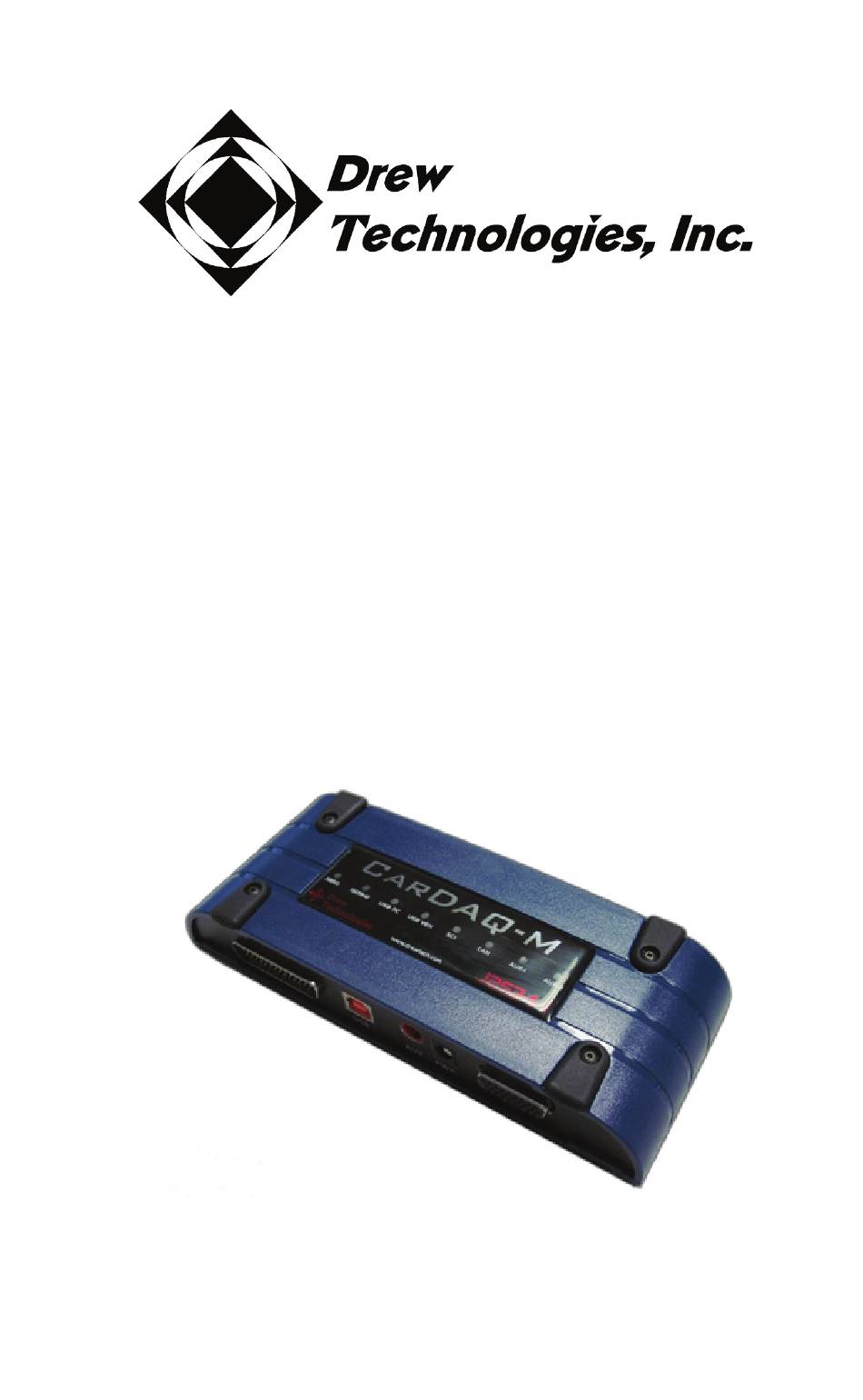

  • Page 1 CarDAQ-M J2534-1&2 Module Quick Start Guide...
  • Page 2 Drew Technologies will not be held responsible for ANY direct, indirect or consequential damage that arises as a result of using CarDAQ-M on a vehicle.

  • Page 3: Table Of Contents

    Contents CONTENTS ........................3 1. INTRODUCTION......................4 COPYRIGHTS & TRADEMARKS ................4 2. GETTING TO KNOW CARDAQ-M..............4 DAQ-M E ..............4 XPANSION ODULES 3. SETTING UP THE CARDAQ-M................5 DAQ-M S PC ........5 NSTALLING THE OFTWARE TO YOUR DAQ-M..........6 DDING AN XPANSION ODULE TO 4.

  • Page 4: Introduction

    J2534 Toolbox application. Copyrights & Trademarks Copyright 1999-2014 Drew Technologies, Inc., All Rights Reserved. Mongoose Pro, CarDAQ, DashDAQ, ScanDAQ, CarDAQ2534, and J2534 ToolBox are registered trademarks of Drew Technologies, Inc. All other trademarks and brand names are the property of their respective owners.

  • Page 5: Setting Up The Cardaq-M

    Setting up the CarDAQ-M Do not connect the CarDAQ-M to your PC until you have installed the software below. Installing the CarDAQ-M Software to your PC Insert the CD that came with your CarDAQ-M into the CD/DVD slot of your PC. Make sure your CarDAQ-M is not connected to the PC at this point.

  • Page 6: Adding An Expansion Module To Cardaq-M

    a. The “Found New Hardware Wizard” will pop up when you connect your CarDAQ-M. b. Make sure “No, not this time” is selected and click [Next]. This screen appears: c. Select “Install the software automatically (Recommended)” and click [Next]. After the progress bar finishes, click [Finish].

  • Page 7: The Capabilities Of J2534 And Cardaq-M

    Use the J2534 Toolbox for more information on the capability provided from each manufacturer. J2534 ToolBox™ The J2534 ToolBox is a program created by Drew Technologies to help distribute current information to technicians working with J2534. The J2534 ToolBox...
  • Page 8 As you work through the registration process fill out all information completely and correctly. Step 1 (Personal Information) of the registration will require you to fill out information regarding your J2534 Toolbox account. Step 2 (Business Information) will require some information about your business.

  • Page 9: J2534 Toolbox Resources

    Step 4 (Registration Confirmation) confirms your J2534 Toolbox account. Your CarDAQ M has now been registered. All features of the J2534 Toolbox will now be available to you. Remember to save your login information so that you can login quickly. If you lose your login information you will need to click on “Forgot Password?”...

  • Page 10: Updating The Cardaq-M Drivers On Your Pc

    Updating the CarDAQ-M Drivers on your PC Unplug CarDAQ-M’s cable from your PC before completing the steps below. To update the CarDAQ-M drivers on your PC: 1. Open your web browser and go to the downloads page at www.drewtech.com 2. Determine if your computer is running a 32 or 64 bit version of Microsoft Window.

  • Page 11: Specifications

    Specifications J2534-1&2 Modules Supported Protocols  CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)  2nd CAN (Dual or Single Wire)  Ford SCP (J1850PWM)  GM Class2 (J1850VPW)  KWP2000 (ISO9141/14230)  Chrysler SCI (J2610) Compliant to SAE J2534 (Feb 2002) and SAE J2534-1...

  • Page 12: Connectors And Status Indicators

    Connectors and Status Indicators PC Connection Panel Ports and their functions: Expansion A and B: Future PC connection options. USB: For a direct to PC USB connection. AUX: External programming voltage supply. For use on some vehicles that have special programming needs. PWR: External power option which maybe needed for future expansion modules.

  • Page 13: If All Else Fails

    Limited Warranty Drew Technologies, Inc. guarantees that every CarDAQ M is free from physical defects in material and workmanship under normal use for one year from the date of purchase. IN NO EVENT SHALL DREW TECHNOLOGIES, INC.'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT.
  • Page 14 Notes:...
  • Page 15 Notes:...

  • Page 16: Other Drew Tech Products

    Other Drew Tech Products Drew Technologies has several products available for data acquisition, diagnostics, development, testing, and reprogramming for modern vehicles. Visit www.drewtech.com for more information CarDAQ-Plus™ - Fully SAE J2534 compliant. Ethernet and USB connectivity to a computer, a built-in operating system for running internal programs, protocol support for all modern vehicles, and six analog inputs.
