CIAudio VDC 7 MKII Quick Start Manual

High current upgrade power supply

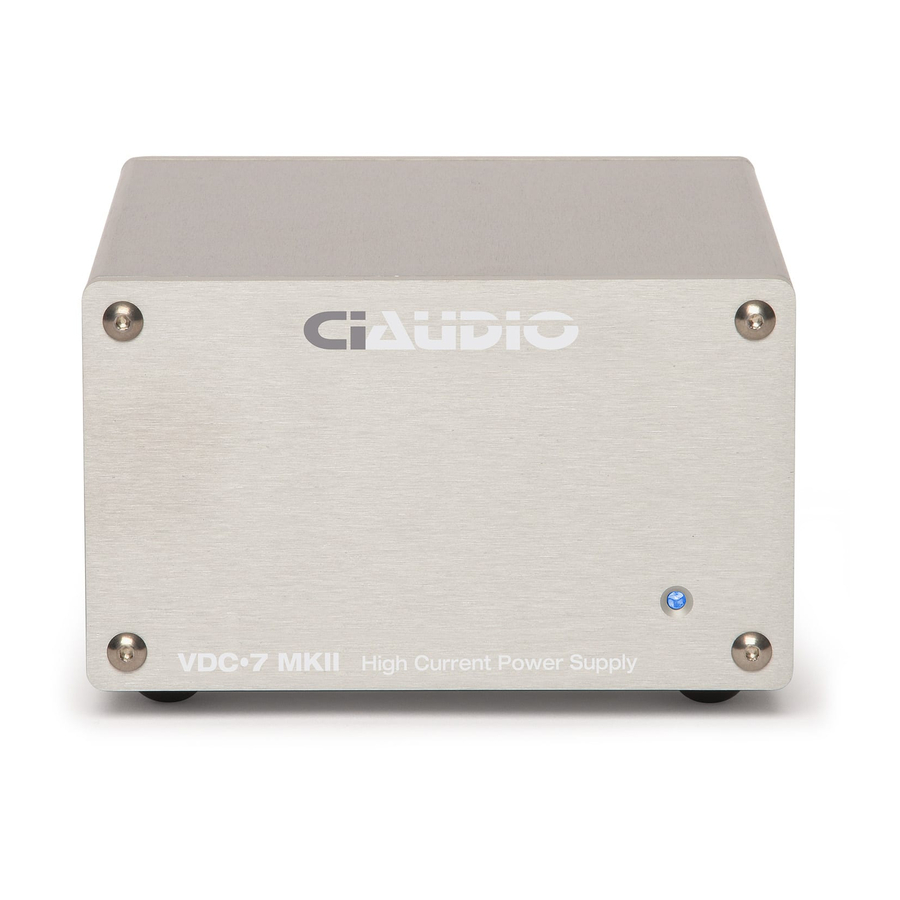

VDC7 MKII High Current Upgrade Power Supply

Thank you for purchasing the VDC7 MKII High Current Upgrade Power Supply.

Please read the Connection sections of this document before installing into your playback

system.

The VDC7 MKII is a low noise high performance power supply designed to improve the sound

of many audio products. The VDC Series are tightly regulated "Linear" supplies rather than

standard "switching" types, as switching types generate noise which can contaminate audio

signals. The design uses a high quality transformer, discrete Schottky bridge rectifier, and low-

noise filter/regulator circuit, providing clean, noise-free power.

handcrafted in USA

Table of Contents

Need help?

Do you have a question about the VDC 7 MKII and is the answer not in the manual?

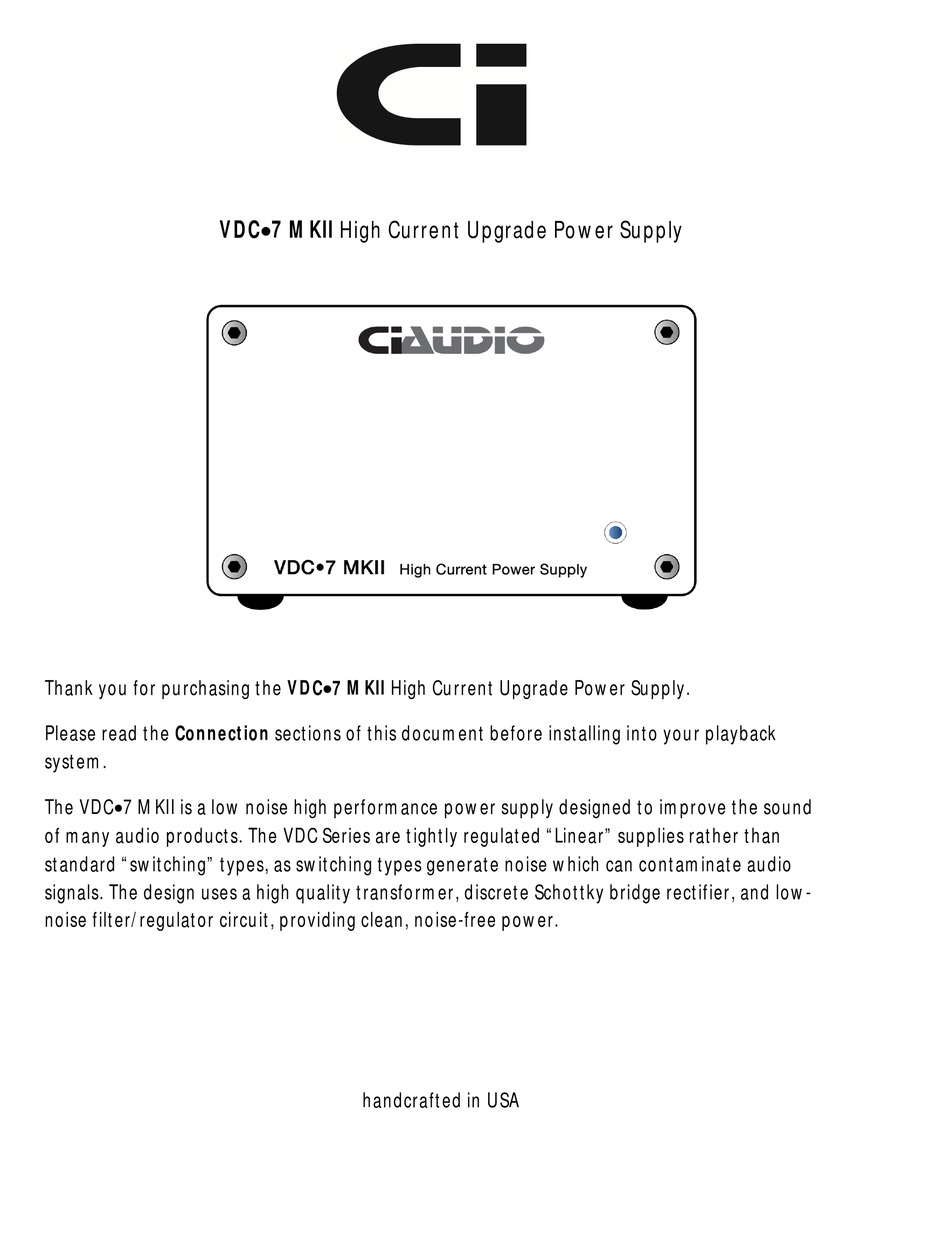

Page 1 VDC7 MKII High Current Upgrade Power Supply Thank you for purchasing the VDC7 MKII High Current Upgrade Power Supply. Please read the Connection sections of this document before installing into your playback system. The VDC7 MKII is a low noise high performance power supply designed to improve the sound of many audio products.
Page 2 Connection  Input Voltage Selection Input voltage comes pre-configured for the country originally shipped to. If the input voltage needs to be changed, jumpers can be re-configured on the internal selection plug. To access the jumper selection, you must remove the PCB from it’s chassis. Remove the 4 corner screws on the back panel and the single screw on the bottom.
Page 3 Installation is simple...just replace the standard supply with VDC•7 MKII and supplied cables, and power ON from the rear panel power switch. If using with a product not listed above, contact CIAudio regarding compatibility and output cables.  Power Up Always mute, turn volume all the way down, or select another input before powering up or down via the rear panel power switch.
